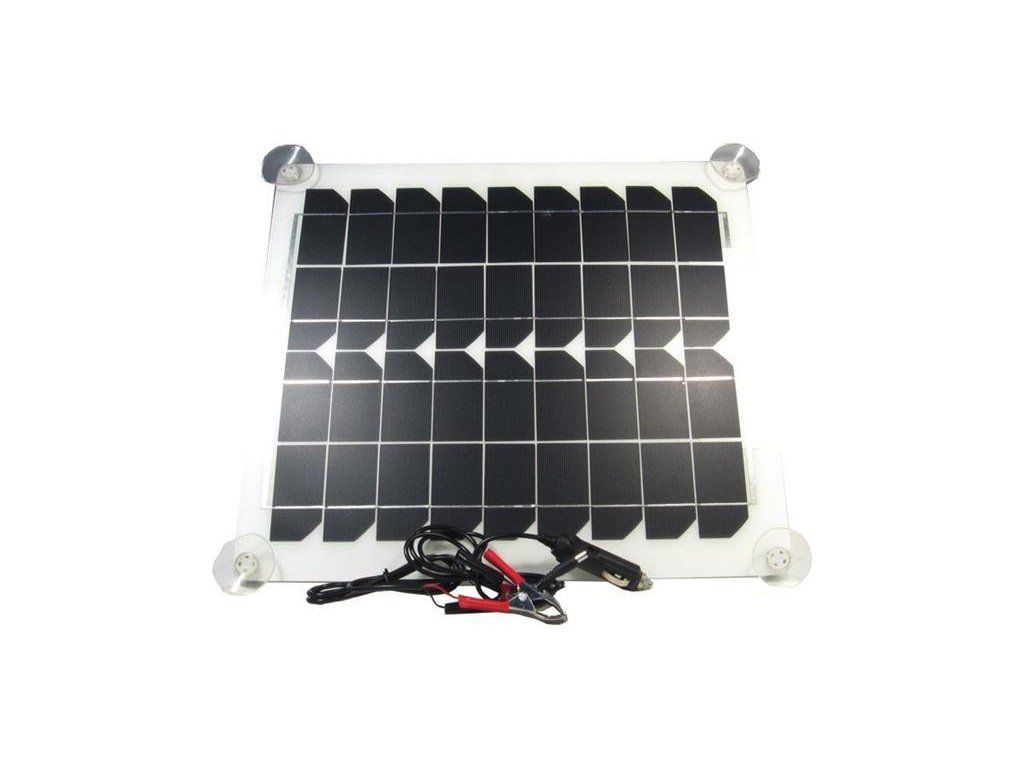

Solar panel USB+ 12V/30W flexible OS30-18MFX
Code: TI_04280079Product detailed description
Photovoltaic solar panel USB+12V/30W flexible OS30-18MFXFlexible monocrystalline panel with 12V and USB output for charging batteries, phones, powerbanks, etc. The ideal solution for your car battery in the event of extended vehicle downtime, when permanently connected appliances such as the control unit, car radio or remote control can drain the starter battery in as little as a week. Plug the supplied cable into a 12V socket (permanent connection to the battery required, not an ignition switch), place the panel behind the window using suction cups and your battery will be supplied with the necessary energy to compensate for the consumption of the connected devices and self-discharge. The panel can also be used as a backup power supply for charging phones, powerbanks etc.
Technical parameters:
Max.power: 30 W
Max. current at full power (Imp): 1.67 A
Max output voltage at full power (Vmp): 18 V
Output for 12V battery charging: voltage Vmp-max.18 V
USB output: max.5.1V / 2.1A
LED light: on at maximum illumination, flashing at low illumination
Dimensions: 420 × 370 × 2mm
Contents of the package:
1×Flexible panel
4 × removable suction cup
1 × 12V cable with auto connector
1 × 12V cable with terminals
Warning:
The PV panel is equipped with a step-down converter to power the USB output, the controller does not have a 12V output. However, with regard to the panel's performance, you can connect a battery above 30Ah directly and permanently without risk of damaging it. For a battery up to 30Ah and only in case of long term illumination, use any PWM controller. For several hours even the smallest batteries can be connected without a regulator. The charging current will be max. 1,67A.
Additional parameters
| Category: | Flexible solar panels |
|---|---|
| EAN: | 8596425100453 |
| EAN: | 8596425100453 |
