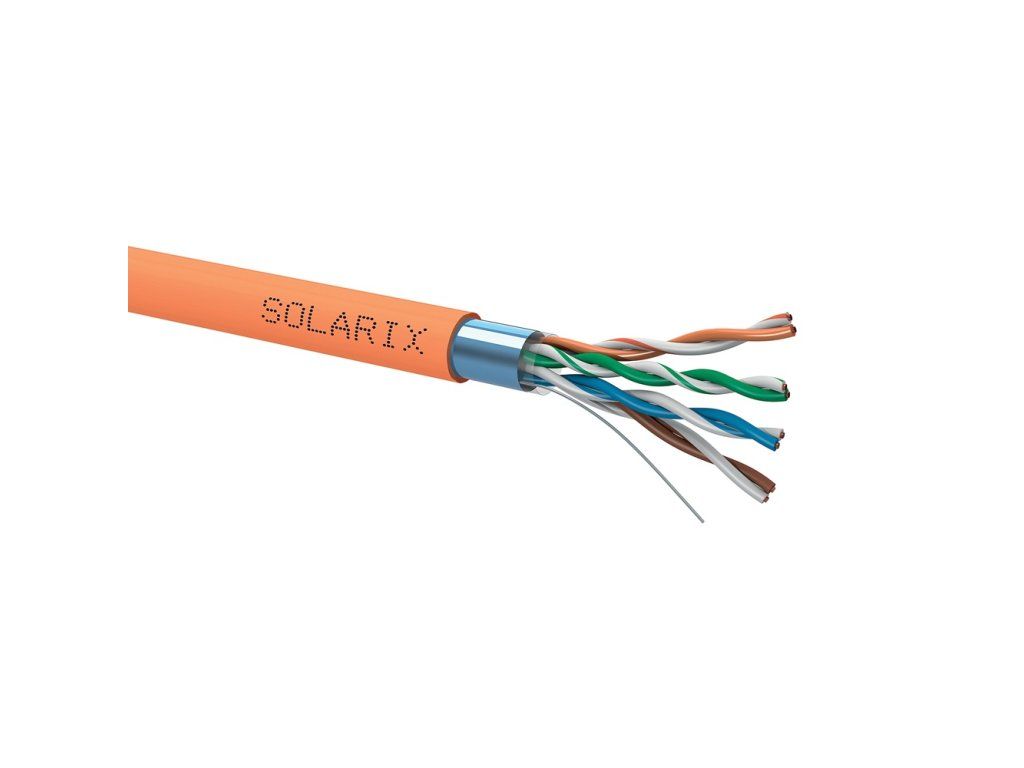

Solarix cable CAT5E FTP LSOHFR B2ca-s1,d1,a1 500m SXKD-5E-FTP-LSOHFR-B2ca

Product detailed description

The Solarix installation cable, labeled SXKD-5E-FTP-LSOHFR-B2ca, is a reliable Category 5E shielded cable that is designed to run Ethernet protocols, including 2.5GBASE-T and 5GBASE-T*. The cable construction is F/UTP, LSOHFR jacket type with a reaction to fire class B2ca-s1,d1,a1. The cable conductors are made of high quality copper wire with 99.97% copper purity. The cable easily meets the requirements of the international standards ISO/IEC 11801, EN 50173 and ANSI/TIA 568.2-D. In the case of CPR (EU Regulation No. 305/2011), the cable is tested by the independent laboratory FORCE CERTIFICATION in the AVCP 1+ performance assessment system and also complies with Decree No. 23/2008 and Decree No. 268/2011 of the Ministry of the Interior of the Czech Republic on technical conditions for fire protection of buildings and is suitable for the uses corresponding to a cable with this class of reaction to fire, which are defined in Annex 2 of these Decrees. Like the other Solarix cables, the SXKD-5E-FTP-LSOHFR-B2ca cable is marked with a meter gauge of 1 m in the range from 0 to 500 m. The cable is supplied on a high-strength wooden spool on which all necessary product information is provided, including barcodes, production batch, description and the most important technical parameters. Technical parameters - CAT5E - Supported protocols: 2.5/5GBASE-T and below - Shielding: foil around all 4 pairs - Bandwidth: 100 MHz - Conductor type and size: 0, 50 mm AWG 24 copper wire - Insulation and conductor diameter with insulation: polyethylene 1, 0 mm - Class of reaction to fire; sheath type: B2ca-s1,d1, a1; LSOHFR - Sheath colour: orange RAL 2003 - Nominal cable diameter: 6, 3 mm - Weight: 46 kg/km - NVP: 68 % - Propagation delay : 535 ns/100 m - Delay skew: ?45 ns/100 m - Storage temperature: -20 °C to 60 °C - Operating temperature: -20 °C to 60 °C - Installation temperature: 0 °C to 50 °C - Packaging: 500 m, wooden coil - Package dimensions (diameter x height): 380 mm x 320 mm
