Solarix cable CAT5E FTP wire 305m LSOH, SXKD-5E-FTP-LSOH

Product detailed description

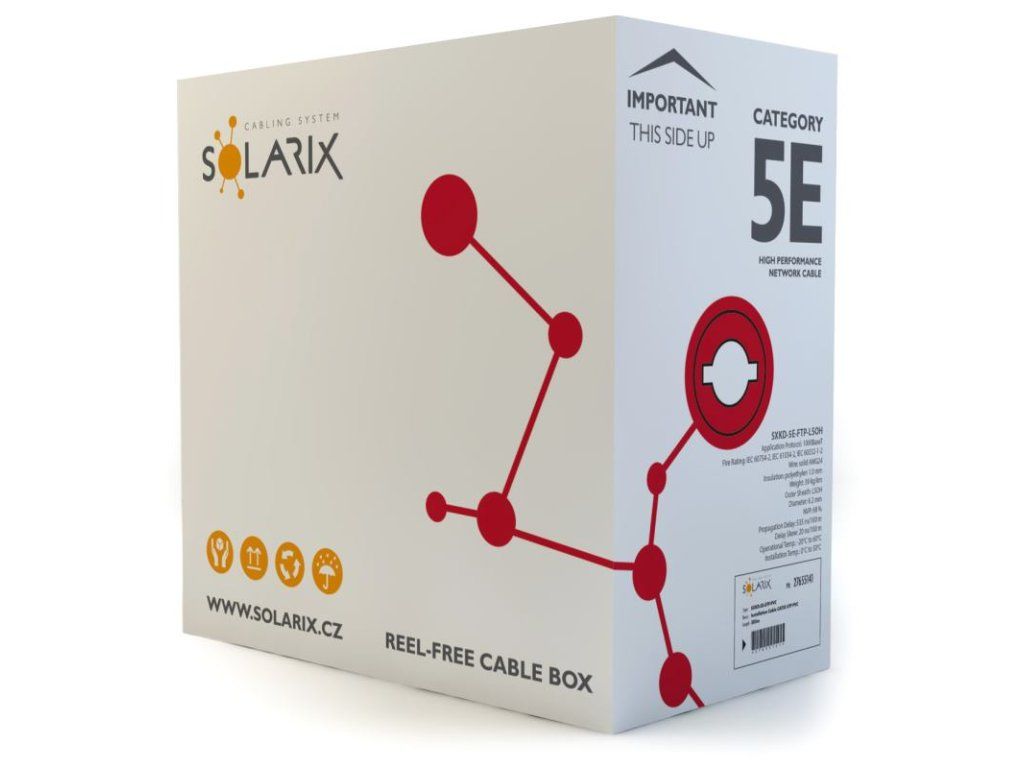

This installation cable, labeled SXKD-5E-FTP-LSOH, is a reliable part of the Solarix CAT5E product line. Together with the other components of the Solarix structured cabling system, it creates a solution that guarantees long life, maximum performance and trouble-free operation of your computer network. Solarix Category 5E installation cables are designed for horizontal distribution and are offered in shielded and unshielded versions with different sheath types - i.e. PVC, LSOH or UV stable PE. These cables seamlessly meet the requirements defined in the international standards ANSI/TIA/EIA 568, ISO/IEC 11801 and EN 50173 for category 5E and are also suitable for data transmission speeds up to 1 Gbps (i.e. gigabit Ethernet). Like other Solarix cables, the SXKD-5E-FTP-LSOH cable is marked with meter gauges in 1m increments ranging from 0 to 305m. The cable is supplied in a highly durable three-layer polished cardboard box (always colour-coded according to the cable type), on which all necessary product information is provided, including barcodes, production batch, description and the most important technical parameters (e.g. NVP in the form of a QR code). Category: CAT5E Supported protocols: 1000BaseT Shielding: foil around all 4 pairs Bandwidth: 100 MHz Conductor : AWG 24 copper wire Insulation: polyethylene 1, 0 mm Sheath : LSOH Colour: purple Cable diameter: 6, 2 mm Weight: 39 kg/km NVP: 68 % Propagation delay: 535 ns/100m Delay skew: 20 ns/100m Storage temperature: -20°C to 60°C Operating temperature: -20°C to 60°C Installation temperature: 0°C to 50°C Solarix LSOH installation cables meet the following standards A) Acidity of gases produced during combustion IEC 60754-2: Test on gases evolved during combustion of electric cables - Part 2: Determination of degree of acidity of gases evolved during the combustion of materials taken from electric cables by measuring pH and conductivity EN 50267-2-2: Common test methods for cables under fire conditions - Tests on gases evolved during combustion of materials taken from cables - Part 2-2: Procedures - Determination of the degree of acidity of gases during combustion of cable materials by measuring pH and conductivity EN 50267-2-3: Common test methods for cables under fire conditions - Tests for gases evolved during combustion of cable materials - Part 2-3: Procedures - Determination of the degree of acidity of gases during combustion of cable materials by determining the weighted average pH and conductivity of composite materials (B) Smoke density IEC 61034-2: Measurement of smoke density of cables burning under defined conditions - Part 2: Test procedure and requirements IEC 61034-2: Measurement of smoke density of cables burning under defined conditions - Part 2: Test procedure and requirements (This standard has superseded EN 50268-2) (C) Flame retardancy/flame spread of single insulated cables IEC 60332-1-2: Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame EN 60332-1-2: Tests on electrical and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW mixed flame (replaced by this standard EN 50265-2-1)
