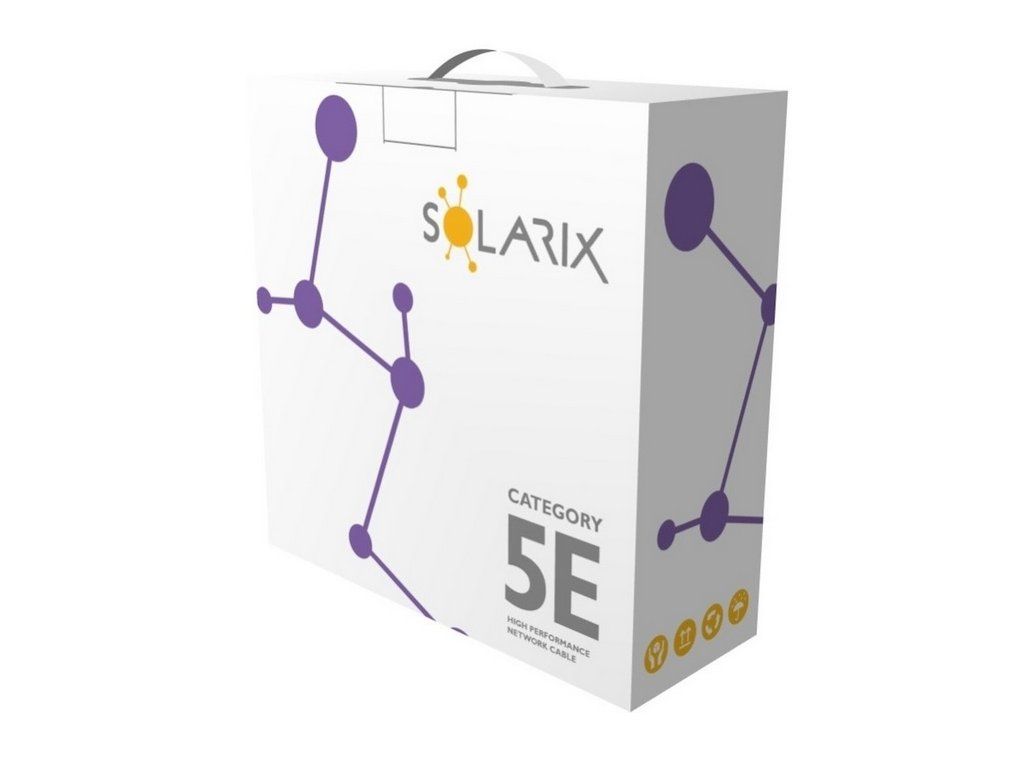

Solarix cable CAT5E UTP wire 100m LSOH, SXKD-5E-UTP-LSOH

Product detailed description

This installation cable (so-called wire cable), labeled SXKD-5E-UTP-LSOH, is a reliable part of the Solarix product line - CAT5E. Together with other components of the Solarix structured cabling system, it creates a solution that guarantees long life, maximum performance and trouble-free operation of computer and telecommunications networks. Solarix - CAT5E installation cables are designed for horizontal distribution and are offered in shielded and unshielded versions with different types of sheaths - i.e. PVC or LSOH. These cables seamlessly meet and above all exceed the requirements defined in the international standards TIA/EIA 568, EN 50173 and ISO 11801 for CAT5E and are therefore suitable for the operation of even the most demanding protocols designed for structured cabling (e.g. Gigabit Ethernet). The cables are marked with a meter gauge of 1 m. Solarix LSOH installation cables meet the following standards: A) Acidity of combustion gases IEC 60754-2: Test on gases evolved during combustion of electric cables - Part 2: Determination of degree of acidity of gases evolved during the combustion of materials taken from electric cables by measuring pH and conductivity EN 50267-2-2: Common test methods for cables under fire conditions - Tests on gases evolved during combustion of materials taken from cables - Part 2-2: Procedures - Determination of the degree of acidity of gases during combustion of cable materials by measuring pH and conductivity EN 50267-2-3: Common test methods for cables under fire conditions - Tests for gases evolved during combustion of cable materials - Part 2-3: Procedures - Determination of the degree of acidity of gases during combustion of cable materials by determining the weighted average pH and conductivity of composite materials (B) Smoke density IEC 61034-2: Measurement of smoke density of cables burning under defined conditions - Part 2: Test procedure and requirements IEC 61034-2: Measurement of smoke density of cables burning under defined conditions - Part 2: Test procedure and requirements (This standard has superseded EN 50268-2) (C) Flame retardancy/flame spread of single insulated cables IEC 60332-1-2: Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame EN 60332-1-2: Tests on electrical and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW mixed flame (replaced by this standard EN 50265-2-1) Parameters and specifications: Category: CAT5E Highest supported protocol: 1000BaseT Shielding: no Bandwidth: 100 MHz Conductor: 0, 50 mm AWG 24 copper wire Insulation: polyethylene 0, 88 mm Sheath: LSOH Colour: purple Cable diameter: 5, 0 mm Weight: 30 kg/km NVP: 68 % Propagation delay: 535 ns/100m Delay skew: 20 ns/100m Storage temperature: -20°C to 60°C Operating temperature: -20°C to 60°C Installation temperature: 0°C to 50°C
