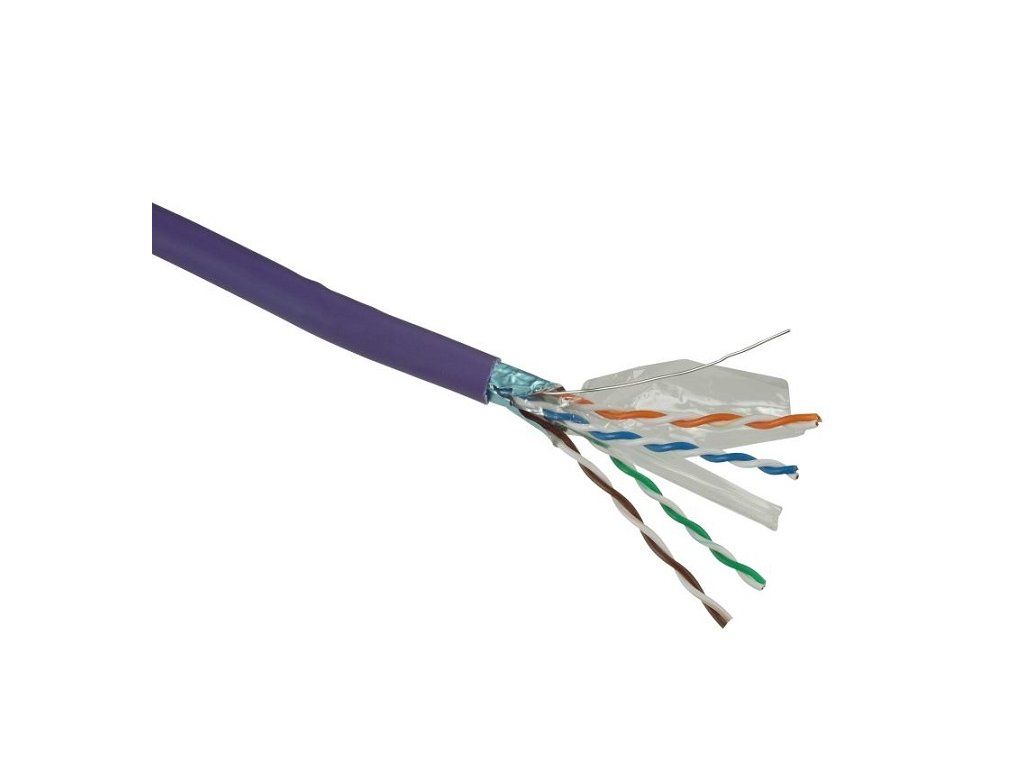

Solarix cable CAT6 FTP wire 500m spool LSOH, SXKD-6-FTP-LSOH

Product detailed description

CAT6 Highest supported protocol: 1000BaseT, 1000BaseTX The highest theoretical speed that can be achieved on the cable Shielding: foil around all 4 pairs Bandwidth: 250 MHz Available bandwidth Conductor: 0.58 mm AWG 23 copper wire Conductor type and diameter Insulation: polyethylene 1, 06 mm Insulation type and diameter Sheath: LSOH Sheath type Colour: purple Cable diameter: 6, 9 mm Weight: 41 kg/km NVP: 69% Nominal Velocity of Propagation - the ratio of the speed of the signal in the cable to the speed of light in % Propagation delay: 427 ns/100 m Signal delay per pair Delay skew: 12 ns/100 m Signal delay difference between the fastest and slowest pair Storage temperature: -20°C to 60°C Operating temperature: -20°C to 60°C Installation temperature: 0°C to 50°C This installation cable from the Solarix - Category 6 product line, labeled SXKD-6-FTP-LSOH, is a high quality cable designed for horizontal structured cabling that easily meets and exceeds the requirements specified in the international standards ANSI/TIA/EIA 568, ISO/IEC 11801 and EN 50173 including all the latest Category 6 amendments. Solarix - Category 6 cables are available in shielded and unshielded versions with different sheath types - i.e. PVC, LSOH or UV stable PE. The conductors of these cables are made of high quality copper wire of AWG 23. The individual pairs are separated by a plastic cross. Like other Solarix cables, the SXKD-6-FTP-LSOH cable is marked with meter marks in 1m increments ranging from 0 to 500m. The cable is supplied on a high-strength wooden spool, on which all necessary product information is provided, including barcodes, production batch, description and the most important technical parameters (e.g. NVP in the form of a QR code). Solarix LSOH installation cables meet the following standards: A) Acidity of gases produced during combustion IEC 60754-2: Test on gases evolved during combustion of electric cables - Part 2: Determination of degree of acidity of gases evolved during the combustion of materials taken from electric cables by measuring pH and conductivity EN 50267-2-2: Common test methods for cables under fire conditions - Tests on gases evolved during combustion of materials taken from cables - Part 2-2: Procedures - Determination of the degree of acidity of gases during combustion of cable materials by measuring pH and conductivity EN 50267-2-3: Common test methods for cables under fire conditions - Tests for gases evolved during combustion of cable materials - Part 2-3: Procedures - Determination of the degree of acidity of gases during combustion of cable materials by determining the weighted average pH and conductivity of composite materials (B) Smoke density IEC 61034-2: Measurement of smoke density of cables burning under defined conditions - Part 2: Test procedure and requirements IEC 61034-2: Measurement of smoke density of cables burning under defined conditions - Part 2: Test procedure and requirements (This standard has superseded EN 50268-2) (C) Flame retardancy/flame spread of single insulated cables IEC 60332-1-2: Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame EN 60332-1-2: Tests on electrical and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW mixed flame (replaced by this standard EN 50265-2-1)
