Solarix cable CAT6 UTP wire 305m LSOH, SXKD-6-UTP-LSOH

Product detailed description

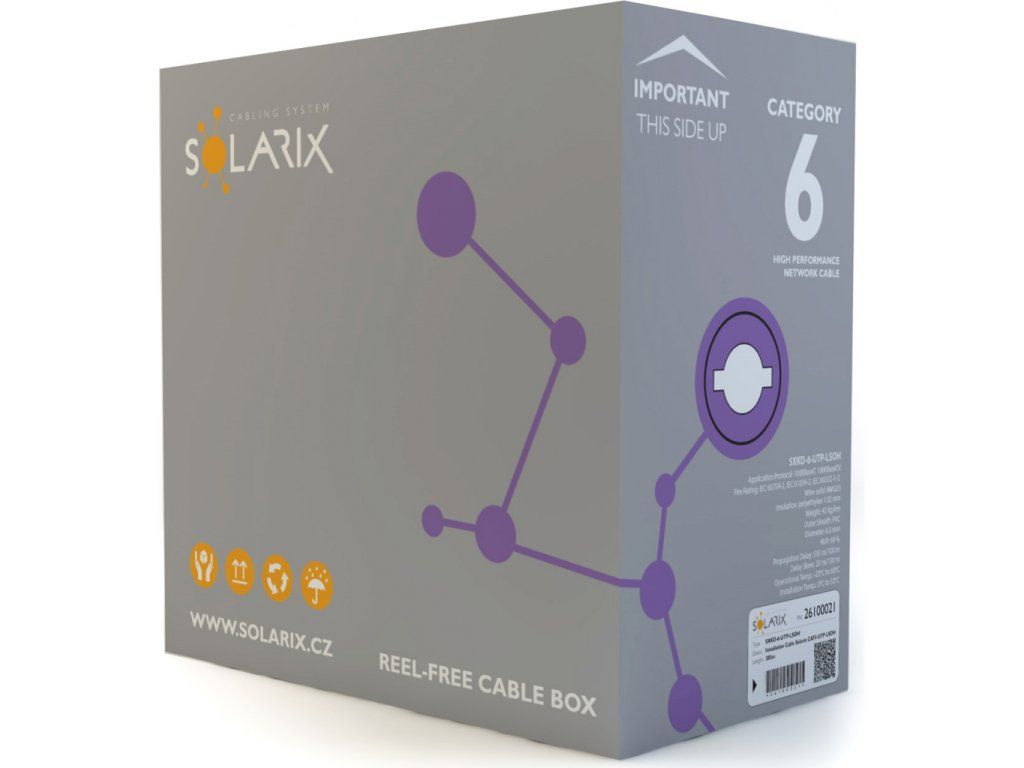

This installation cable from the Solarix - Category 6 product line, labeled SXKD-6-UTP-LSOH, is a high quality cable designed for horizontal structured cabling that easily meets and exceeds the requirements specified in the international standards ANSI/TIA/EIA 568, ISO/IEC 11801 and EN 50173 including all the latest Category 6 amendments. Solarix - Category 6 cables are available in shielded and unshielded versions with different sheath types - i.e. PVC, LSOH or UV stable PE. The conductors of these cables are made of high quality copper wire of AWG 23. The individual pairs are separated by a plastic cross. Like other Solarix cables, the SXKD-6-UTP-LSOH cable is marked with meter markings in 1m increments ranging from 0 to 305m. The cable is supplied in a highly durable three-layer polished cardboard box on which all necessary product information is provided, including barcodes, batch, description and the most important technical parameters (e.g. NVP in the form of a QR code). CAT6 Supported protocols: 1000BaseT, 1000BaseTX Shielding: no Bandwidth: 250 MHz Conductor: AWG 23 copper wire Insulation: polyethylene 1, 02 mm Sheath: LSOH Colour: purple Cable diameter: 6, 3 mm Weight: 42 kg/km NVP: 69 % Propagation delay: 535 ns/100 m Delay skew: 20 ns/100 m Storage temperature: -20°C to 60°C Operating temperature: -20°C to 60°C Installation temperature: 0°C to 50°C Solarix LSOH installation cables meet the following standards A) Acidity of gases produced during combustion IEC 60754-2: Test on gases evolved during combustion of electric cables - Part 2: Determination of degree of acidity of gases evolved during the combustion of materials taken from electric cables by measuring pH and conductivity EN 50267-2-2: Common test methods for cables under fire conditions - Tests on gases evolved during combustion of materials taken from cables - Part 2-2: Procedures - Determination of the degree of acidity of gases during combustion of cable materials by measuring pH and conductivity EN 50267-2-3: Common test methods for cables under fire conditions - Tests for gases evolved during combustion of cable materials - Part 2-3: Procedures - Determination of the degree of acidity of gases during combustion of cable materials by determining the weighted average pH and conductivity of composite materials (B) Smoke density IEC 61034-2: Measurement of smoke density of cables burning under defined conditions - Part 2: Test procedure and requirements IEC 61034-2: Measurement of smoke density of cables burning under defined conditions - Part 2: Test procedure and requirements (This standard has superseded EN 50268-2) (C) Flame retardancy/flame spread of single insulated cables IEC 60332-1-2: Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame EN 60332-1-2: Tests on electrical and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW mixed flame (replaced by this standard EN 50265-2-1)
