Solarix cable CAT6 UTP wire 305m PVC, SXKD-6-UTP-PVC

Product detailed description

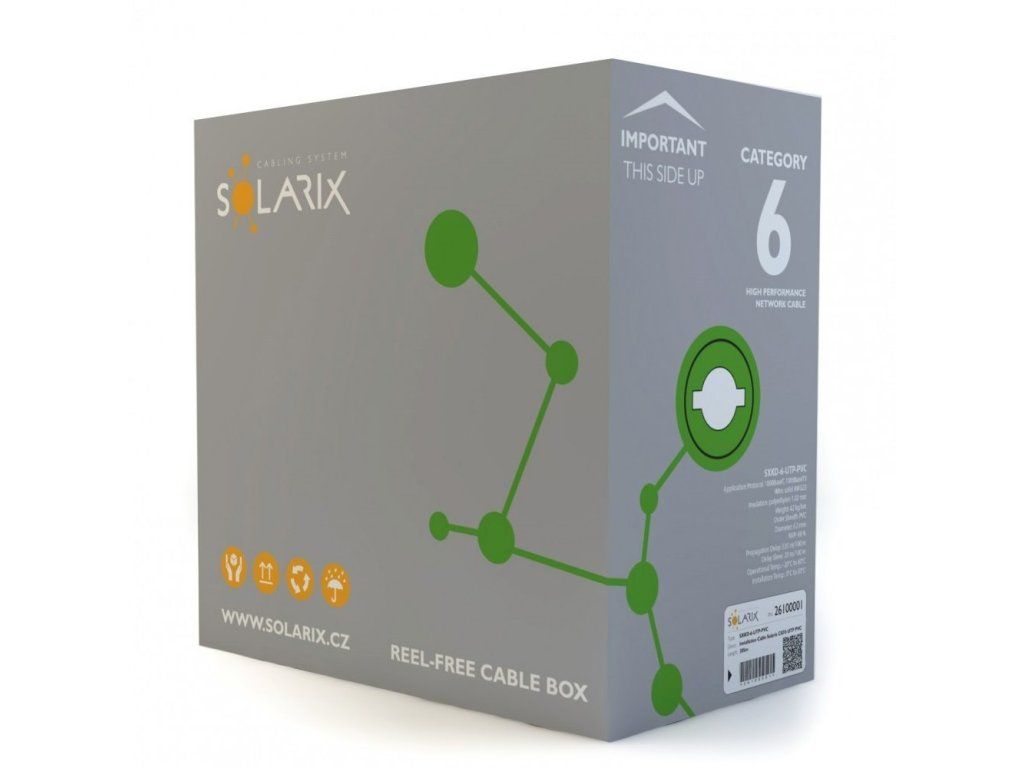

This installation cable from the Solarix - Category 6 product line, labeled SXKD-6-UTP-PVC, is a high quality cable designed for horizontal structured cabling that easily meets and exceeds the requirements specified in the international standards ANSI/TIA/EIA 568, ISO/IEC 11801 and EN 50173 including all the latest Category 6 amendments. Solarix - Category 6 cables are available in shielded and unshielded versions with different sheath types - i.e. PVC, LSOH or UV stable PE. The conductors of these cables are made of high quality copper wire of AWG 23. The individual pairs are separated by a plastic cross. Like other Solarix cables, the SXKD-6-UTP-PVC cable is marked with meter markings in 1m increments ranging from 0 to 305m. The cable is supplied in a highly durable three-layer polished cardboard box on which all necessary product information is provided, including barcodes, batch, description and the most important technical parameters (e.g. NVP in the form of a QR code). Product parameters: CAT6 Supported protocols: 1000BaseT, 1000BaseTX Shielding: no Bandwidth: 250 MHz Conductor: AWG 23 copper wire Insulation: polyethylene 1, 02 mm Sheath: PVC Colour: grey Cable diameter: 6, 3 mm Weight: 42 kg/km NVP: 69 % Propagation delay: 535 ns/100 m Delay skew: 20 ns/100 m Storage temperature: -20°C to 60°C Operating temperature: -20°C to 60°C Installation temperature: 0°C to 50°C
