Solarix cable CAT6 UTP wire 500m coil PE outdoor, SXKD-6-UTP-PE

Product detailed description

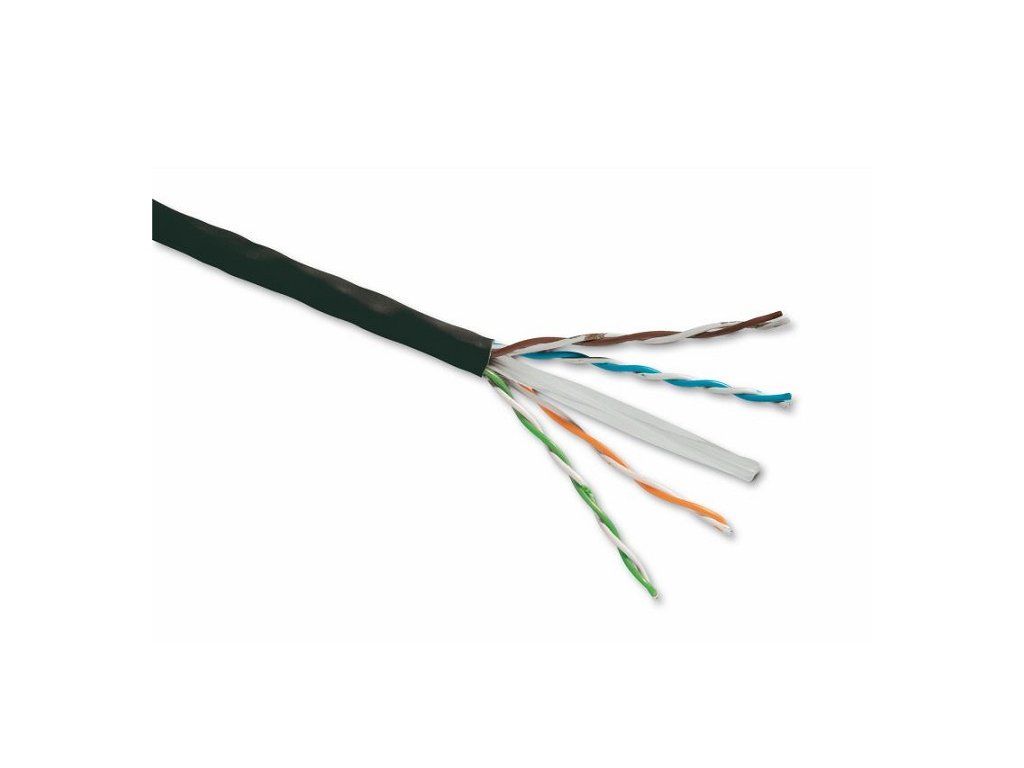

This installation cable from the Solarix product line - category 6 with the designation SXKD-6-UTP-PE is an outdoor unshielded cable with polyethylene sheath, which is designed for more demanding installations where a conventional data cable with PVC or LSOH sheath does not provide sufficient protection against environmental influences. The cable seamlessly meets and exceeds the requirements specified in the international standards ANSI/TIA/EIA 568, ISO/IEC 11801 and EN 50173 including all the latest additions for Category 6. Solarix - Category 6 cables are available in shielded and unshielded versions with different jacket types - i.e. PVC, LSOH or UV stable PE. The conductors of these cables are made of high quality copper wire of AWG 23. The individual pairs are separated by a plastic cross. Like other Solarix cables, the SXKD-6-UTP-PE cable is marked with meter markings in 1m increments ranging from 0 to 500m. The cable is supplied on a high-strength wooden spool, on which all necessary product information is provided, including barcodes, production batch, description and the most important technical parameters (e.g. NVP in the form of a QR code). Parameters and specifications: Category: CAT6 Supported protocols: 1000BaseT, 1000BaseTX Shielding: foil around all 4 pairs Bandwidth: 250 MHz Conductor: 0, 565 mm AWG 23 copper wire Insulation: polyethylene 1, 09 mm Sheath: PE Colour: black Cable diameter: 6, 3 mm Weight: 42 kg/km NVP: 69 % Propagation delay: 535 ns/100 m Delay skew: 20 ns/100 m Storage temperature: -20°C to 70°C Operating temperature: -20°C to 70°C Installation temperature: 0°C to 50°C
