Solarix cable CAT6 UTP wire 500m coil PVC, SXKD-6-UTP-PVC

Product detailed description

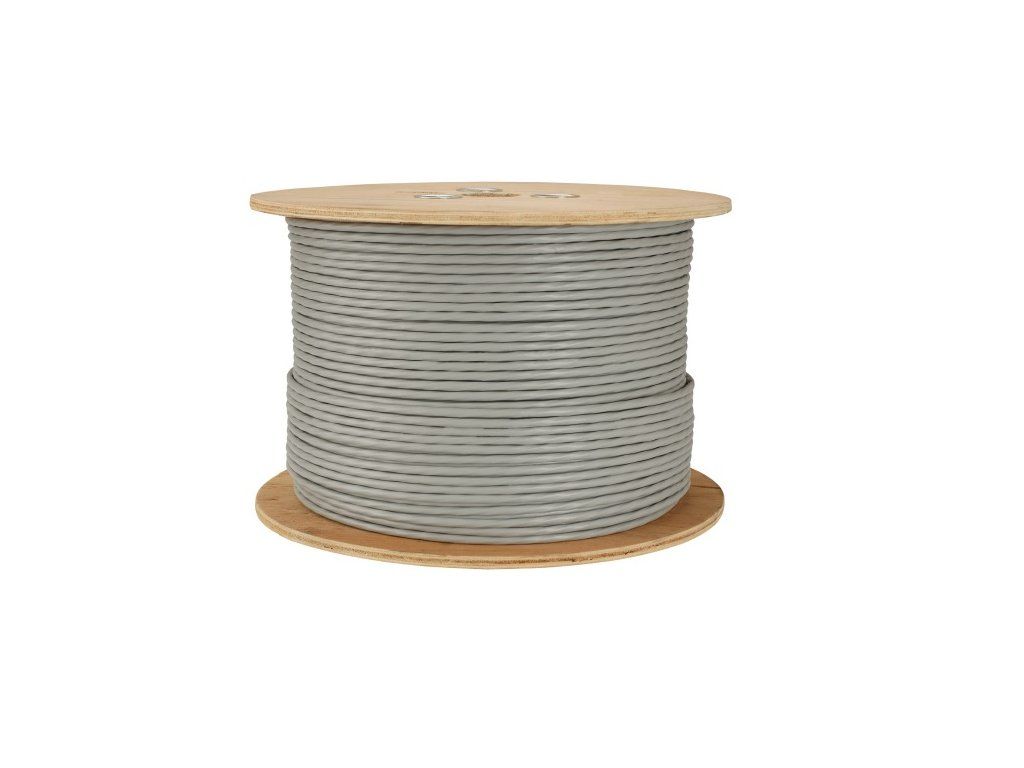

This installation cable from the Solarix - Category 6 product line, labeled SXKD-6-UTP-PVC, is a high quality cable designed for horizontal structured cabling that easily meets and exceeds the requirements specified in the international standards ANSI/TIA/EIA 568, ISO/IEC 11801 and EN 50173 including all the latest Category 6 amendments. Solarix - Category 6 cables are available in shielded and unshielded versions with different sheath types - i.e. PVC, LSOH or UV stable PE. The conductors of these cables are made of high quality copper wire of AWG 23. The individual pairs are separated by a plastic cross. Like other Solarix cables, the SXKD-6-UTP-PVC cable is marked with meter markings in 1m increments ranging from 0 to 500m. The cable is supplied on a high-strength wooden spool, on which all necessary product information is provided, including barcodes, production batch, description and the most important technical parameters (e.g. NVP in the form of a QR code). Parameters and specifications: Category: CAT6 Highest supported protocol: 1000BaseT, 1000BaseTX Shielding: no Bandwidth : 250 MHz Conductor : 0, 565 mm AWG 23 copper wire Insulation : Polyethylene 1, 02 mm Sheath : PVC Colour : grey Cable diameter : 6, 3 mm Weight : 42 kg/km NVP: 69 % Propagation delay : 535 ns/100 m Delay skew : 20 ns/100 m Storage temperature : -20°C to 60°C Operating temperature: -20°C to 60°C Installation temperature: 0°C to 50°C
