Solarix cable CAT7A SSTP wire 500m LSOHFR B2ca-s1,d1,a1 1200 MHz, SXKD-7A-1200-SSTP-LSOHFR-B2ca

Product detailed description

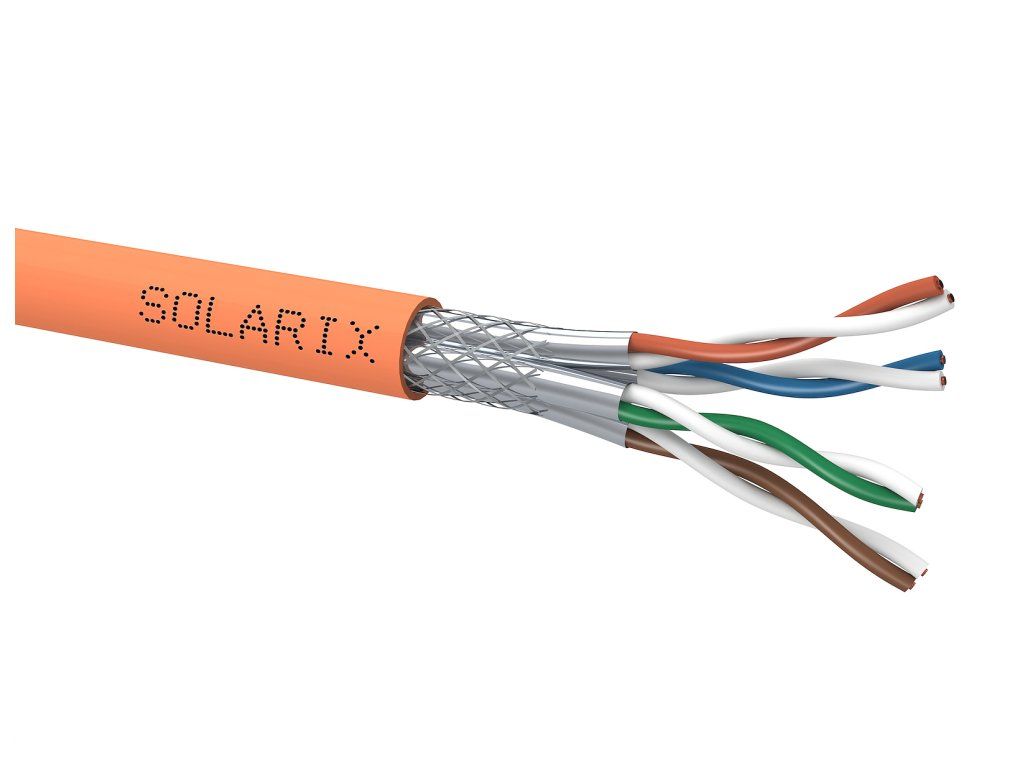

The Solarix installation cable, labeled SXKD-7A-1200-SSTP-LSOHFR-B2ca, is a high quality double shielded Category 7A cable that is tested up to 1200 MHz bandwidth and is designed for high speed Ethernet protocols, including 10GBASE-T. The cable construction is S/FTP, LSOHFR jacket type with a reaction to fire class B2ca-s1,d1,a1. The cable conductors are made of high quality copper wire with 99.97% copper purity. The cable easily meets the requirements of the international standards ISO/IEC 11801 and EN 50173. The performance parameters of this cable have been tested by the independent testing laboratory FORCE TECHNOLOGY within the EC Verified program to the highest level, the Component Level. The certificate is available here on the website under "Downloads" or directly on the FORCE laboratory website. In the case of CPR (EU Regulation No. 305/2011), the cable is tested by the independent FORCE CERTIFICATION laboratory in the AVCP 1+ performance assessment system and also complies with Decree No. 23/2008 and Decree No. 268/2011 of the Ministry of the Interior of the Czech Republic on technical conditions for fire protection of buildings and is suitable for the uses corresponding to the cable with this reaction to fire class, which are defined in Annex 2 of these Decrees. Like the other Solarix cables, the SXKD-7A-1200-SSTP-LSOHFR-B2ca cable is marked with a meter gauge of 1 m in the range from 0 to 500 m. The cable is supplied on a high-strength wooden spool, on which all necessary product information is provided, including barcodes, production batch, description and the most important technical parameters. Technical parameters: CAT7A Supported protocols: 10GBASE-T and below Shielding: foil around each pair and braid Bandwidth: tested up to 1200 MHz Conductor type and size: copper wire 0.58 mm ± 0.005 mm Insulation and conductor diameter with insulation: skin-foam-skin PE 1, 35 mm Class of reaction to fire; sheath type: B2ca-s1,d1,a1; LSOHFR Sheath colour: orange RAL 2003 Nominal cable diameter: 7, 8 mm Weight: 61, 65 kg/km NVP: 79 % Propagation delay: 480 ns/100 m Delay skew: 25 ns/100 m Storage temperature: -20 °C to 60 °C Operating temperature: -20 °C to 60 °C Installation temperature: 0 °C to 50 °C Packaging: 500 m, wooden coil Package dimensions (diameter x height): 380 mm x 390 mm Number of packs per pallet: 27 coils
