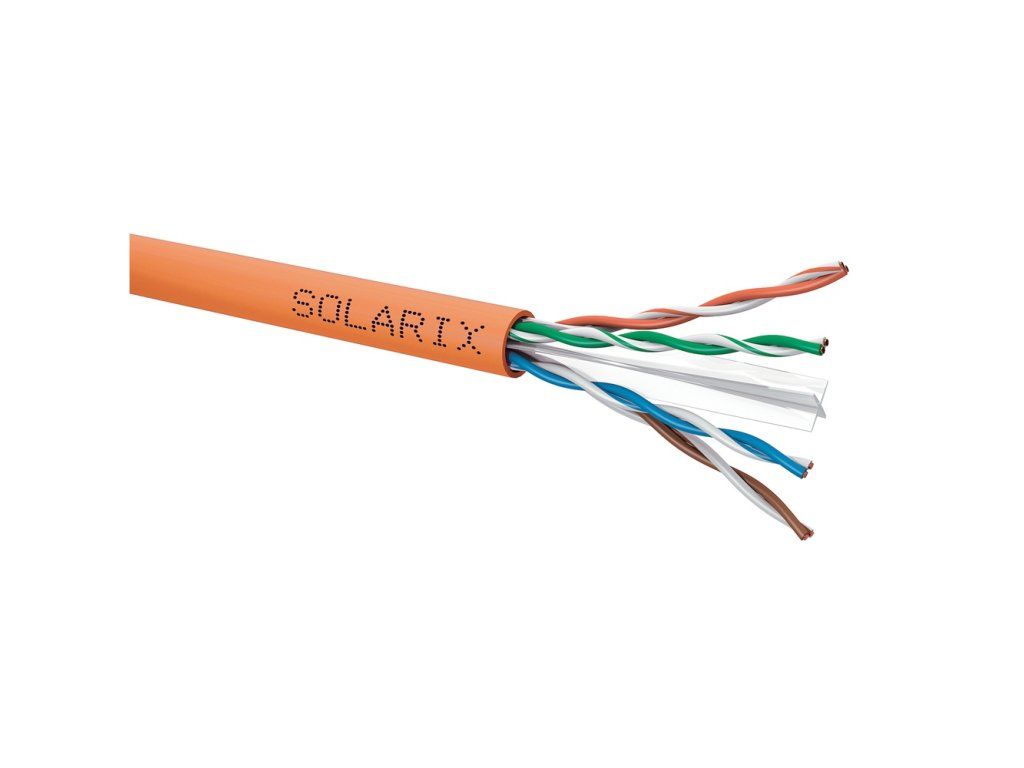

Solarix installation cable CAT6 UTP LSOHFR B2ca s1 d1 a1 500m, SXKD-6-UTP-LSOHFR-B2ca

Product detailed description

The Solarix installation cable with the designation SXKD-6-UTP-LSOHFR-B2ca is a high quality unshielded four-pair cable of category 6 with LSOHFR sheath and reaction to fire class B2ca s1 d1 a1. This cable complies with the Decree of the Ministry of Interior of the Czech Republic No. 23/2008 and Decree No. 268/2011 on technical conditions of fire protection of buildings and is suitable for the uses corresponding to the cable with this reaction to fire class, which are defined in Annex No. 2 of the above mentioned Decrees. This Solarix cable has been tested by a notified body in accordance with EU Regulation 305/2011 (CPR) under the Assessment and Verification of Stability of Performance System 1+ (AVCP 1+). The cable conductors are made of high quality copper wire with AWG 23. The individual pairs of category 6 cables are separated by a plastic cross. The SXKD-6-UTP-LSOHFR-B2ca cable is marked with a continuous meter gauge of 1 m and is supplied on a high strength wooden reel on which all necessary product information is provided, including bar codes, production lot, description and the most important technical parameters. The sheath colour of this category 6 cable is RAL 2003 orange. Solarix installation cables with reaction to fire class B2ca s1 d1 a1 and LSOHFR sheaths meet the standards: A) Acidity of gases produced during combustion IEC 60754-2: Test on gases evolved during combustion of electric cables - Part 2: Determination of degree of acidity of gases evolved during the combustion of materials taken from electric cables by measuring pH and conductivity EN 60754-2: Test for gases evolved during combustion of materials taken from cables - Part 2: Determination of acidity (by measuring pH) and conductivity B) Smoke density IEC 61034-2: Measurement of smoke density of cables burning under defined conditions - Part 2: Test procedure and requirements EN 61034-2: Measurement of smoke density of cables burning under defined conditions - Part 2: Test procedure and requirements C) Flame retardancy/flame spread of single insulated cables IEC 60332-1-2: Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame EN 60332-1-2: Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW mixed flame (D) Regulation 305/2011 (CPR) EN 50575:2014 including Supplement A1:2016: Power, control and communication cables - Cables for general use in buildings in relation to reaction to fire requirements. Parameters and specifications: Category: CAT6 Supported protocols: 2.5/5GBASE-T and below Shielding: no Bandwidth: 250 MHz Conductor type and size: copper wire 0.55 mm ± 0.005 mm Insulation and wire diameter with insulation: HDPE 0, 98 mm Class of reaction to fire, sheath type: B2ca s1 d1 a1, LSOHFR Sheath colour: orange RAL 2003 Cable diameter: 6, 6 mm Weight: 53, 9 kg/km NVP: 69 % Propagation delay: 535 ns/100 m Delay skew: ?45 ns/100 m Storage temperature: -20 °C to 60 °C Operating temperature: -20 °C to 60 °C Installation temperature: 0 °C to 50 °C Packaging: 500 m, wooden coil Package dimensions (diameter x height): 370 mm x 320 mm
