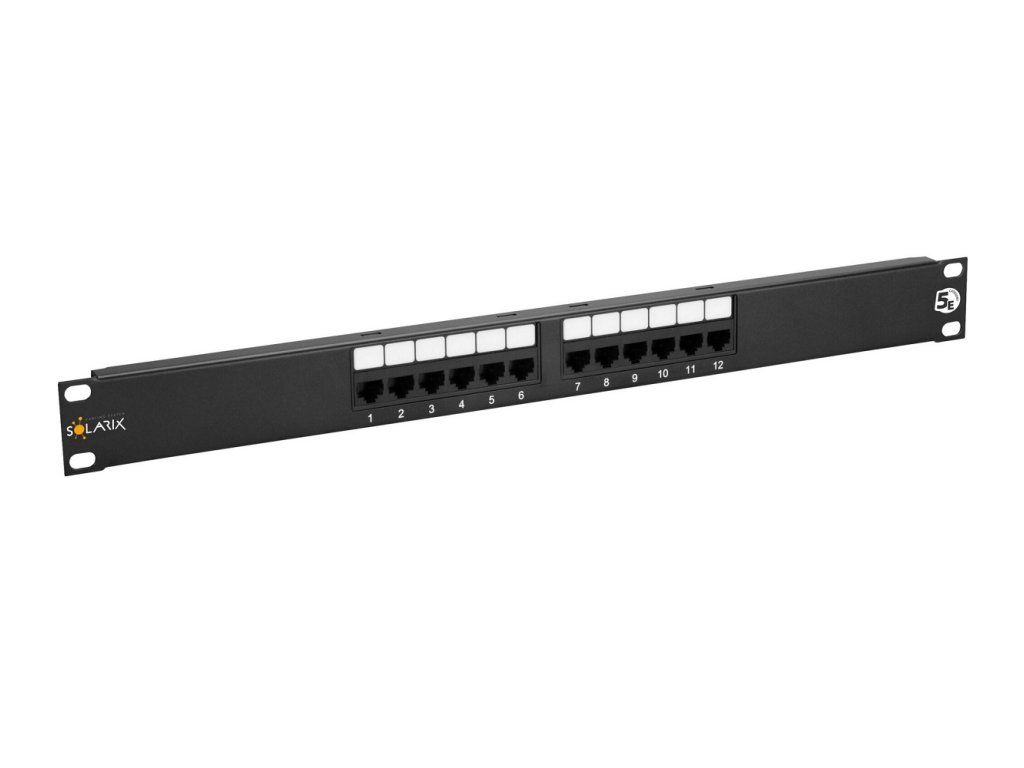

Solarix patch panel 12 x RJ45 CAT5E UTP 150 MHz black 1U SX12-5E-UTP-BK

Product detailed description

Unshielded patch panel CAT5E 12 ports tested up to 150 MHz, black. Unshielded patch panels of the Solarix product line - category 5E are available in 12, 24 and 48 RJ45 ports and are equipped with dual IDC terminal blocks type 110/Krone. Each contact on this terminal block is colour coded to either T568A or T568B for ease of cable termination depending on the wiring type. These Solarix structured cabling components are manufactured to guarantee long life, excellent functionality and above all reliability. Solarix unshielded patch panels - Category 5E are tested up to a bandwidth of 150 MHz and thus exceed the requirements for Category 5E/Class D components defined in the international standards ANSI/TIA 568, ISO/IEC 11801 and EN 50173, including all the latest additions. The standard color of the patch panels is black. The size in the data rack is 1U. Specifications: - CAT5E - Supported protocols: 2.5/5GBASE-T and below - Number of ports: 12 - Shielding: no - Tie bar: no - Min. port life: 1000 connections/disconnections - Contact Coverage: 50 µ gold and 100 µ nickel - Terminal block: dual 110/Krone 8p8c - Min. terminal life: 200 notches - Wire size and type: AWG 26 - 22, wire - Material of non-metallic parts: FR plastic according to UL94-0 - Color: Black - Size: 1U - Height: 44 mm - Width: 484 mm - Storage temperature: -40 to 70°C - Operating temperature: -10 to 60°C - Max. operating humidity: 93% - Packing: 1 piece, carton - Shipping Packing: 15 pcs, carton box - Mounting kit included: 4 x M6
