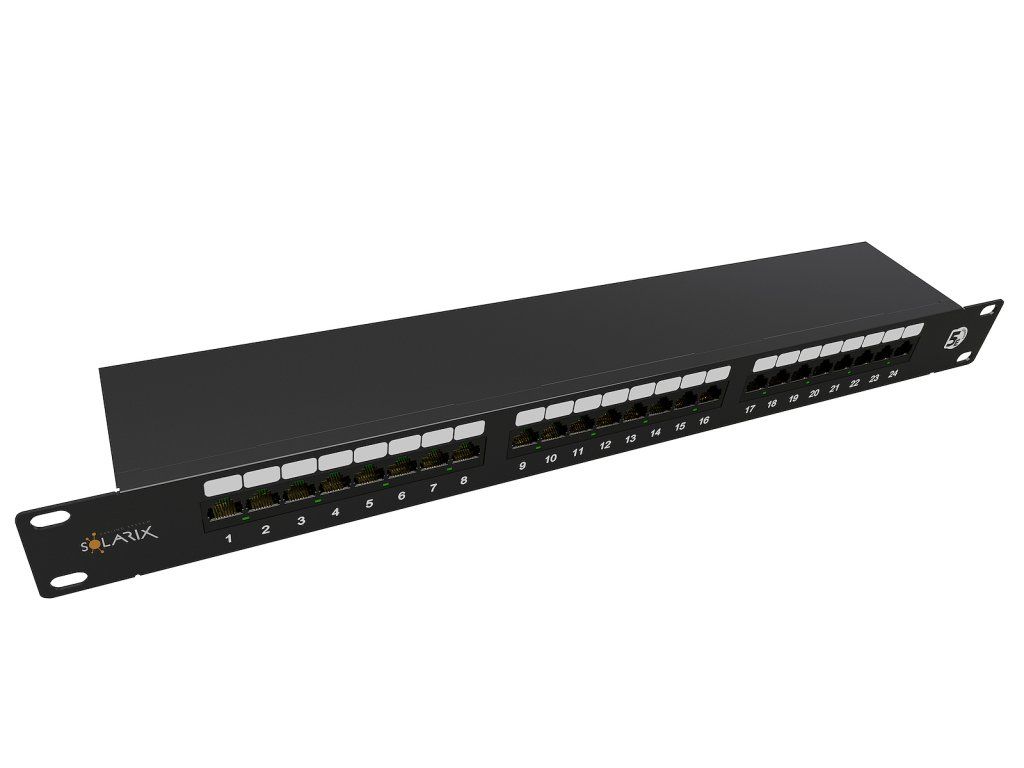

Solarix patch panel 24 x RJ45 CAT5E STP black 1U, SX24-5E-STP-BK-N

Product detailed description

Shielded patch panels Solarix - category 5E are equipped with modules with dual IDC terminal block 110/Krone. The terminal block is marked according to both T568A and T568B standards for easy termination of the cable, using the pair colors and the numerical marking of the individual wires directly on the PCB (an odd number always indicates a half-colored wire and an even number indicates a full-colored wire). The body of the panel includes a tie bar, which serves to clearly arrange and firmly fix the data cable, as well as a ground wire, which reliably connects the cable shield to the ground in the cabinet. Solarix shielded patch panels - Category 5E meet and also exceed the requirements for Category 5E/Class D components defined in the international standards ANSI/TIA 568, ISO/IEC 11801 and EN 50173, including all the latest additions. The panels are strong, reliable and provide long life. The standard color of the patch panel is black. The size in the data rack is 1U Specifications: CAT5E Supported protocols: 1000BaseT Number of ports: 24 Shielding: yes Tie bar: yes Min. port life: 1000 connections/disconnections Contact protection: 50 µ gold and 100 µ nickel Terminal block: dual 110/Krone 8p8c Min. terminal life: 200 notches Wire size: AWG 26 - 22 Material of non-metallic parts: FR plastic according to UL94-0 Color: Black Size: 1U Height: 44 mm Width: 484 mm Depth: 108 mm Storage temperature: -40 to 70°C Operating temperature: -10 to 60°C Max. operating humidity: 93%
