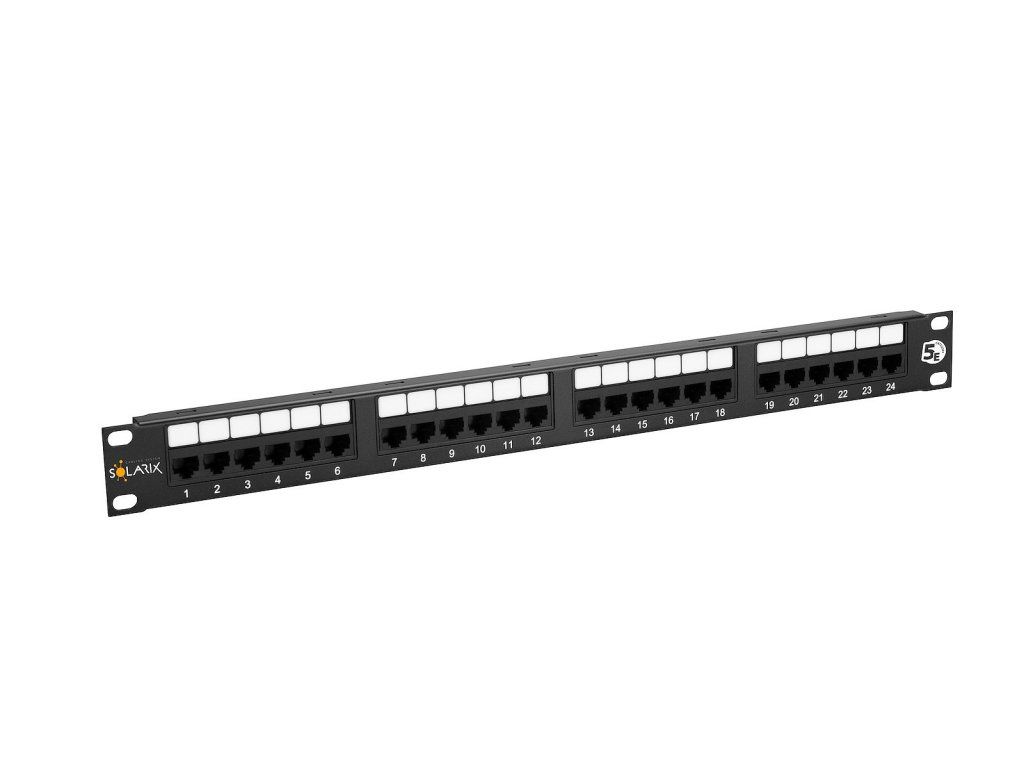

Solarix patch panel 24 x RJ45 CAT5E UTP 150 MHz black 1U, SX24-5E-UTP-BK

Product detailed description

Unshielded patch panels of the Solarix product line - category 5E are available in 12, 24 and 48 RJ45 ports and are equipped with dual IDC terminal blocks type 110/Krone. Each contact on this terminal block is colour coded to either T568A or T568B for ease of cable termination depending on the wiring type. These Solarix structured cabling components are manufactured to guarantee long life, excellent functionality and above all reliability. Solarix unshielded patch panels - Category 5E are tested up to a bandwidth of 150 MHz and thus exceed the requirements for Category 5E/Class D components defined in the international standards ANSI/TIA 568, ISO/IEC 11801 and EN 50173, including all the latest additions. The standard color of the patch panels is black. The size in the data rack is 1U. Specifications: CAT5E Supported protocols: 1000BaseT Number of ports: 24 Shielding: no Tie bar: no Min. port life: 1000 connections/disconnections Contact Coverage: 50 µ gold and 100 µ nickel Terminal block: dual 110/Krone 8p8c Min. terminal life: 200 notches Wire size: AWG 26 - 22 Material of non-metallic parts: FR plastic according to UL94-0 Color: Black Size: 1U Height: 44 mm Width: 484 mm Storage temperature: -40 to 70°C Operating temperature: -10 to 60°C Max. operating humidity: 93%
