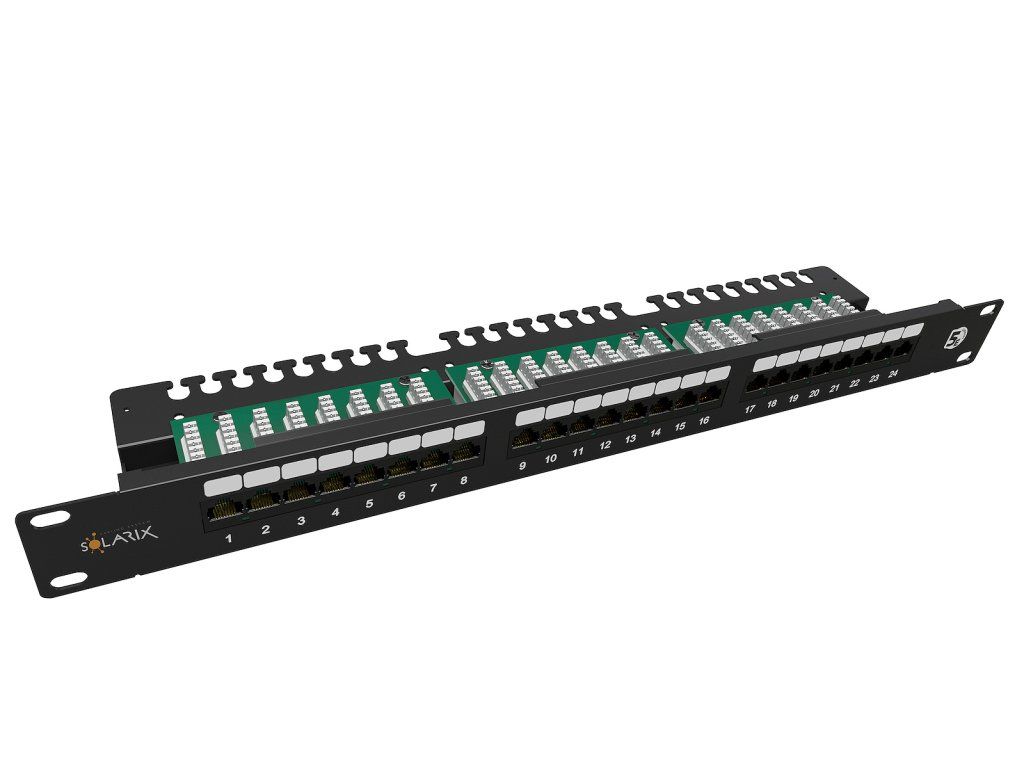

Solarix patch panel 24 x RJ45 CAT5E UTP with binding. 1U, SX24L-5E-UTP-BK-N

Product detailed description

Patch panel Solarix with the designation SX24L-5E-UTP-BK-N is a panel equipped with 24 RJ45 ports, which includes a tie bar for a tight fit and a clear arrangement of cables. The data cable terminates in a dual 110/Krone IDC terminal block - i.e. both 110 and Krone type tools can be used for cutting. The terminal block is marked according to both T568A and T568B standards for easy termination of the cable, using the pair colours and numerical marking of the individual conductors directly on the PCB (an odd number always indicates a half-coloured conductor and an even number a full-coloured conductor). Like all other Solarix structured cabling components, this panel is manufactured to guarantee maximum durability, very good functionality and above all high reliability. This Solarix patch panel meets the requirements for Category 5E/Class D components defined in the international standards ANSI/TIA 568, ISO/IEC 11801 and EN 50173, including all the latest additions. The color of the patch panel is black; the size in the data rack is 1U. Specifications: CAT5E Supported protocols: 1000BaseT Number of ports: 24 Tie bar: yes Min. port life: 1000 connections/disconnections Contact Coverage: 50 µ gold and 100 µ nickel Terminal block: dual 110/Krone 8p8c Min. terminal life: 200 notches Wire size: AWG 26 - 22 Material of non-metallic parts: FR plastic according to UL94-0 Color: Black Size: 1U Height: 44 mm Width: 484 mm Depth: 100 mm Storage temperature: -40 to 70°C Operating temperature: -10 to 60°C Max. operating humidity: 93%
