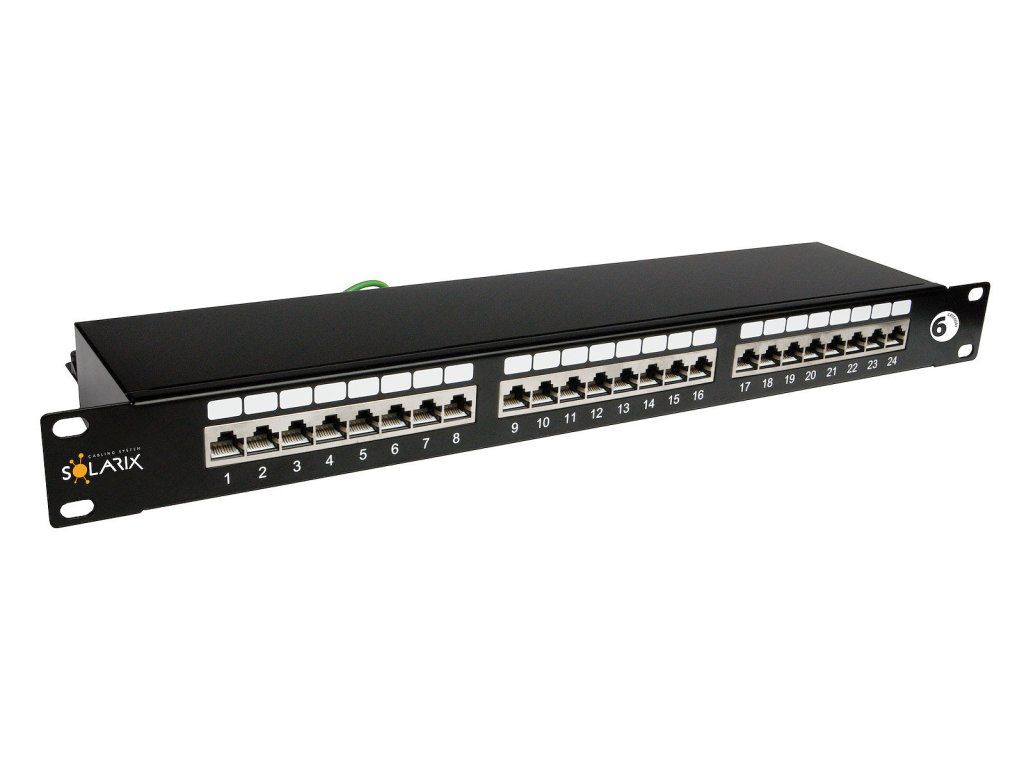

Solarix patch panel 24 x RJ45 CAT6 STP black 1U, SX24-6-STP-BK

Product detailed description

The Solarix patch panel labeled SX24-6-STP-BK is a Category 6 shielded panel that is equipped with 24 RJ45 ports and a dual 110/Krone IDC terminal block. The contacts are color coded on the terminal block according to the wiring type, either T568A or T568B. This panel from the Solarix - Category 6 product line easily meets and also exceeds the requirements defined in the international standards ANSI/TIA 568, ISO/IEC 11801 and EN 50173 for Category 6 and Class E wiring, including all the latest additions. The panel is designed to be robust, reliable, provide maximum performance and allow for easy installation. The body of the panel includes a tie bar that allows for a tight fit and a clear arrangement of the data cable. The color of the Solarix Category 6 shielded patch panel is black; the size in the data rack is 1U. Product parameters: CAT6 Supported protocols : 2.5/5GBASE-T and below Number of ports : 24 Shielding : Yes Tie bar : yes Min. port life : 1000 connections/disconnections Contact Coverage : 50 µ gold and 100 µ nickel Terminal block : dual 110/Krone 8p8c Min. terminal life : 200 notches Wire size and type : AWG 26 - 22, wire Material of non-metallic parts : FR plastic according to UL94-0 Colour : Black Size : 1U Height: 44 mm Width: 484 mm Depth: 137 mm Storage temperature: -40 to 70°C Operating temperature: -10 to 60°C Max. operating humidity: 93%
