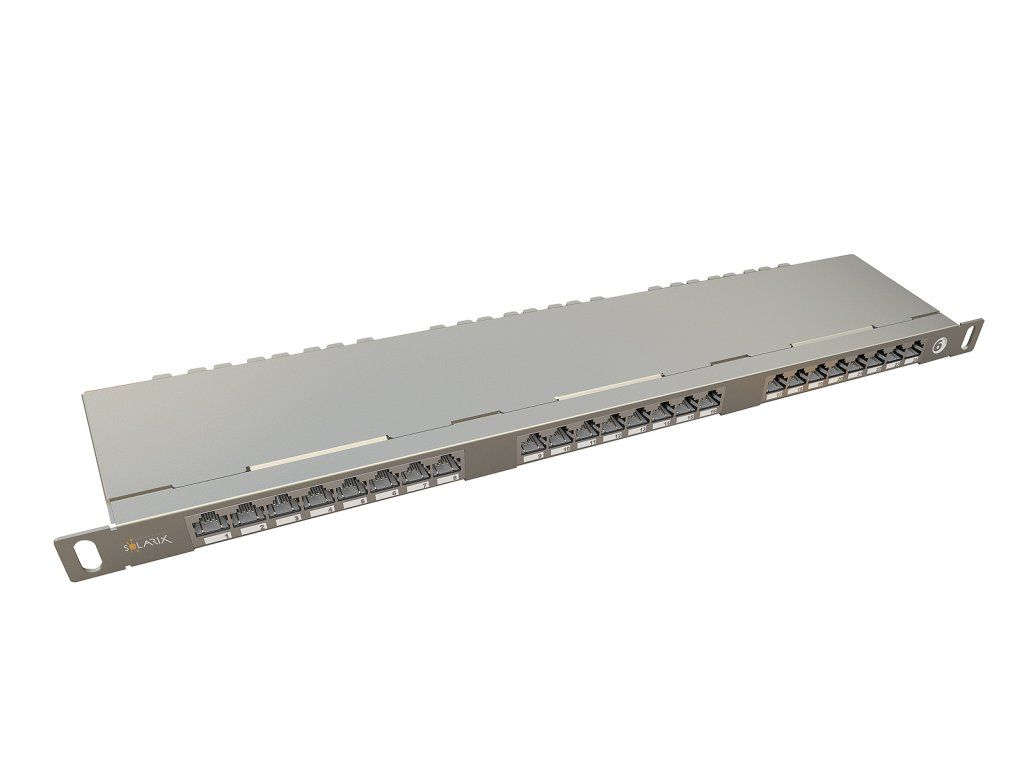

Solarix patch panel 24 x RJ45 CAT6 STP CAT6 with tie bar silver 0,5U, SX24HD-6-STP-SL

Product detailed description

The Solarix patch panels, labeled SX24HD-6-STP-SL, are high-density 19" patch panels with a height of 0.5U that are equipped with 24 RJ45 ports and dual 110/Krone IDC terminals. The emphasis with these panels is on maximum space saving in the rack, where up to 48 ports can be easily installed in a 1U height. These high-density Solarix panels are available in both shielded and unshielded versions and seamlessly meet the requirements defined in the international standards ANSI/TIA 568, ISO/IEC 11801 and EN 50173 including all the latest additions for Category 6 and Class E wiring. The panels are designed to be robust, reliable, provide maximum performance and allow for easy installation. The body of these panels includes a tie bar that allows for a tight fit and a clear arrangement of the data cable. In the case of the shielded version, this panel is made of galvanized sheet metal. Product parameters: CAT6 Supported protocols : 2.5/5GBASE-T and below Number of ports : 24 Shielding : Yes Tie bar : yes Min. port life : 1000 connections/disconnections Contact Coverage : 50 µ gold and 100 µ nickel Terminal block : dual 110/Krone 8p8c Min. terminal life : 200 notches Wire size and type : AWG 26 - 22, wire Material of non-metallic parts : FR plastic according to UL94-0 Colour : Silver Size : 0, 5U Height : 22 mm Width: 484 mm Depth: 100 mm Storage temperature: -40 to 70°C Operating temperature: -10 to 60°C Max. operating humidity: 93%
