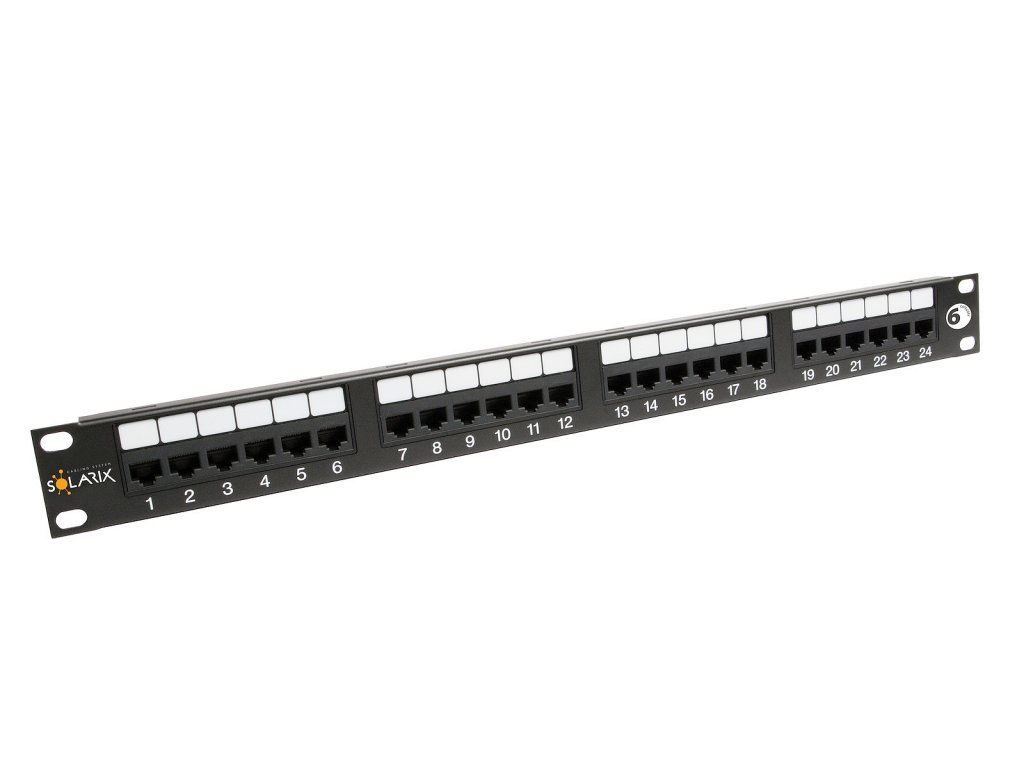

Solarix patch panel 24 x RJ45 CAT6 UTP 350 MHz black 1U, SX24-6-UTP-BK

Product detailed description

The Solarix patch panel, designated SX24-6-UTP-BK, is a high quality Category 6 panel that meets the requirements for components in this category as defined in ANSI/TIA 568, ISO/IEC 11801 and EN 50173 standards for Category 6 and Class E wiring, including all the latest additions. This panel is tested for bandwidths up to 350 MHz, exceeding the requirements specified for Category 6. The panel comes in a 24 port RJ45 version and is fitted with dual 110/Krone IDC terminal modules. The contacts are individually colour coded on the terminal block for easy termination of the data cable, depending on the type of wiring, either to T568A or T568B standard. The SX24-6-UTP-BK panel belongs to the Solarix System Component Group - Category 6 and like all components in this product line, is manufactured to provide maximum durability, superior performance, reliability and most importantly, ease of installation. The color of the Solarix patch panel category 6 is black; the size in the data rack is 1U. Specifications: CAT6 Supported protocols : 2.5/5GBASE-T and below Number of ports : 24 Shielding : No Tie bar : No Min. port life : 1000 connections/disconnections Contact plating : 50 µ gold and 100 µ nickel Terminal block : dual 110/Krone 8p8c Min. terminal life : 200 notches Wire size and type : AWG 26 - 22, wire Material of non-metallic parts : FR plastic according to UL94-0 Colour : Black Size : 1U Height: 44 mm Width: 484 mm Storage temperature: -40 to 70°C Operating temperature: -10 to 60°C Max. operating humidity: 93%
