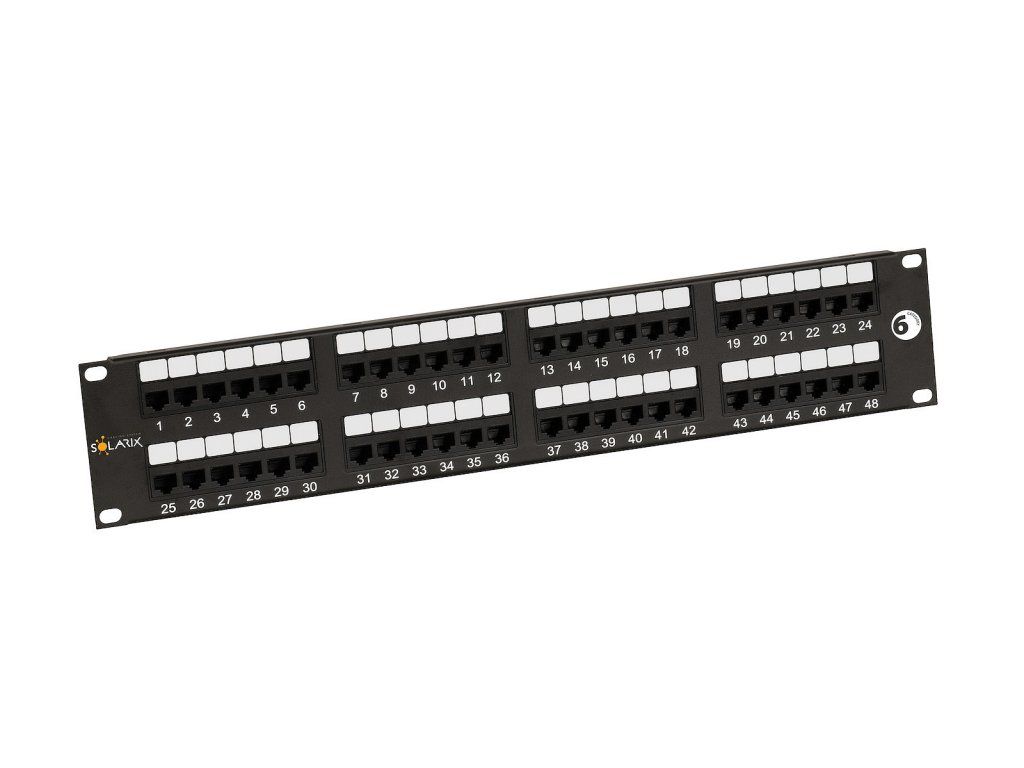

Solarix patch panel 48 x RJ45 CAT6 UTP 350 MHz black 2U, SX48-6-UTP-BK

Product detailed description

The unshielded patch panel, designated SX48-6-UTP-BK, is a high quality Category 6 panel that is tested for bandwidths up to 350 MHz, exceeding the component requirements defined in ANSI/TIA 568, ISO/IEC 11801 and EN 50173 standards for Category 6 and Class E wiring, including all recent additions. The panel comes with 48 RJ45 ports and is equipped with dual 110/Krone IDC terminal modules. The contacts are color coded on the terminal block for easy termination of the data cable, depending on the wiring type, to either the T568A or T568B standard. The SX48-6-UTP-BK panel belongs to the Solarix System Component Group - Category 6 and like all components in this product line, is manufactured to provide maximum durability, superior performance, reliability and most importantly, ease of installation. The colour of this Solarix Category 6 patch panel is black, size 2U. Specifications: CAT6 Supported protocols : 2.5/5GBASE-T and below Number of ports : 48 Shielding : No Tie bar : No Min. port life : 1000 connections/disconnections Contact plating : 50 µ gold and 100 µ nickel Terminal block : dual 110/Krone 8p8c Min. terminal life : 200 notches Wire size and type : AWG 26 - 22, wire Material of non-metallic parts : FR plastic according to UL94-0 Colour : Black Size : 1U Height: 44 mm Width: 484 mm Storage temperature: -40 to 70°C Operating temperature: -10 to 60°C Max. operating humidity: 93%
