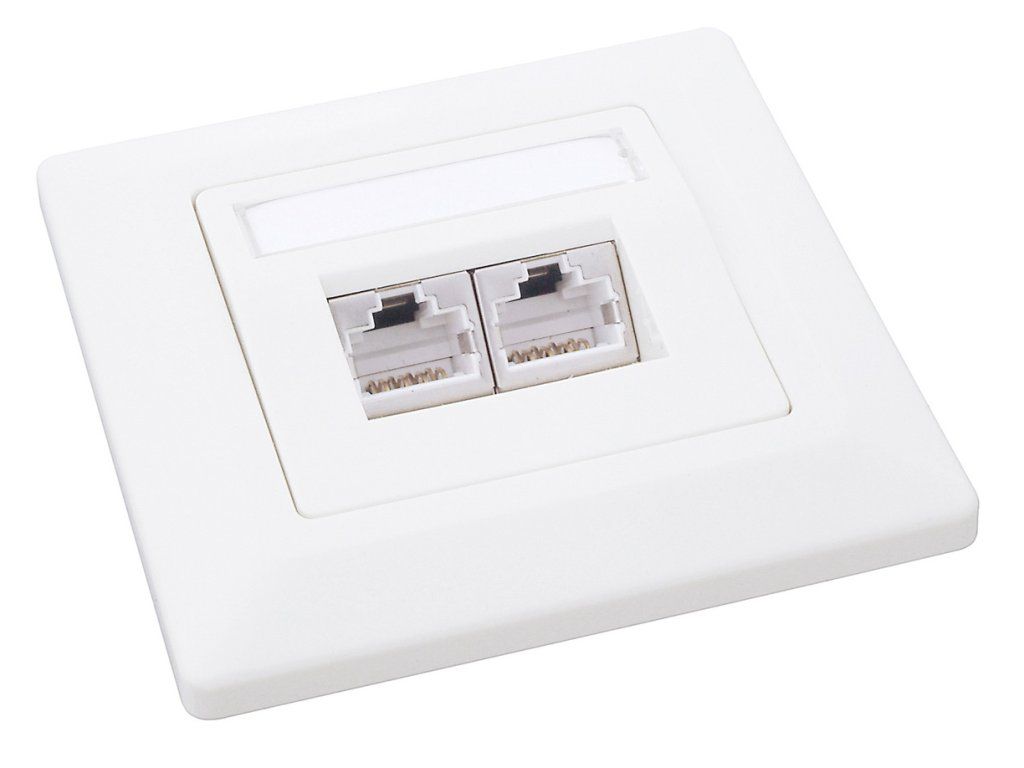

Solarix socket CAT6 STP 2 x RJ45 flush-mounted white, SX9-2-6-STP-WH

Product detailed description

SX9 sockets from the Solarix product group - Category 6 seamlessly meet all requirements defined in the ANSI/TIA 568, ISO/IEC 11801 and EN 50173 standards for structured cabling for Category 6 and Class E wiring, including all the latest additions. The sockets are German style and are fitted with one or two RJ45 ports with a 45° inclination. The IDC terminal block can accommodate conductors of AWG 26 - 22. The contacts are colour coded on the terminal block according to the wiring type, either T568A or T568B. The SX9 sockets are designed to provide maximum performance, long life, reliability, while allowing for easy installation. The sockets are available in both unshielded and shielded versions and are designed to be installed flush-mounted or in parapet gutters. When using the SX9-0-WH box, this type of socket can be used for installation on plaster. The colour of the socket and box is white (RAL 9003). Technical parameters: CAT6 Supported protocols: 1000BaseT, 1000BaseTX Number of ports: 2 Shielding: yes Intended use: flush mounted, with plaster box Port Angle: 45° Modular design: no Min. port lifetime: 1000 connections/disconnections Contact protection: 50 µ gold and 100 µ nickel Terminal block: Krone 8p8c Min. terminal life: 200 notches Wire size: AWG 26 - 22 Material of non-metallic parts: FR plastic according to UL94-0 Colour : white, RAL 9003 Dimensions: 80 x 80 mm Storage temperature: -40 to 70°C Operating temperature: -10 to 60°C Max. operating humidity: 93%
