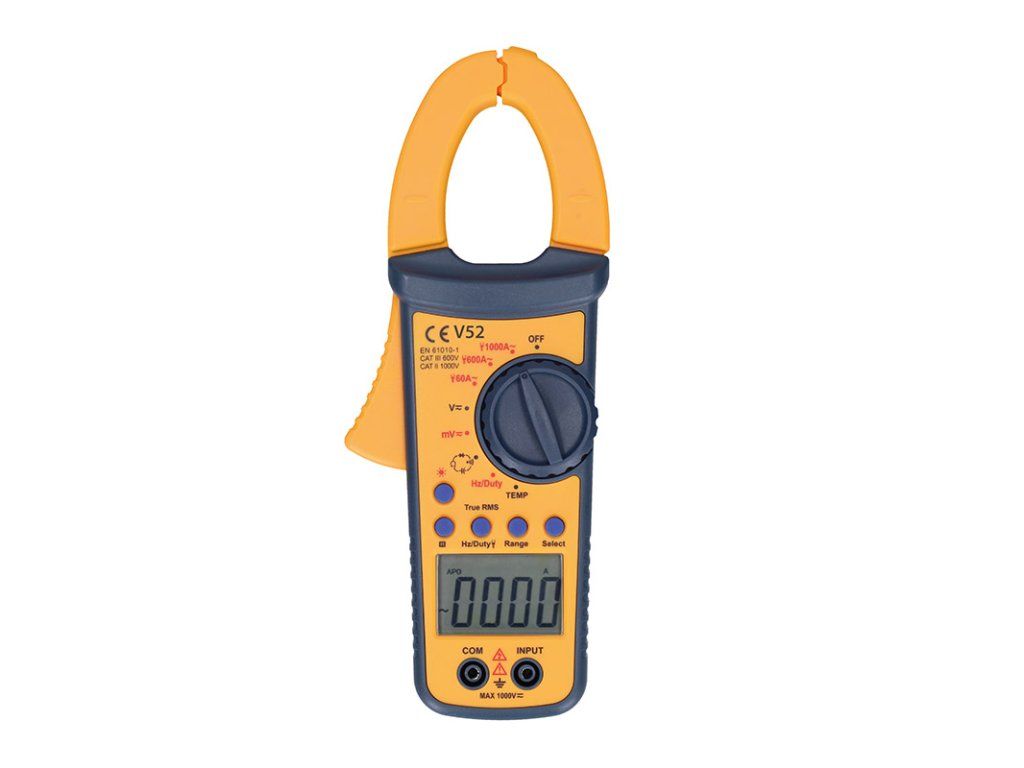

Solight V52 professional clamp multimeter, 10mA - 1000A

Product detailed description

Professional clamp multimeter Digital multimeter with max. display of 6000 values and backlit LCD display (34 × 48 mm). Offers automatic or manual range selection and automatic shutdown after 15 minutes of inactivity. Measures DC voltage (0.1 mV - 1000 V), AC voltage (0.1 mV - 750 V, True-RMS), AC current (10 mA - 1000 A, True-RMS), resistance (0.1 ? - 60 M?), capacitance (6 nF - 60 mF) and temperature (-40 °C - 1370 °C). Features data hold, maximum and minimum value indication, frequency (0 Hz - 10 MHz), and duty cycle (0.01% - 99.9%). Diode test, continuity with buzzer, and clamping frequency measurement. Power supply: 3x AAA 1.5V batteries. Dimensions: 240 × 95 × 40 mm, weight: 342 g. Product parameters: - 6000 max. display values - LCD size: 34 × 48 mm - Range selection: Automatic or manual - automatic shut-off: After 15 minutes of inactivity - display backlight: Yes - data Hold: Yes - maximum and minimum value indication: Yes - DC Voltage (Auto Range) - Range: 0.1 mV - 1000 V (±0.8% + 3 to ±1.0% + 5) - AC Voltage (Auto Range, True-RMS) - Range: 0.1 mV - 750 V (±1.2% + 6 to ±1.2% + 8) - AC Current (Auto Range, True-RMS) - Range: 10 mA - 1000 A (±2.5% + 10) - resistance (Auto Range) - Range: 0.1 ? - 60 M? (±1.5% + 5) - capacitance (Auto Range) - Range: 6 nF - 60 mF (±8.0% + 5) - temperature - Range: -40 °C - 1370 °C (-40 °F - 2000 °F) (±1.2% + 4 to ±5.0% + 4) - frequency (Auto Range) - Range: 0 Hz - 10 MHz (±1.0% + 5) - clamp Mode Frequency - Range: 50 Hz - 1 kHz (±1.5% + 5) - duty Cycle - Range: 0.01% - 99.9% (±1%) - diode test - voltage in the pass direction: approximately 3.2 V - continuity - buzzer trip threshold: <30 ? - operating temperature: 0°C to 40°C, less than 80% RH - storage temperature: -10°C to 50°C, less than 85% RH - power supply: 3× AAA 1.5V batteries - dimensions (H×W×D): 240 × 95 × 40 mm - maximum jaw opening: 40 mm - weight: Approximately 342 g (with batteries)
