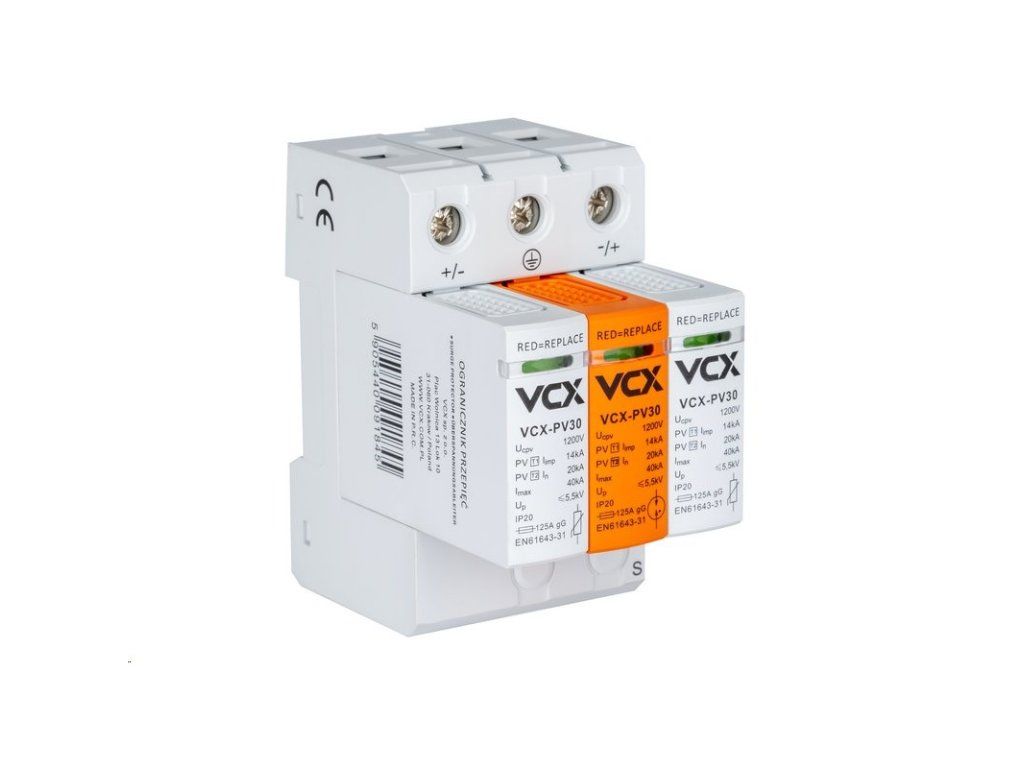

Surge protector VCX PV30 DC class T1T2 (B+C) 3P 1200V 14kA

Product detailed description

The VCX DC T1+T2 (B+C) 3P 1200V 14kA surge protector is the ultimate solution for protecting photovoltaic systems against surges caused by storms or other surge events. Its combined Class B and C protection (T1+T2) makes it ideal for both first and second level protection, ensuring maximum safety for the entire system. High-performance varistor system This protection uses state-of-the-art varistor technology (MOV), which enables fast and efficient surge absorption. As a result, it achieves an excellent level of protection and extreme overload resistance. The high-flow varistor meets standards that other manufacturers achieve by using multiple varistors, resulting in a more compact and efficient solution. Compact and robust design The surge protector is designed to be as compact and easy to assemble as possible. The width of one pole is only 18mm and the overall width of the three-pole design is only 54mm, allowing for easy installation even in smaller cabinets. The protection module is made of non-flammable material, which contributes to the safety of operation. Easy visual inspection of the condition The surge protector is equipped with an integrated visual operating status indicator. Thanks to the simple colour indication, you always know whether your equipment is protected: - Green - the surge protector is active and fully functional. - Red - the protection is out of order and needs to be replaced. Technical specifications - Protection class: T1+T2 (surge protector combining first and second level of protection, ideal for photovoltaic systems) - Protective element: varistor (component enabling effective absorption of surges) - Maximum conductor connection: 35 mm2 (suitable for power and low-current installations) - Rated operating voltage: 1200V DC (+PE, -PE) (designed for DC voltage in solar systems) - Rated impulse leakage current In (8/20 µs): 20 kA (medium overvoltage capacity) - Maximum surge leakage current Imax (8/20 µs): 40 kA (short-term high overvoltage capability) - Lightning surge current Iimp (10/350 µs): 14 kA (lightning surge immunity) - Voltage protection level: <4.5 kV (output voltage when protection is activated, protects connected equipment) - Storage temperature: -30 to +70°C (suitable for a wide range of climatic conditions) - Operating temperature: -30 to +50°C (optimal working environment for stable performance) - Degree of protection: IP20 (protection against touch, designed for installation in enclosures with IP54 and higher) Why choose VCX DC T1+T2 surge protector? ' High quality varistor with extreme resistance ' Protection class T1T2 - ideal for photovoltaic systems ' Compact design with a width of only 54 mm ' Visual status indicator - easy to check functionality ' Simple DIN rail mounting ' Maximum safety and long service life This surge protector is an essential part of any photovoltaic system. Don't wait for the first storm and ensure reliable surge protection today! NOTICE Due to the high risk associated with incorrect connection of equipment, which can lead to damage to electrical appliances, installation should only be carried out by a qualified person with the appropriate electrical qualifications. Incorrect wiring can cause not only malfunction of the equipment but also serious damage to electrical wiring, appliances and other systems in the home or commercial premises. We strongly caution that any attempts at improper installation may increase the risk of electrical short circuits, fire or other dangerous situations. Serious property damage, injury or other negative consequences may result. We accept no liability for damage caused by incorrect wiring or improper installation. We therefore recommend that installation is only consulted and carried out by a professional electrician with a valid certificate according to the applicable standards and regulations. If you are unsure of the correct installation procedure, contact a professional to ensure the safe and correct operation of the equipment.
