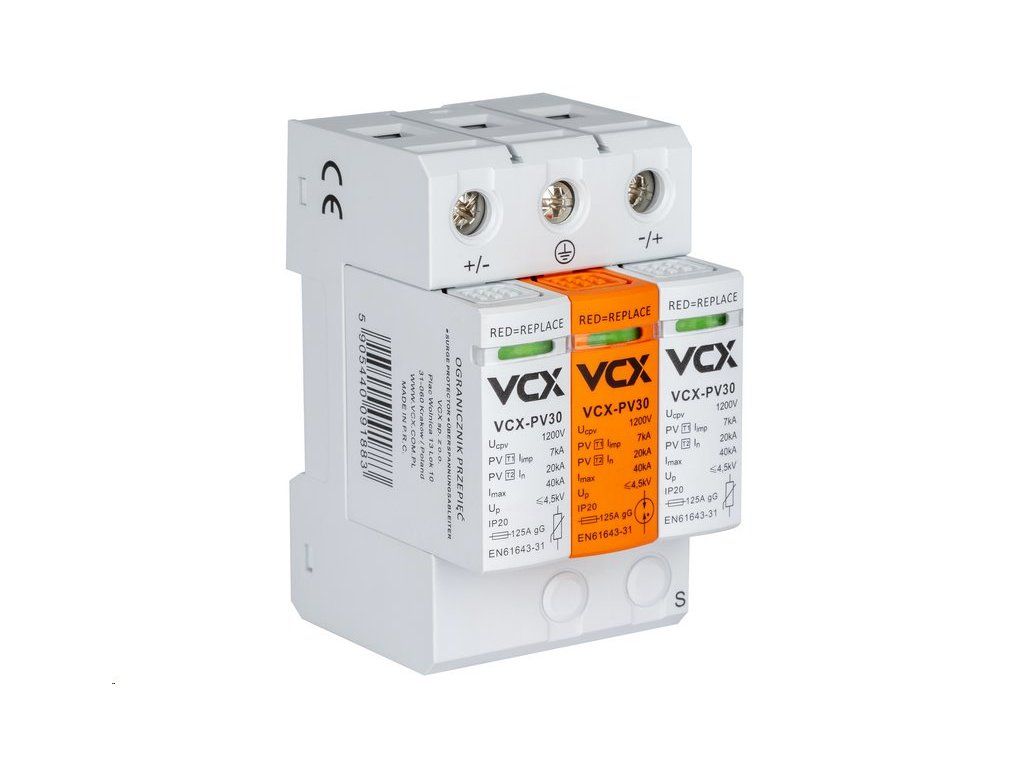

Surge protector VCX PV30 DC class T1T2 (B+C) 3P 1200V 7kA

Product detailed description

Surge protector VCX PV30 DC class T1+T2 (B+C) 3P 1200V 7kA - professional protection for your photovoltaic systems

Surge protectionVCX PV30 DC class T1+T2 (B+C) 3P 1200V 7kA is the ultimate solution for protecting the DC part of a solar power plant. It is specially designed to reliably protect PV components from the effects of atmospheric phenomena and overvoltages from other sources.

Thanks to three-stage technologyMOV-GDT-MOV (varistor + gas spark gap + varistor) offers an exceptionally high level of safety that will be appreciated by professionals and owners of larger solar power plants.

One device for both T1 and T2 protection

Unlike conventional surge protectors, which protect against eitherlightning currents (T1)or only againstswitching and propagated overvoltage (T2), this model performsboth tasks simultaneously.Three-pole design (3P) covers most modern photovoltaic installations and is ideal for use on the DC side up to1200 V DC.

Combination of technologies for maximum reliability

Protection takes advantage ofcombination of varistors and gas spark gapwhich provides:

• High impulse resistance up to 40 kA,
• Capable of handling lightning currents up to 7 kA (10/350 µs),
• Lower risk of degradation due to separation of current paths.

Gas spark modulePE eliminates the problemageing and loss of efficiency of conventional protections due to long-term exposure to working currents and leakage currents.

Visual inspection without tools

On the front of each module you will findstatus indicator of functionality:

• Green means active protection,
• Red indicates the need to replace the module.

This allowsquick and trouble-free inspection of the equipment without disassembling the switchboard - ideal for servicing and regular inspection.

Easy installation and universal use

Surge protector VCX PV30 1200V is compatible with conductors up to35 mm², hascompact three-module design and is ready to be installed in standard switchboards. Thanks toIP20 protection is ideal for indoor use, especially in machine rooms, technical rooms or PV system substations.

The combined surge protection design uses:


• MOV (Metal Oxide Varistor) - varistor made of metal oxide:
  It responds to overvoltage by sharply reducing its resistance when a certain voltage is reached, thusdiverts excessive current into the ground. It is fast and responsive.

• GDT (Gas Discharge Tube) - gas-filled spark gap:
  They switch at higher voltages and are capable ofsafely dissipate large impulse currents (e.g. from a lightning strike) without causing damage. They have a long service life.

• MOV (second layer):
  It serves to further dampen the residual voltage and ensures smooth closure of the surge pulse.

Thistriple combination MOV-GDT-MOV brings the advantages of both technologies -fast response, high durability and long service life. Thanks to this, it providesmore effective and reliable protection than separate varistor or spark arresters.

Why choose this type of surge protection?


• Combining T1 and T2 protection in one device
• Combination of MOV and GDT technology = long life and high performance
• Suitable for modern PV systems up to 1200 V DC
• Optical indication of module status without measurement
• High resistance to impulse currents and discharges
• Safe and easy installation with a wide temperature range of operation


Technical specifications of the product:


• Protection class: T1+T2 (B+C)
  Protects against direct and indirect effects of lightning and switching surges.

• Execution: Varistor with integrated spark gap (MOV-GDT-MOV)
  Increases the ability of the equipment to effectively discharge surges, combined surge protection design.

• Connection: max. 35 mm²
  Allows connection of thicker conductors for higher current loads.

• Maximum working voltage (Ucpv): 1200 V DC
  Designed for higher voltage photovoltaic systems.

• Test current (In 8/20): 20 kA
  Standard ability to repeatedly discharge surges.

• Maximum current (Imax 8/20): 40 kA
  The maximum value that the device is capable of handling in the short term.

• Impulse lightning current (Iimp 10/350): 7 kA
  Special protection against the effects of atmospheric discharges.

• Voltage level of protection (Up): < 4.5 kV
  The low protection threshold minimizes the risk of damage to connected devices. Low residual voltage - higher safety for connected devices.

• Storage temperature: -30 to +70 °C
  Wide temperature range for safe storage.

Safety instructions for installation and operation:


Using surge protectionVCX PV30 DC T1+T2 (B+C) 1200V 7kA requires compliance with basic safety rules. Before installing or servicing the equipment, we recommend paying attention to the following instructions:

• Installation, maintenance and possible replacement must only be carried out by a qualified and authorised person.
• All applicable local, regional and national regulations must be observed during installation and use.
• Opening the device or any tampering with its construction will void the warranty.
• Overloading above the manufacturer's recommended values can result in permanent damage to the equipment and connected components.
• The equipment may only be operated under the conditions specified in the technical documentation.
• Always disconnect the power supply before tampering with the device in any way.
