Swing check valve 3/4" with silencer
Code: ZZ-KL20Product detailed description

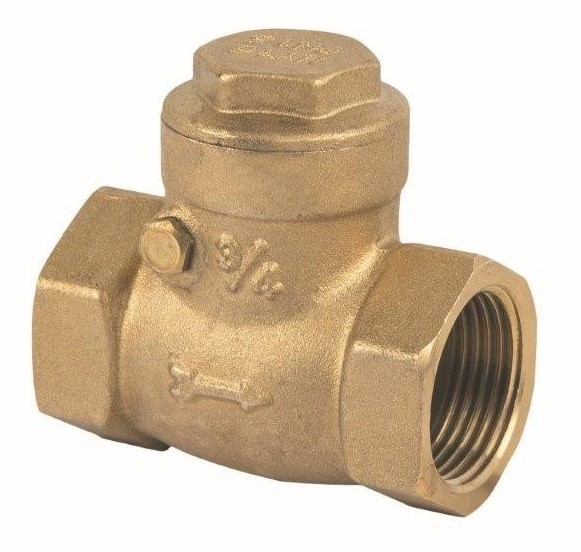

The TYTAN ZZ-KL20 is a 3/4" (G3/4) swing check valve, fitted into water or central-heating pipework to stop the medium from flowing backwards.
Parameters:
Nominal pressure: 10 bar
Maximum working temperature: 100 °C
Working medium: hot and cold water in heating and water-supply systems.
Construction:
Internally it uses a hinged brass disc under light spring pressure, so it opens with almost no flow resistance yet snaps shut the instant flow reverses, and the disc carries a rubber silencer insert that softens the closing impact.
The body is brass and every unit is tested at the factory and supplied with a declaration of conformity.
Additional parameters
| Category: | Brass threaded fittings |
|---|---|
| Warranty: | 2 roky |
| EAN: | 5900308746424 |
| Rozmer pripojenia: | 3/4" |
| Závit: | G3/4 |
| Typ pripojenia: | inline / F-F |
| Menovitý tlak: | 10 bar |
| Max. pracovná teplota: | 100 °C |
| Materiál telesa: | mosadz |
| EAN: | 5900308746424 |
| Značka: | Hydroland |
