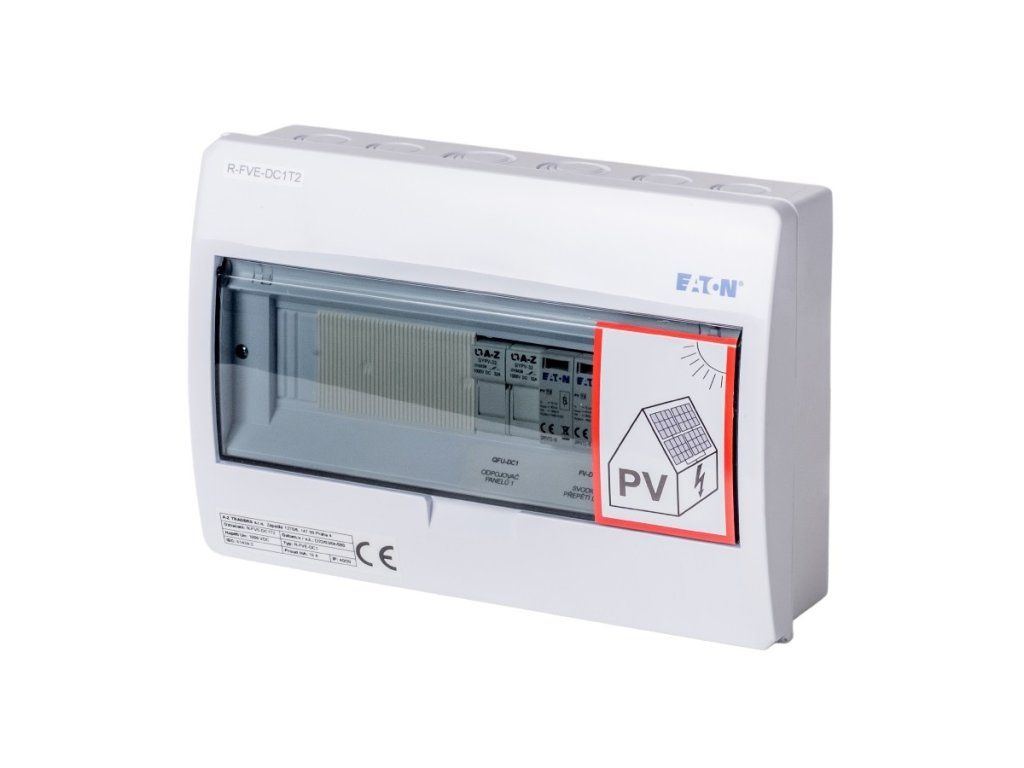

Switchboard R-FVE-DC1T2 EATON, T2 (1000V DC / 32A) for 1 string IP40 certified

Product detailed description

Complete certified switchboard protecting DC lines with max. voltage 1000 V. Designed for surface mounting. Includes two-pole fuse disconnector and surge arrester for protection of one string of the PV system. The individual components mounted on the DIN rail are already interconnected, which ensures time saving during installation. - Meets the standard/requirements according to EN 61439-1 ed. 2:12 and EN 61439-2 ed. 2:12 - White ABS switchboard, transparent polycarbonate plastic door - Degree of protection IP40/20 & Mechanical resistance IK05 - Protection class II (fully insulated) - Short circuit resistance 10 kA - 1 series, 12 modules, DIN rail - Rated voltage 1000 V DC - Rated current 32 A Component list: 1× Switchboard for plasterboard, transparent plastic door, 1 row, 12 modules 1× Circuit breaker PL6, char B, 1-pole, Icn=6 kA, In=16 A 2× Circuit breaker PL6, char B, 1-pole, Icn=6 kA, In=10 A 1× Protector Ir=250 A, type A, 2-pole, Idn=0,03 A, In=25 A 2× DIN rail socket with shields and pin 1x EATON BC-O-1/12-ECO, Switchboard for plasterboard, transparent plastic door, 1 row, 12 modules 1x EATON PL6-B16/1, Circuit breaker PL6, char B, 1-pole, Icn=6kA, In=16A 2x EATON PL6-B10/1, Circuit breaker PL6, char B, 1-pole, Icn=6kA, In=10A 1x EATON PF6-25/4/003-A, Protector Ir=250A, type A, 2-pole, Idn=0.03A, In=25A 2x EATON Z-SD230-BS, DIN rail socket with shields and pin BASIC SPECIFICATIONS Purpose: for photovoltaics Fitted: yes Material: plastic Warning: The device may only be installed by an authorised person with an electrical qualification. Incorrect wiring/setting of the product and other components in the installation can lead to damage and irreversible damage and electric shock. Claims due to incorrect wiring/setting cannot be accepted. We are not responsible for improper wiring and any damage caused by it.
