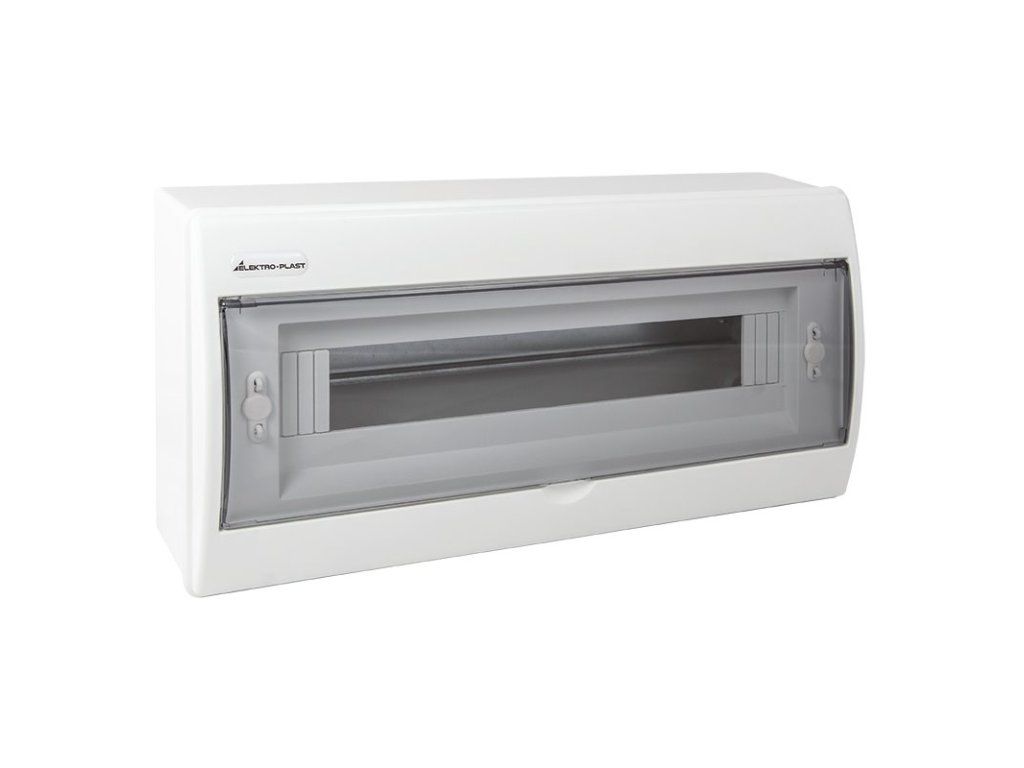

Switchboard RN-18 Fala (N+PE) IP40 plastic 1x18 wall mounted / transparent door

Product detailed description

High quality switchboard from RN - Fala Line series, made of high quality plastic. Designed for indoor use. It has a closed cabinet cover and is suitable for sealing. The cabinet sides are fitted with ribs for easy insertion of cables or wiring. The switchboard is equipped with descriptive labels. It is equipped with N+PE terminals. The TH 35/7,5 (rail) bracket is used as a mounting element in this switchboard, which allows mounting of miniature circuit breakers, current protectors and other electrical equipment. In accordance with current standards, the switchboard should be installed on non-combustible walls by suitably qualified persons. Technical specifications - Type/modules in series: 1 x 8 - Terminals: N+PE - Protection: IP40 - Dimensions (L x W x D): 205 x 416 x 95 mm - Unr: 230/400 V - Uni: 500 V - In: 100 A - Max. cable cross-section: 25 mm2 - PE terminals [mm2]: 16x(1.5-16) + 3x(6-25) - N terminals [mm2]: 16x(1.5-16) + 3x(6-25) - Module depth range: 68-75 mm - Impact resistance: IK7 - Colour: white (RAL 9003) - Material: ABS/PC - Operating stability: -25°C to +60°C - Weight: 1.2 kg - Meets the standards: PN-EN 62208:2011
