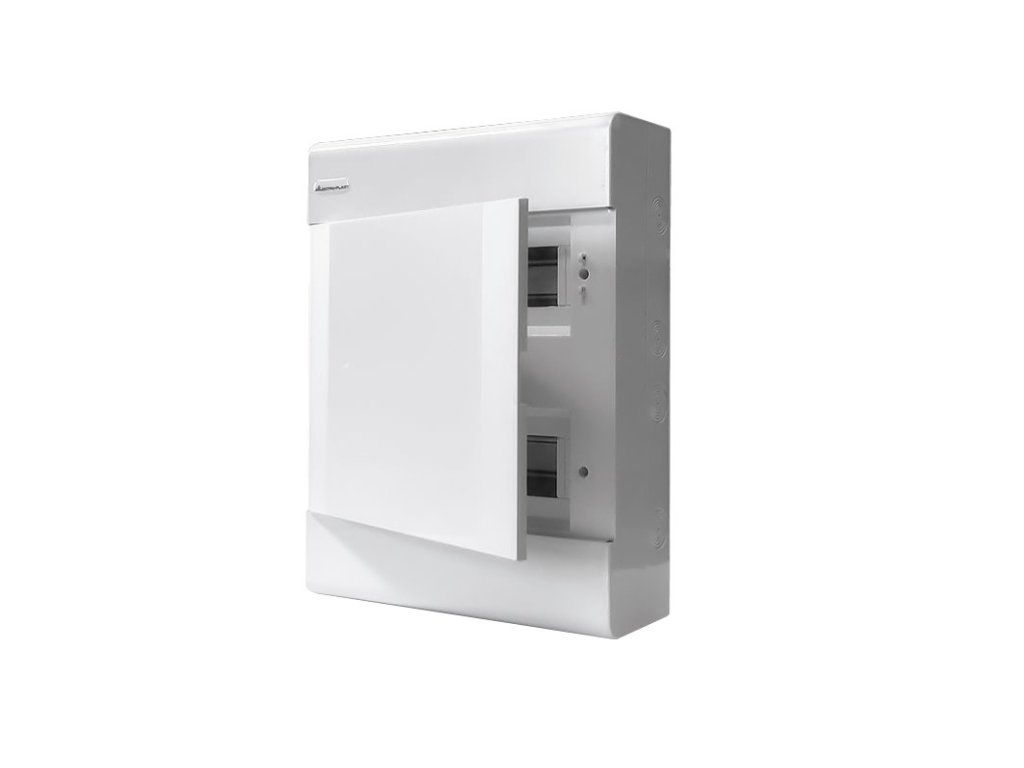

Switchboard SRn-24/B (N+PE) IP40 plastic 2x12 wall mounted / white door

Product detailed description

Switchboard SRn-24/B (N+PE) IP40 plastic 2x12 wall mounted / white door

High quality switchboard from SRn serieswhich is made made of high quality plastic. Designed for indoor use.

It has enclosed enclosure and is suitable for sealing. The sides of the cabinet are fitted with ribs for easy insertion of cables or wiring. The cabinet is equipped with descriptive labels.

It equipped with N+PE terminals. As a mounting element in this switchboard is used tH 35/7,5 holder (rail)which allows the installation of miniature circuit breakers, current protectors and other electrical equipment.

In accordance with current standards, the switchboard should be installed on non-combustible walls by suitably qualified persons.

Technical specifications

- Type/modules in series: 2 x 12
- Clamps: N+PE
- Coverage: IP40
- Dimensions (L x W x D): 397 x 298 x 105 mm
- Unr: 230/400 V
- Uni: 500 V
- In: 100 A
- Max. cable cross-section: 25 mm²
- PE terminals [mm²]: 1x(11x(1,5-16 mm²) + 2x(6-25 mm²))
- N terminals [mm²]: 1x(11x(1.5-16 mm²) + 2x(6-25 mm²))
- Module depth range: 68-75 mm
- Impact resistance: IK7
- Colour: white (RAL 9003)
- Material: ABS/PC
- Operating stability: -25°C to +60°C
- Weight: 1.7 kg
- Meets PN-EN 62208:2011
