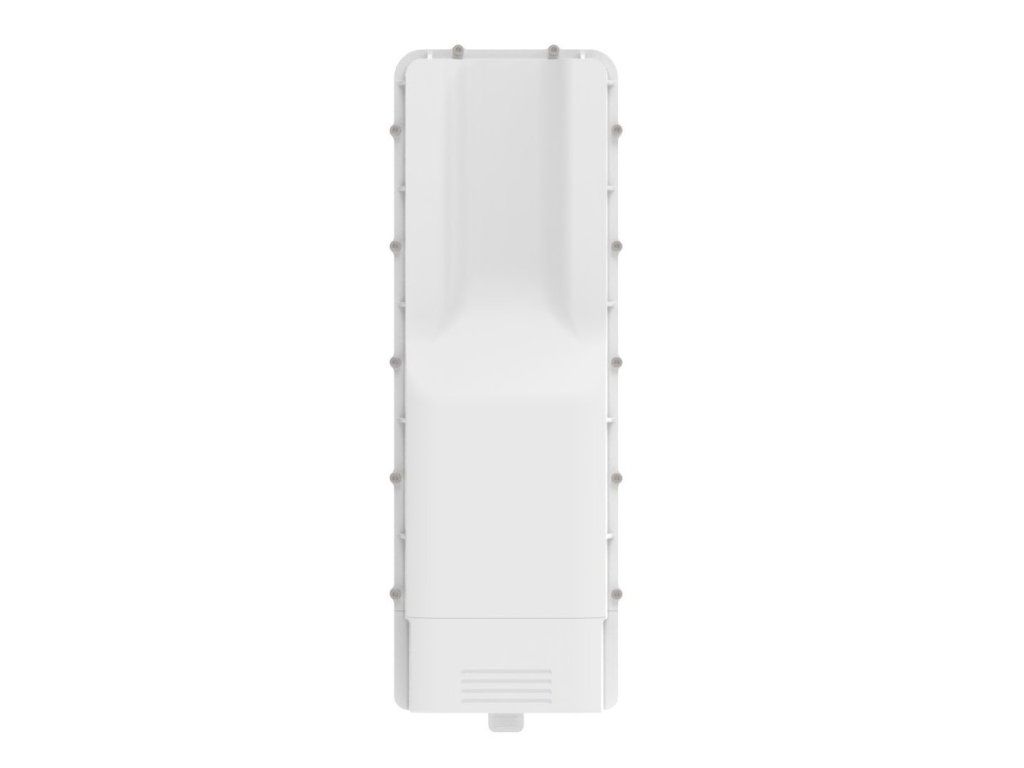

Tachyon TNA-302, 60 GHz access point/client 40°

Product detailed description

The Tachyon Networks TNA-301 and 302 series consists of two models that operate in the mmWave/60GHz band in the 57-71 GHz frequency range with a maximum transmission rate of up to 2.3 Gbps. The two single-units have the same shape, differing only in their antennas. - TNA-301: has a wider 120° x 50° antenna, making it an ideal choice for an access point. with the ability to connect up to 32 clients. - TNA-302: has a more focused 40° x 40° antenna, making it an ideal choice for a PtMP client. The TNA-302 can also function as a PTP or access point if you need a narrower transmission angle than the TNA-301 provides. Both the TNA-301 and TNA-302 units feature 1x 2.5Gbit ETH port with 38-52V POE-IN support and 1x 1Gbit ETH port with POE-OUT up to a maximum of 0.5A for connecting additional devices. The maximum power consumption of the units is 17W without additional connected device. The Tachyon TNA-302 is primarily designed as an access point (AP) with a 40° x 40° sector beamforming antenna, however it can also operate in client or PTP mode. The unit can serve up to 32 client stations. Key Features - 60GHz bandwidth in the 57-71GHz range - Up to 2.3 Gbps transmission rate - 2.5Gbit ETH with PoE-IN and 1Gbit ETH with PoE-OUT Package contents - Unit - 48V/0.5A PoE adapter - Quick Installation Guide
