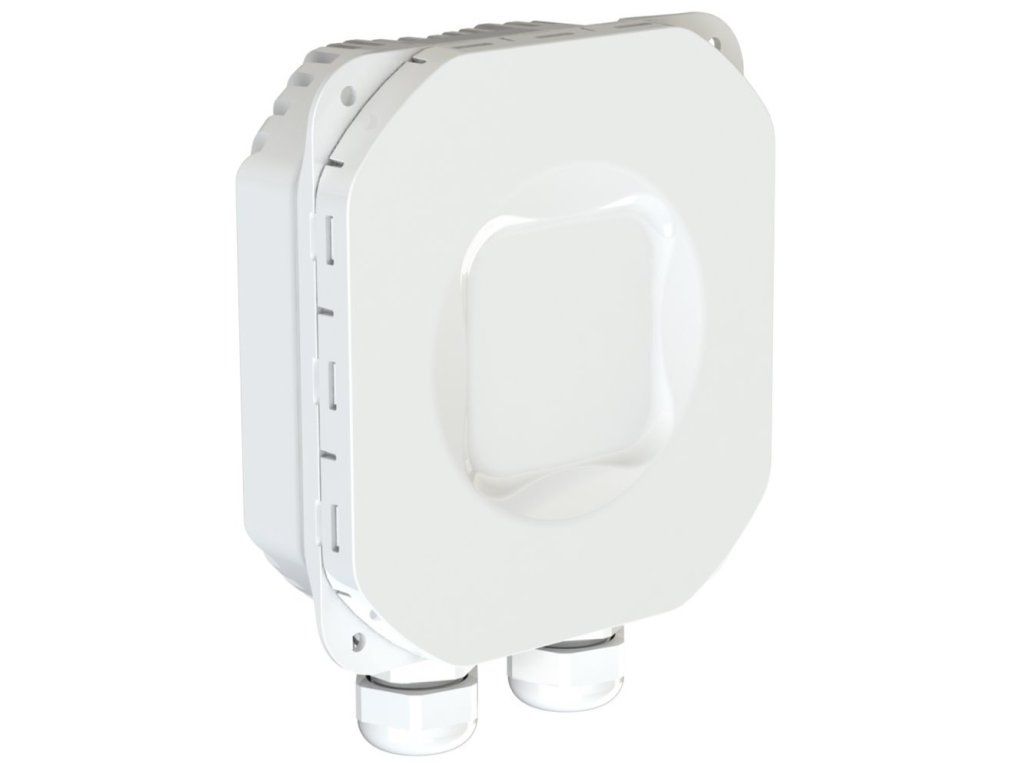

Tachyon TNA-303X, 60 GHz modular access point/client

Product detailed description

The TNA-303X is the latest addition to Tachyon's 60GHz product line. It supports the entire unlicensed 60GHz band in the 57-71GHz range with a maximum transmission rate of up to 2.3 Gbps and is fully compatible with existing TNA models. What sets this model apart is its innovative modular design, where the base unit offers 90° coverage with beam-forming technology and can be upgraded with a separately sold antenna to customize the unit to your exact needs. The unit can thus be used for both PTP and PTMP scenarios. The TNA-303X unit is equipped with 1x 2.5Gbit ETH port with POE-IN 38-52V support and 1x 1Gbit ETH port with POE-OUT up to a maximum power of 0.5A for connecting additional devices. The maximum power consumption of the unit is 17W without additional connected device. Key Features - Modular system with the ability to customize to your needs - 60GHz bandwidth in the 57-71GHz range - Up to 2.3 Gbps transmission speed - 2.5Gbit ETH with PoE-IN and 1Gbit ETH with PoE-OUT - Antenna gain: 16 dBi - Azimuth and elevation: 90° azimuth, 50° elevation - Beamwidth: 30° × 30° - PoE support: yes, active PoE input (PoE+ 802.3af/at, DC 38-57 V), passive PoE output - Radio power (TX): 38 dBm - Dimensions: 130 × 120 × 55 mm - Weight: 425 g - Color: White Package contents - Unit - Cable grommet - PoE adapter 48V/0.5A - Quick Installation Guide
