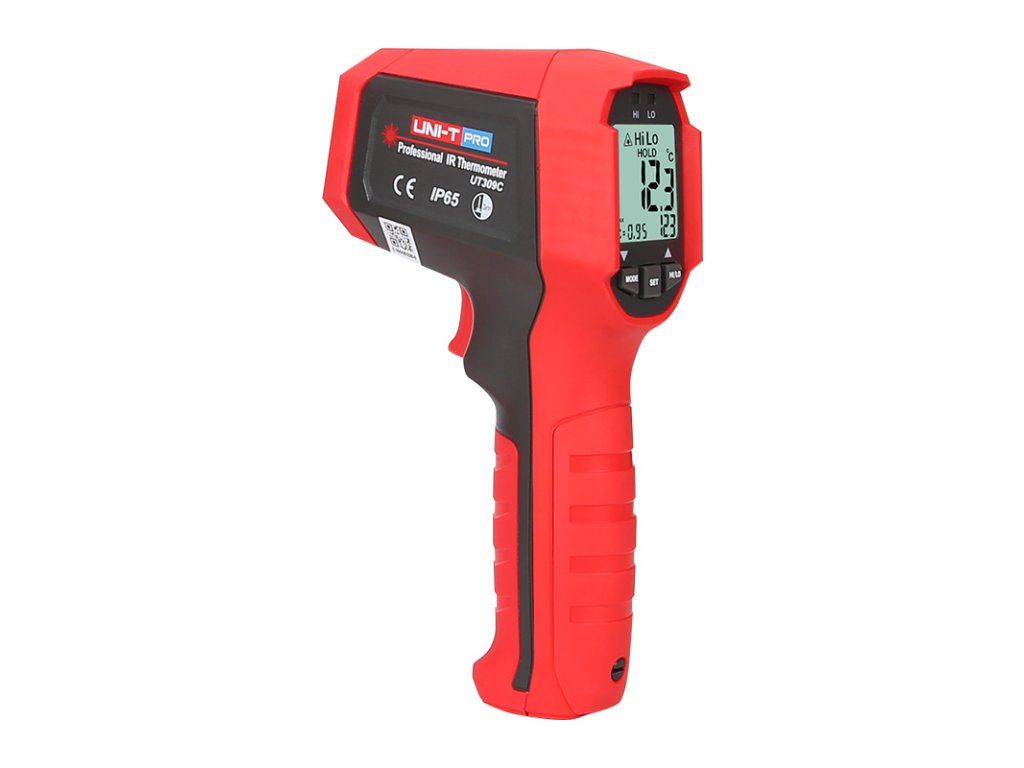

Thermometer UNI-T UT309C PRO Line

Product detailed description

This product comes with a 3-year warranty. The UT309C professional non-contact infrared thermometer can quickly and accurately determine surface temperature between -35°C and +650°C by measuring the infrared energy emitted from the target surface. The UT309C is a very durable instrument suitable for everyday use. It is drop resistant from 3m and the excellent IP65 rating ensures good water and dust resistance. To make it easier and more intuitive to aim the instrument at the target surface, a dual wavelength rotating laser is incorporated to indicate the correct aim of the thermometer. The ratio of distance to diameter of the surface to be measured is 12 :1. It is possible to preset the emissivity of the measured surface in the range of 0.1 to 1.0. The indication of preset functions and measured values is provided by a high-contrast LCD black and white display, and the exceeding of temperature limits is indicated by LEDs ( exceeding the upper limit red and lower limit blue ). It is possible to set continuous measurement, where after 2 minutes the display backlight is switched off, after the measurement is finished by pressing the trigger again the temperature value remains on the display. The temperature measurement time is in 95% of cases within 250msec. It is possible to display the minimum, maximum and average temperatures and the difference between the highest and lowest measured temperature ( MIN, MAX, AVG, DIF ). The thermometer automatically switches off, to reduce power consumption, if it is unused for 8 s. This switching off can be switched off. Product parameters : - infrared thermometer for non-contact surface temperature measurement - temperature range - 35°C to +650°C, can be switched to °Fahrenheit - delineation of the surface to be measured by dual laser - the ratio of the distance to the diameter of the surface to be measured is 12 :1 - contrasting backlit black and white LCD display measuring 32 x 29 mm - indication of exceeding limit values by LED (red, blue) - tripod mounting hole Specifications : - temperature range: -35°C to +650°C (-31°F to 1202°F) - temperature measurement accuracy greater than or equal to 0°C: ±1.8°C or ±1.8% of measurement, whichever is greater - temperature measurement accuracy <0°C: ± (1.8°C + 0.1°C /°C measurement, whichever is greater) - temperature measurement accuracy greater than or equal to 32°F: ± 3.6°F or ± 1.8% of measurement, whichever is greater - temperature measurement accuracy <32°F ± (3.6°F + 0.1°F /°F measurement, whichever is greater) - measurement resolution: 0.1°C - measurement repeatability: ±1.0°C (1.8°F) or 0.8% reading, whichever is greater - spectral response: 8µm to 14µm - response time 95% of the time: 250 ms - the distance to diameter ratio of the surface to be measured for this instrument is 12 :1 - laser delineation of the measurement area: yes - class 2 dual laser: wavelength 630nm to 670nm, output power less than or equal to 1mW - display: 32 x 29 mm contrast black and white LCD display - lED indication of temperature limits (red, blue) - emissivity of the measured surface can be adjusted from 0.1 to 1.0 in steps of 0.01 - automatic switch-off when idle - power supply: 9V battery (1604A) - battery life : continuous temperature measurement greater than or equal to 10 hours with backlight on - low battery indication: yes - drop test from height: 3 m - hI/LO temperature alarm mode (High/Low alarm with LED indication) - mAX / MIN / AVG / DIF value suspension - operating temperature: 0°C to 50°C (32°F to 122°F) - operating humidity: <90% RH (non-condensing) - operating altitude: max.12000m - storage temperature: -20°C to 60°C (-4°F to 140°F) - product colour: red and grey - net product weight: 292 g - product size (l x w x h): 189 x 118 x 55 mm Package Contents : - uT309C PRO thermometer: 1pc - 9V battery: 1pc - packaging: 1pc blister - manual: 1pc
