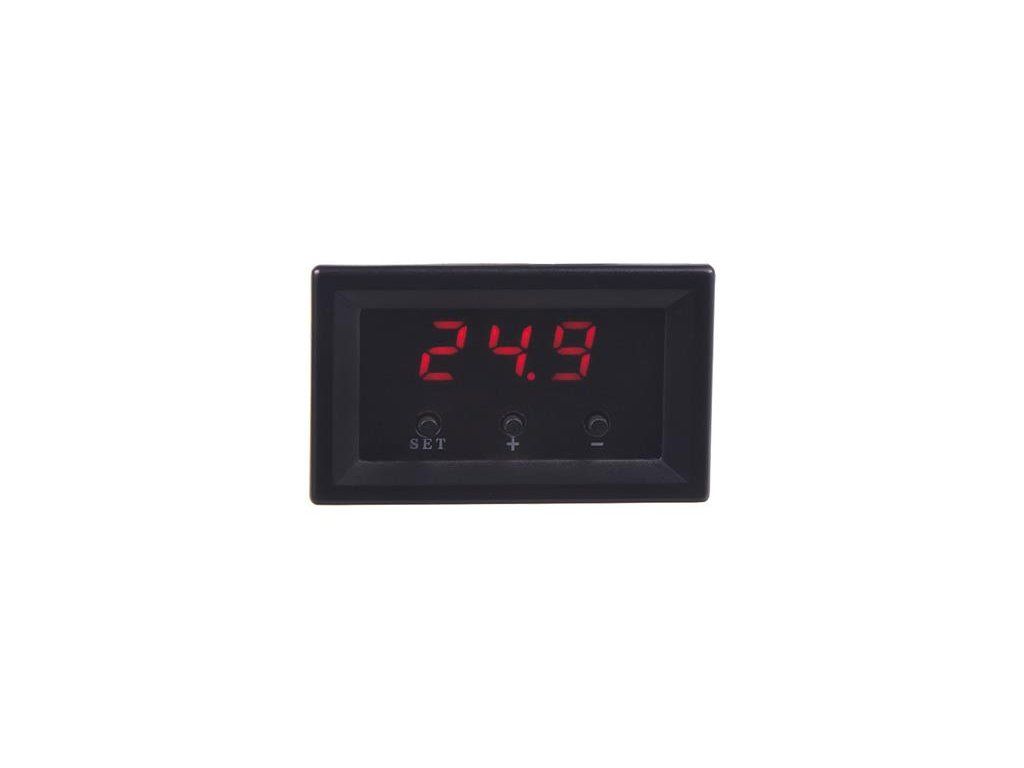

Thermometer with thermostat STU 46083

Product detailed description

Digital thermometer with thermostat.

Current temperature display, adjustable relay output trip temperature.

You can use it wherever you need to display the temperature and switch a device (such as a heater or fan) depending on the temperature.

Technical parameters:

supply voltage: 12 V DC
switching current: max. 5A 250VAC, 20A 16VAC
measuring range: -50 - +110 °C
resolution: -9.9~99.9 at 0.1 °C, higher range 1 °C
accuracy: ±0.1 °C
refresh rate: 0.5 s
clear LED display
measuring sensor: NTC (10K 0.5%), waterproof sensor, lead length 300 mm
environmental requirements: -10~60 °C, humidity 20%-85%
current draw at rest: ≤ 10 mA, in the open state ≤ 65 mA
dimensions: 47.5 x 18.5 x 31.5 mm
