Thermostat EUROKOMP STC-3028

Product detailed description

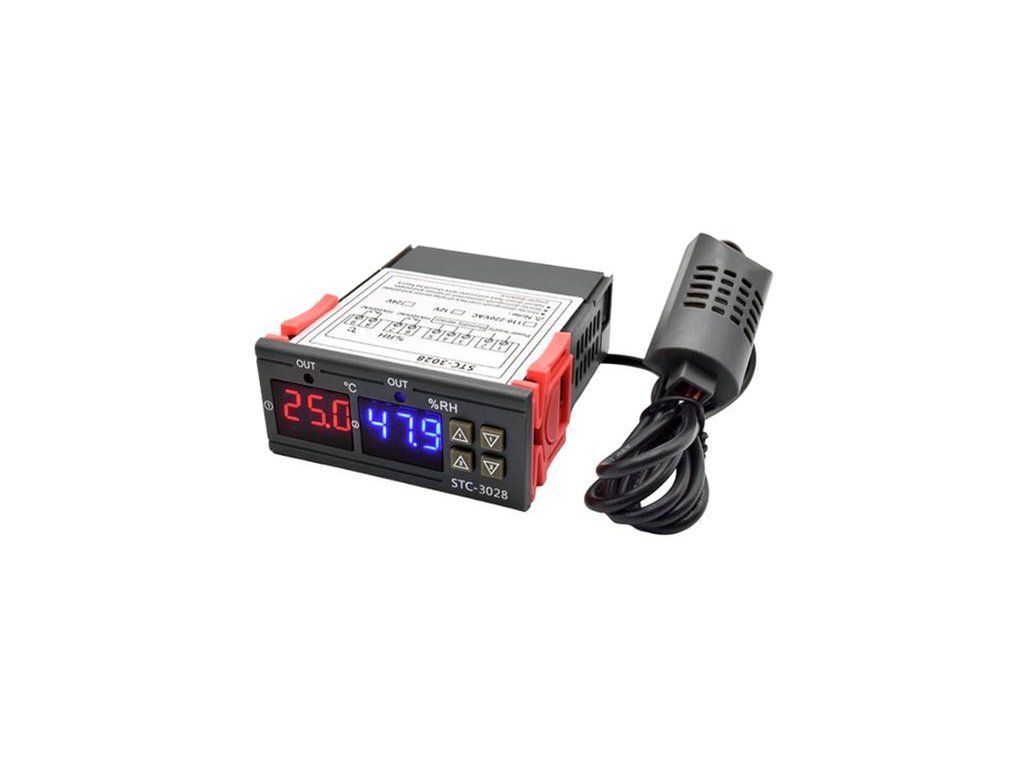

The STC-3028 humidity and temperature sensor is the solution for use in many projects wherever humidity and air temperature need to be controlled simultaneously, e.g. in warehouses, production halls, drying rooms, greenhouses or museums.
The controller has two LED displays: 1 red to show the temperature and 2 blue to show the humidity.
Above the display there are LEDs whose light informs about the relay being closed and thus about the operation of the respective system.
The thermostat has a heating/cooling option depending on the configuration and also a hygrometer with dehumidifying/dehumidifying function depending on the configuration.

The temperature and humidity controller in the sensor set is powered by 230V. It has 2 readable displays: a red one responsible for indicating temperature and a blue one showing humidity and rubber buttons for changing the configuration. Above each of the displays is an LED that lights up when the temperature/humidity control device is activated. Depending on the settings made, the controller can operate simultaneously in the following modes: heating/cooling and humidifying/drying. The device is very easy to configure, it can handle connected devices (e.g. fans, heaters, humidifiers, sprinklers, boilers) with a power not exceeding 2500W and a maximum current draw of 10A per channel. The module has a memory for setting, power failure does not reset the setpoints.

Suitable for temperature and humidity control in:

- terrariums
- cold stores
- industrial halls
- tunnels with plants
- mushroom cultivation
- drying rooms

Technical parameters:

- type: temperature and humidity controller
- supply voltage 230V AC
- number of channels: 2 (1 for temperature control, 2 for humidity control)
- maximum power of controlled devices: 2500W for each channel
- maximum current draw for each channel: 10A
- temperature measurement range: -20 to 80°C
- humidity measurement range: 0 to 100% RH
- humidity and temperature measurement resolution: 0.1
- temperature measurement accuracy +/- 1° C
- humidity measurement accuracy +/- 0.1%
- dimensions: 75mm x 85mm x 29mm
