Tigo CloudConnect Advance Kit including TAP

Product detailed description

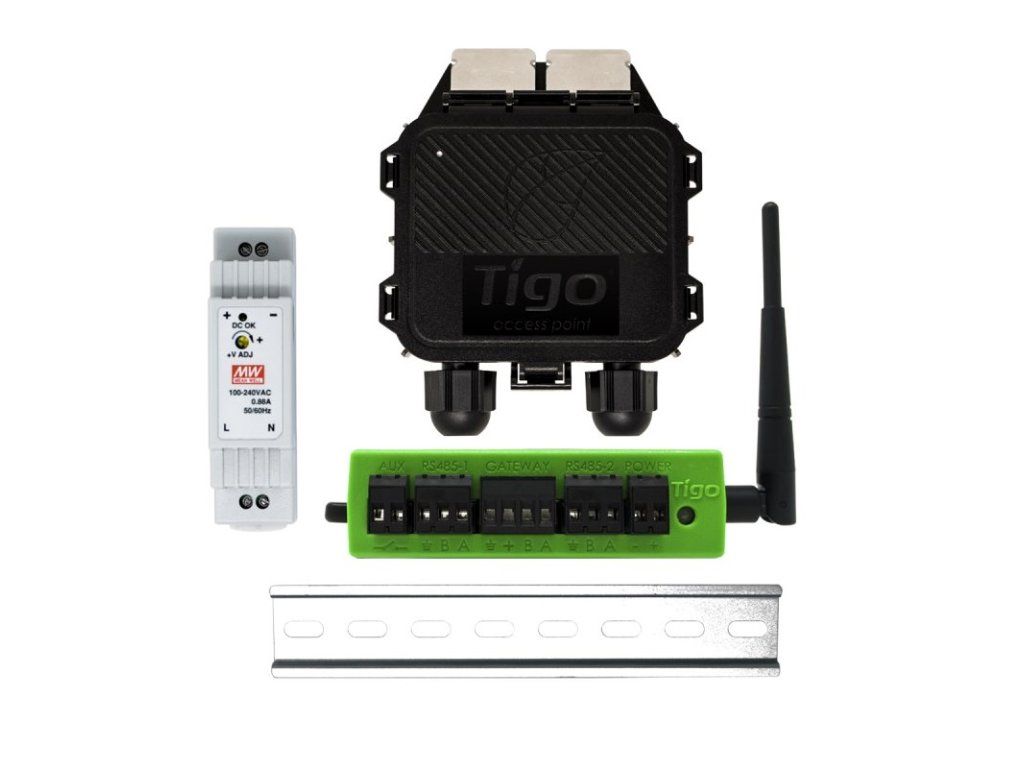

The Cloud connect advanced kit includes the Gateway, the Cloud Connect Advanced data logger and connects the smart panels with the Tigo Smart cloud monitoring software. The Gateway is installed on the roof of the panels and receives data from all optimizers within a 15m radius. It sends this data via RS-485 line to the Cloud Connect Advanced data logger and to the Tigo portal. This set allows for disconnection of panel level communication via sensor connection. Note, after running with the disconnect function, the optimizers can only be disconnected again via Tigo support. Key features - Visualization in Tigo or SMA Sunny Portal - Communication via Ethernet or WiFi - RS-485 for communication with Gateway - Up to 120 TS4-R optimizers for Gateway at a range of 15 meters Package contents - Tigo cloud connect unit - Tigo Access Point (TAP) outdoor unit - DIN rail power supply Product parameters: Connectors and interfaces Communication interfaces RS-485, LAN, USB, Wi-Fi LAN speed (1) 10/100Mbps Power Max. power consumption [W] 7 Power supply via connector/plug 10 .. 25V DC Physical characteristics IP68 degree of protection Operating temperature [°C] -20 to 70 Depth [mm] 80 Width [mm] 109 Height [mm] 31
