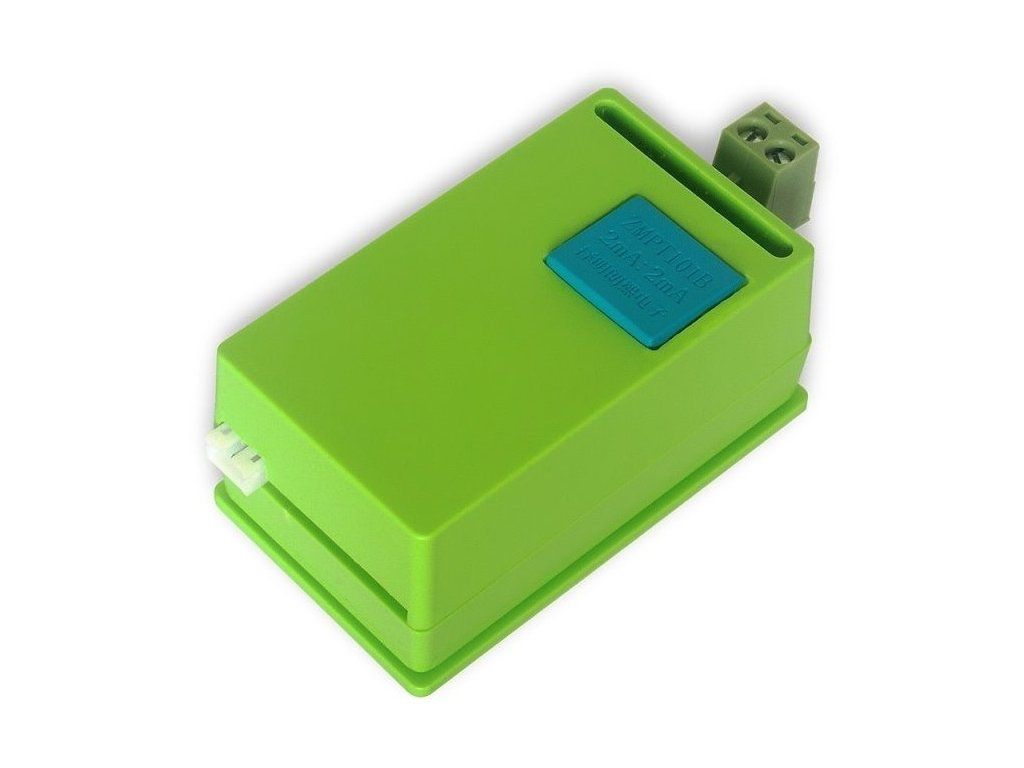

Tinycontrol AC line voltage sensor, single phase, for LAN driver, 1 phase

Product detailed description

Voltage sensor designed to measure the voltage of one phase of the 230V AC network. It is based on ZMPT101B measuring transformer with operational amplifier. The module is powered by 5V, it also has an analog output which should be connected to the LAN input of the driver in order to read the voltage value. WARNING: Health or Life Hazard - Only a qualified person should install the line voltage. The sensor can only be used with a base, which prevents electric shock. BASIC SPECIFICATIONS Voltage range: 0-450 V Max. current from AC source: <1 mA Linearity: ?,0,2% Power supply: 5 V (from LAN controller) Isolation voltage: 4000 V
