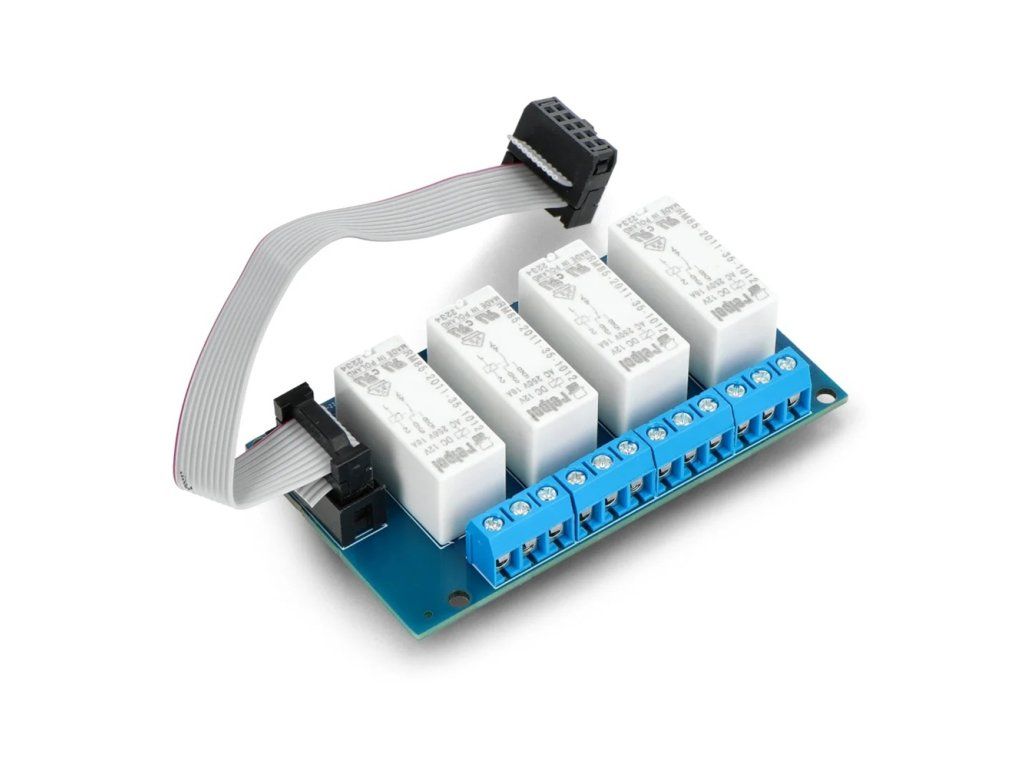

Tinycontrol GSMKON-010 - relay board 4x 16A / 12V coil for GSM / LAN controller

Product detailed description

The module is equipped with 4 Relpol relays with a 12 V coil with optical input isolation and mounting holes. The system is designed to work with a GSM controller and a LAN controller. In addition, the special contact design, which removes metal oxides at each switching operation, extends the fault-free operation time. Opto-isolation separates the control signal from the power supply part of the relay, ensuring safe operation of the control system. Application examples - Lighting controller - Actuator driver - Switch for electrical equipment, including motors Specifications - Supply voltage: 9 V to 30 V DC - Maximum load: 16 A/250 V AC 16 A / 24 V DC - Relay outputs: COM, NO, NC - Contact resistance: less than 100 m? - Contact material: AgSnO2 - Operating temperature: -30°C to 70°C - IDC cable included - Dimensions: 82 x 56 x 17 mm - Weight: 76 g Tinycontrol GSMKON-010 - relay board 4x 16A / 12V coil for GSM / LAN controller The presented relay for DIN rail allows each of the four contacts to be switched on and off independently. The device is equipped with normally open, normally closed and common relays. The Tinycontrol device is characterized by its versatile use due to the possibility of safe operation in a wide range of operating temperatures from -30°C to +70°C. Tinycontrol GSMKON-010 - other technical parameters Relpol can control a control cable with a maximum length of 120 mm. This device will be perfect as part of a smart home or office system. The relay board works with GSM v3 GSMKON 040 and Lan Controller LANKON 001 and LANKON 009. Safe supply voltage is from 9V to 30V DC.
