Tinycontrol LAN controller with relay V4.0

Product detailed description

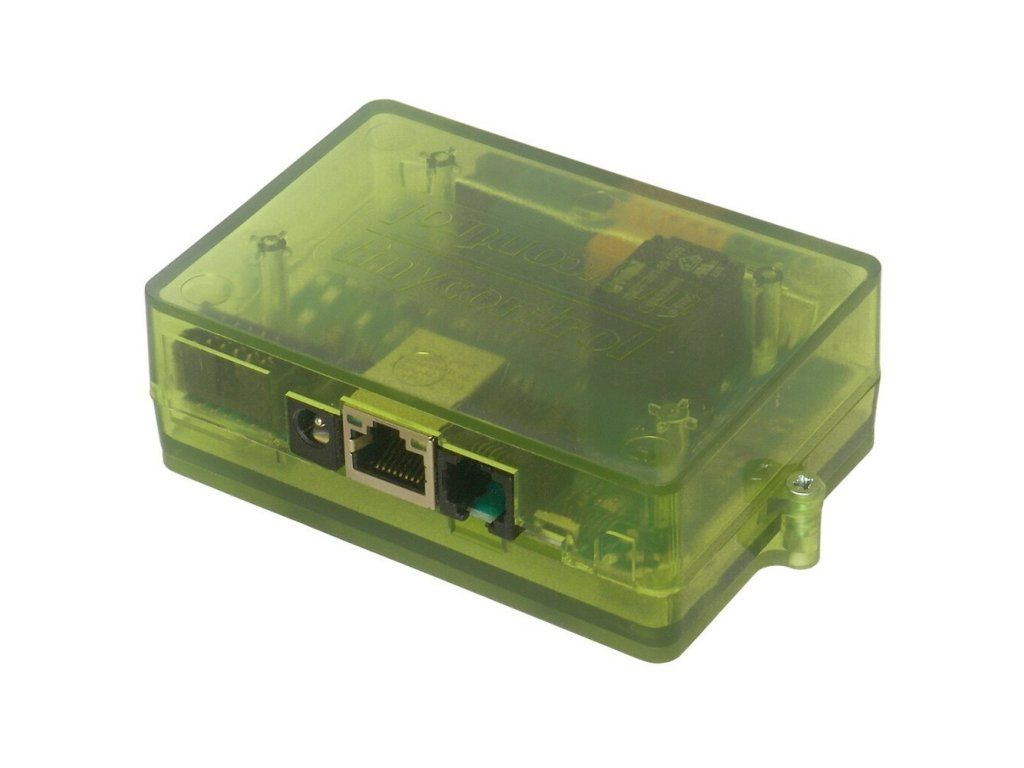

LAN controller, with relay, PoE (802.3af), color-coded connectors, Wi-Fi, MQTT, digital I/O, analog inputs, I2C, 1Wire, RS-485, modbus, v4.0 Tinycontrol LAN driver v4.0 The LAN controller with relay is a simple, versatile and affordable device for controlling outputs based on information from various sensors. It serves as a web server that displays different types of sensors, and allows remote control of outputs. In addition, it is possible to program events and appropriate actions to meet conditions on any of the sensors. A scheduler that allows the device to be turned on/off at a specific time or for a specific period of time can be useful for many applications. There are 3 PWM outputs to control lighting or an electric motor. The new LAN controller v4.0 integrates all existing IoT experiences into one versatile device. It represents a seamless continuation of the previous series, now in a more practical form. Dual communication interface: You can use wired Ethernet, wireless Wi-Fi (802.11n), or both simultaneously. An LTE option is also available. The LAN controller can be fully configured from a web page available on the built-in web server. It is also possible to send arbitrary commands to the device via HTTP (bypassing the web page) or MQTT (after configuring the connection). ATTENTION: The LAN driver is shipped with a DIN rail mounting box without power supply. The power supply is available in two ways - a conventional jack power supply or a PoE injector. Application examples: Automatic heating control when the temperature drops or rises outside the set limit Switching lights or other devices on/off Monitoring/controlling the solar power plant - battery voltage, voltage and current from PV panels, power and production from the inverter, switching appliances depending on the intensity of the glare on the panels, etc. Irrigation control/flood detection Security based on PIR sensor or door/window open detection Remote monitoring of Sofarsolar solar controllers connected via modbus to the LAN controller Hardware: 3 analogue inputs with switchable range - (2× 0-3.3 V or 58 V, 1× 0-5 V or 58 V), for DC voltage, AC current (additional sensors), operating pressure sensors, thermocouples, distance sensors, photoresistors for light measurement and many more 4 logic inputs - as a status sensor for open monitoring, infrared motion sensors, for a manual switching button with bistable mode option, as a counter for meter pulses, as a counter for time between successive input resets 1Wire and I2C input - up to 8× DS18B20 temperature sensor, I2C for connection of various devices, e.g. temperature and humidity sensors, air quality (PM) sensors, CO2 sensors, OLED display with configurable display text and more (see list of supported sensors below) UART interface for communication with external devices via serial port RS-485 bus to support Modbus RTU devices 1 relay (NC, NO, C), 10 A/250 V 1 transistor output, provides supply voltage at the output, to control devices with current draw up to 0.6 A 4 transistor (OC) outputs for switching relays 3 PWM outputs 1 Hz to 1 MHz Temperature, humidity and supply voltage measurements on the board Software: Modern and responsive web interface Possibility to customize the status panel, upload your own background, select and place the necessary data and buttons Two levels of access (login) - as administrator for configuration and as user for status display Scheduler for setting 50 programmed time events Extended event table with the ability to enter 3 conditions, including time events from the scheduler Ability to configure reading from custom Modbus RTU devices - up to 5 non-standard devices Watchdog for monitoring and resetting devices with IP address Modern communication protocols: SNMP, HTTP and MQTT Support for encrypted TLS connections for HTTP, SMTP, MQTT or SNMP v3 HTTP client that allows you to configure and control other devices - for example, control Wi-Fi relays (Smart Relay) or display sensor data in the camera image (supports Basic Authentication and Digest Access Authentication methods) Ability to collect data from all connected devices and sensors, remote switching of outputs and remote configuration via the MQTT protocol in the mqtt.ats.pl service and in the mobile app Many features available through the above service, such as setting up responses and tasks (performing actions under certain conditions and at certain times) covering multiple devices Sending notifications via email, MQTT protocol or SMS (LTE variant only) due to an event Option to send sensor data via Modbus TCP Remote control from one to multiple devices via UDP - useful as a push button implementation over the internet Time synchronization with the Internet (NTP) Maintaining the status of outputs and energy counters until power is restored Convenient software update and backup functions from the device website Wireless device control with Tasmota firmware Mobile apps Technical Specifications: Power supply voltage: 8-58 V Power input: 0.5 W PoE: yes, 802.3af, mode A passive with jumper Interface: Ethernet 10/100Mbps, Wi-Fi (802.11n) Relay: 10 A, 250 VAC Operating temperature: -20 to +85 °C Dimensions: 106 × 79 × 38 mm Weight: 130 g The manufacturer provides the MQTT cloud service for status display and control via the Internet. With this service, it is possible to switch outputs or monitor LAN driver statuses on the local network without setting up routing, but the operation of the service cannot be guaranteed. If the MQTT service is used, a mobile application can also be used. It is available for Android devices and allows you to control outputs and monitor the status and values of inputs simply via your phone. Overview of currently supported sensors and devices Analog inputs AC voltage: AC-meter AC current: SCT-013-000, SCT-013-030 DC: ACS711EX_15, ACS711EX_30, ACS709_75, ACS711LC_12.5, ACS711LC_25, ACS711LC20, WCS1800, WCS6800, LA100P Temperature sensor: PT1000 (with additional resistor) Logic inputs (digital) Magnetic door opening sensor, etc. Infrared motion sensor Button for manual switching with bistable mode option Pulse counter from electricity or water meter Time counter between successive resets of inputs for measurements, e.g. length of operations in industrial processes 1Wire bus dS18B20 temperature sensor I2C bus Humidity, temperature, atmospheric pressure: BME280 Humidity, temperature: AM2301B, AHT20, AHT25, AM2320, HTS221 Particulate matter: SPS30, APM10, PM1, PM2.5, PM4, PM10 CO2: SCD40, ACD10 0.96" OLED display Serial port Particulate Matter Sensor SPS30 and SDS011 CO2: MH-Z16, MH-Z19 Duraluxe photovoltaic inverters Ultrasonic distance sensor 2D barcode scanner Modbus RTU Eastron two-way power meters: SDM120M, SDM72D-M, SDM630M, CHINT DTSU666 (measurement of power, energy, voltage, current and other parameters depending on the meter) Epever Tracer solar chargers Sofarsolar photovoltaic inverters Additional devices and sensors through custom configuration Modbus TCP Modbus controller can read sensors connected to LAN controller (tested with Siemens LOGO) HTTP client Wi-Fi smart plugs with Tasmota firmware Display of sensor data in the camera image Relay control with Smart Relay
