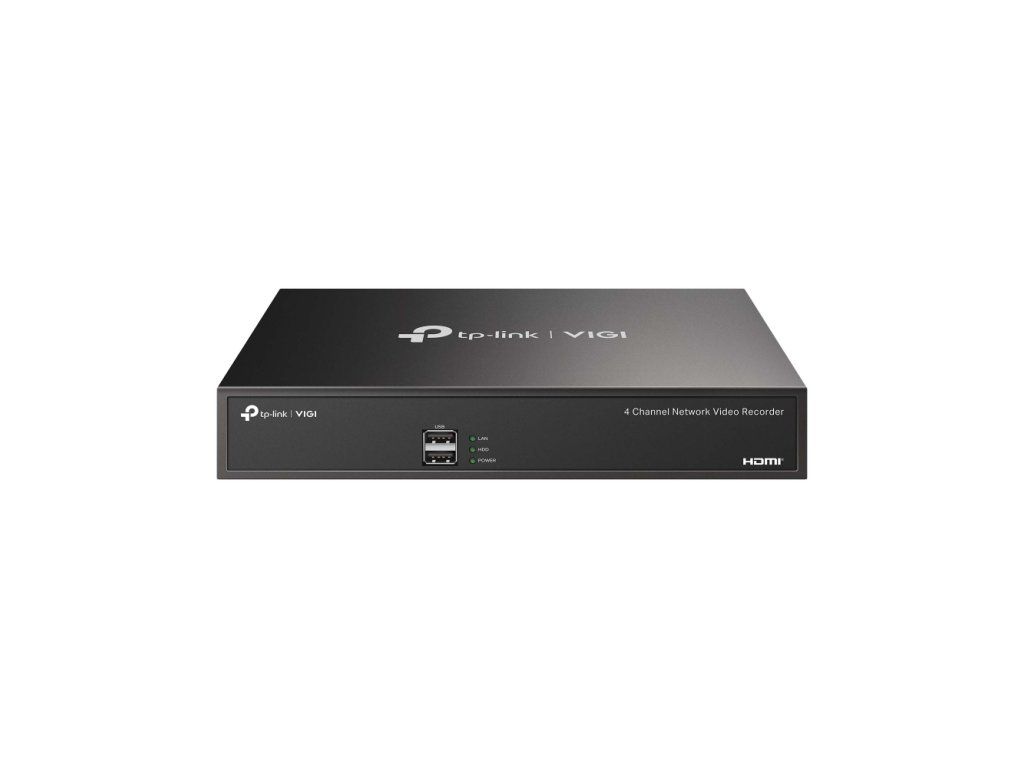

TP-Link VIGI NVR1004H - 4-channel network video recorder

Product detailed description

Recording device from TP-Link for recording up to 4 IP cameras. It can record camera recordings in a maximum resolution of up to 8 MP. The device can be connected to the network via one 10/100 Mbps LAN port. Among the connectors there are 2 USB ports for connecting a keyboard and mouse, audio input/output, 4K HDMI and VGA connector. The maximum power consumption of the recorder itself, without HDD and connected cameras, is 4.25 W. Key Features 4-channel live view and 4K HDMI video output Decoding: 2-channels @ 8 MP / 4-channels @ 4 MP 4-channel synchronous playback 80 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth 1 SATA interface (up to 10 TB) H.265+ compression HDMI and VGA output Remote monitoring Package contents - Device - Power adapter - HDD screws - Mouse - Rubber pads - Quick Installation Guide Technical parameters Image Max. camera resolution for recording:8MP Connectors and interfaces Number of Sata connectors:1 VGA connector:Yes HDMI interface (resolution) [pixels]:3840 x 2160 Audio:Yes LAN Speed:(1) 10/100Mbps Number of USB 2.0 ports:2 HDMI interface:Yes Power supply Max. power consumption [W]:4.3 Power supply via connector/plug:12V / 1.5A Physical characteristics Design:Desktop Operating temperature [°C]:-10 to 55 Width [mm]:246 Height [mm]:45 Depth [mm]:148 Hardware Number of supported IP cameras:4 Number of supported HDDs:1 Supported HDD capacity [TB]:10 Incoming throughput [Mbps]:80 Outgoing throughput [Mbps]:60 Compression standards Video compression:H.264, H.265 General Camera Series:VIGI
