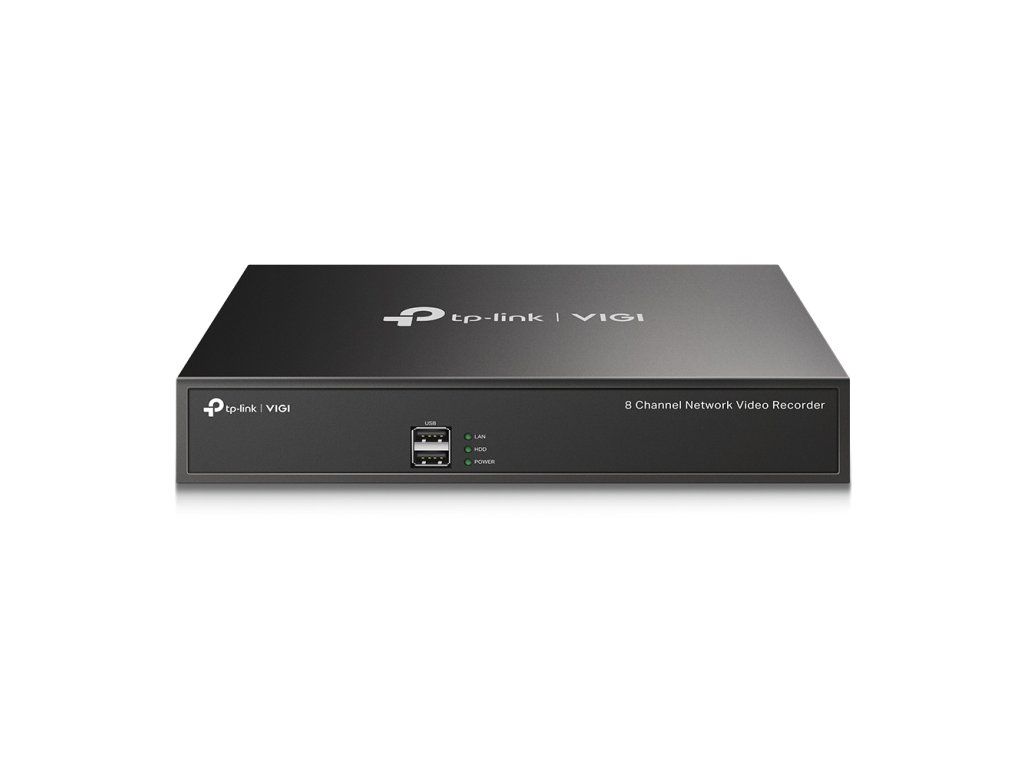

TP-Link VIGI NVR1008H - NVR, 8 channels

Product detailed description

VIGI NVR1008H is a recording device from TP-Link for recording up to 8 IP cameras. It can record camera recordings in a maximum resolution of up to 8 MP. The device can be connected to the network via one 10/100Mbps LAN port. The connectors include 2 USB ports on the front for connecting a keyboard and mouse, audio input/output, HDMI and VGA connector. The maximum power consumption of the recorder alone without HDD is 4.3 W. Key features 8 channels with 8MP resolution 1× Sata (up to 10 TB) 1× 10/100Mbps LAN 2× USB 2.0 1× HDMI (1920×1080px) + 1x VGA Codec support: H.265+/H.265/ H.264+/H.264 Wide camera support thanks to Onvif compatibility Remote management and monitoring with the VIGI app for iOS and Android Package contents - Device - Power adapter 12 V/1.5 A - Mouse - HDD mounting screws Technical parameters Image Max. camera resolution for recording: 8MP Connectors and interfaces Number of USB 2.0 ports: 2 Number of Sata connectors: 1 VGA connector: Yes HDMI interface (resolution) [pixels]: 1920 x 1080 (Full HD) Audio: Yes LAN Speed: (1) 10/100Mbps HDMI interface: Yes Power supply Max. power consumption [W]: 4.3 Power supply via connector/plug: 12V / 1.5A Physical characteristics Design: Desktop Operating temperature [°C]: -10 to 55 Weight [g]: 579 Width [mm]: 246 Height [mm]: 45 Depth [mm]: 148 Hardware Number of supported IP cameras: 8 Number of supported HDDs: 1 Supported HDD capacity [TB]: 10 Incoming throughput [Mbps]: 80 Outgoing throughput [Mbps]: 60 Compression standards Video compression: H.264, H.265
