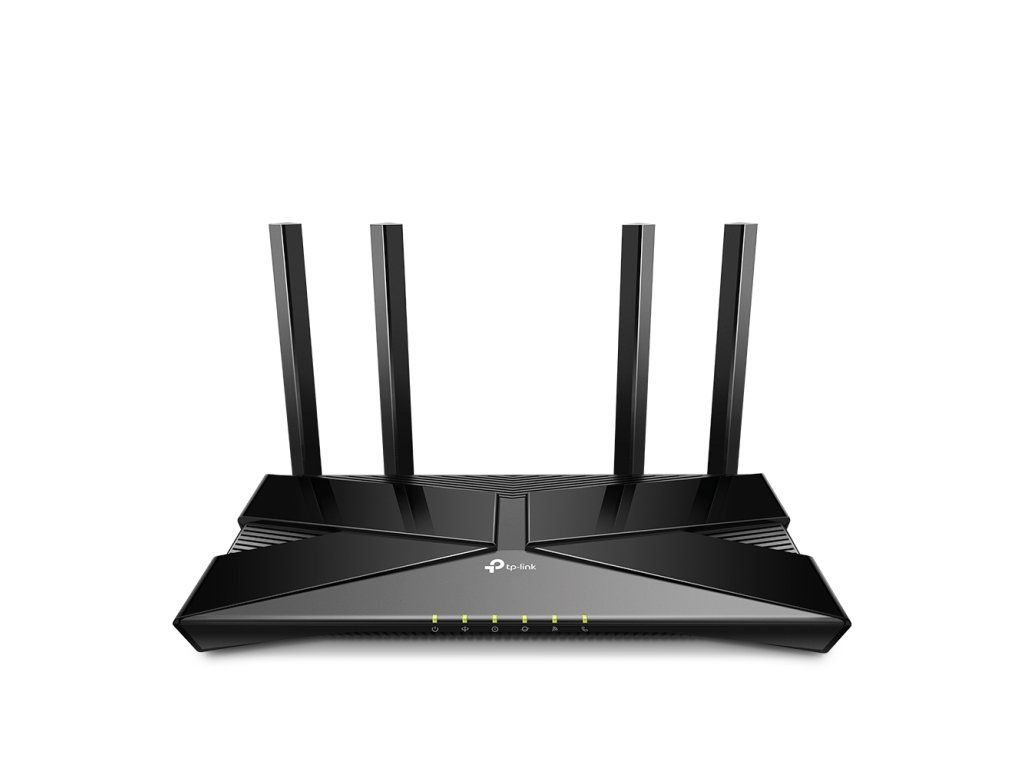

TP-Link XX230v GPON Router

Product detailed description

Wireless Gigabit GPON router with 802.11ax Wi-Fi 6 by TP-Link, four fixed antennas, integrated gateway for VoIP calls, USB port for data sharing via samba, ftp or DLNA and 4x Gigabit LAN of which one port is LAN/WAN for use as a classic router. The ONU router is an ideal device for FTTH (fiber to the home) installation with one SC type optical port with APC grinding, 20 km range, 1310/1490 nm wavelength and 1.244/2.488 Gbps speed. The wireless portion of the router supports 802.11a/b/g/n/ac/ax, MU-MIMO, OFDMA, is 2x2 MIMO in both 2.4 and 5 GHz bands, and modulation rates are 1,201 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Key Features - 4x 10/100/1000 Mbps Ethernet (including 1x LAN/WAN) - Dual Band WiFi support: 802.11a/b/g/n/ac/ax (1201 Mbps + 574 Mbps) - Support MU-MIMO, OFDMA and EasyMesh - Easy remote management: supports ONT Management and Control Interface (OMCI), easy to configure and manage remotely from OLT - OMCI, TR-069, TR-369, TR-098, TR-181, TR-111, TR-104 and TR-143 - GPON Speed (Tx/Rx): 1.244 Gbps/2.488 Gbps - Wavelength (Tx/Rx): 1310/1490 nm, 20 km range - Supports VOIP calls: Simply make or receive phone calls over the Internet - Smooth Connection: Supports VLAN, 802.1q, seamless network connection for IPTV and other services - VPN support: PPTP, IPSec, OpenVPN Package Contents - Device - Patch cable - Power adapter 12 V/1.5 A
