Ubiquiti AF60-XR, UISP airFiber 60 XR, price for 1 piece

Product detailed description

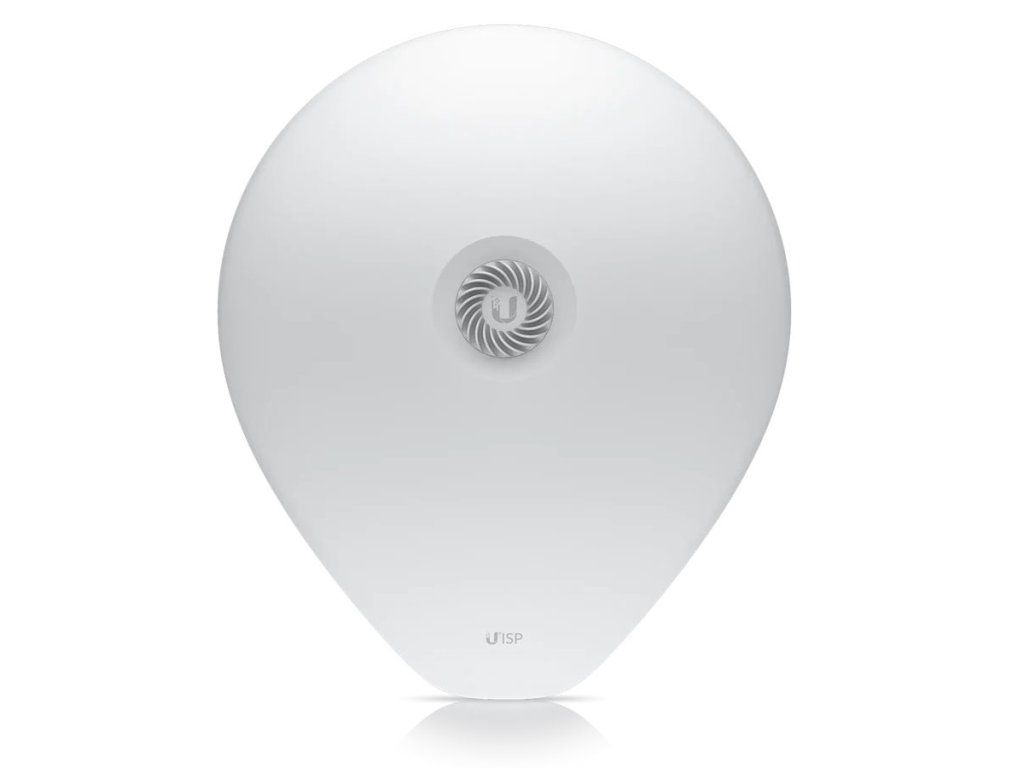

The AirFiber 60 XR (AF60-XR) is a 60GHz point-to-point (PtP) device from Ubiquiti Networks with a long range of up to 15+km and is ideal for ISPs looking to maximize point-to-point speed with a cost-effective device. The unit also features an integrated GPS module and Bluetooth for easy setup using a mobile app. The 5GHz backup is also a great benefit, using a dish for signal reception, with the antenna gain for 5GHz being 26dBi. Key features Low interference 60GHz spectrum - 57 to 71 GHz Supported channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz - support depends on the regulation in the country used Supported 60 GHz channel widths: 2160, 1080 MHz High gain parabolic antenna 5GHz backup using parabolic antenna - 26 dBi (7°/7°) Range 15+km - depends on regulation in the country used Throughput up to 2.5 Gbps 10G SGP+ port Built-in GPS Planning support in ISP Design Center application Easy setup with mobile app via Bluetooth Legislation in the Czech Republic The installation and operation of the linker must be carried out in accordance with the applicable general authorisation. The AF60-XR is certified according to ETSI EN 302 217 and designed for fixed point-to-point high-speed links. Operation of these devices is thus possible according to VO-R/12, lines d5 and d6 of table (b) technical characteristics of stations. General authorisation No VO-R/12 Before a link can be put into operation, it must first be registered on the 60ghz.ctu.cz portal in accordance with VO-R/12. Contents of the package - Device (unit with radome) - Parabolic antenna - 48V / 0.65A PoE power adapter - Power cable - Holder
