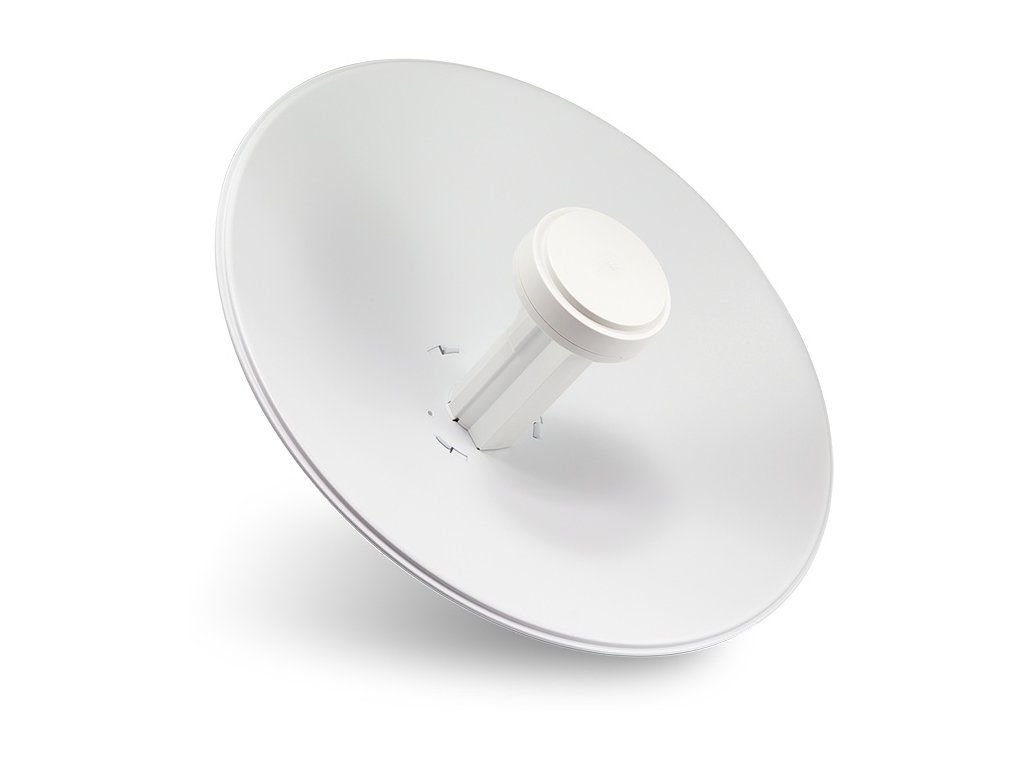

Ubiquiti PowerBeam M2, outdoor, 2.4GHz MIMO, 2x 18dBi, AirMAX

Product detailed description

PowerBeam is based on the previously very successful NanoBridge product line. It now includes more powerful hardware and a smarter design. The design has been simplified as much as possible, installation in the field is now faster and more convenient, for interest I would mention the button to release the main unit (emitter) which was a problem with the older generation. Inside the PowerBeam there is a powerful MIPS processor Atheros 74KC with a frequency of 560MHz, which is seconded by 64MB of DDR2 type operating memory and 8MB Flash memory. The network port supports 10/100 Ethernet and can be used to power the unit with 24V/0.5A passive PoE (active PoE according to 802.3af is not supported). The theoretical maximum throughput of the unit is 300Mbit (MCS15, 802.11n, 2x2 MIMO, at 40MHz channel width). InnerFeed technology InnerFeed™ technology integrates the radio part into the radiator from the antenna thus eliminating potential loss on the RF cable. Excellent directivity The shape and size of the PowerBeam offers the highest possible antenna gain. Plus, with its eccelent directivity, the PoweBeam will work great even in more cluttered environments. airMAX The biggest advantage of any airMAX device, besides the high data rate thanks to the 802.11n standard, is the use of TDMA time division multiplexing. The TDMA airMAX protocol enables excellent scalability and high throughput while maintaining low latency in PtMP networks. Package contents - Device - PoE power supply - Power cable - Parabola - Mounting kit to attach to the mast - Plastic part for holding the emitter
