Ubiquiti UBB-XG, UniFi Building to Building Bridge XG

Product detailed description

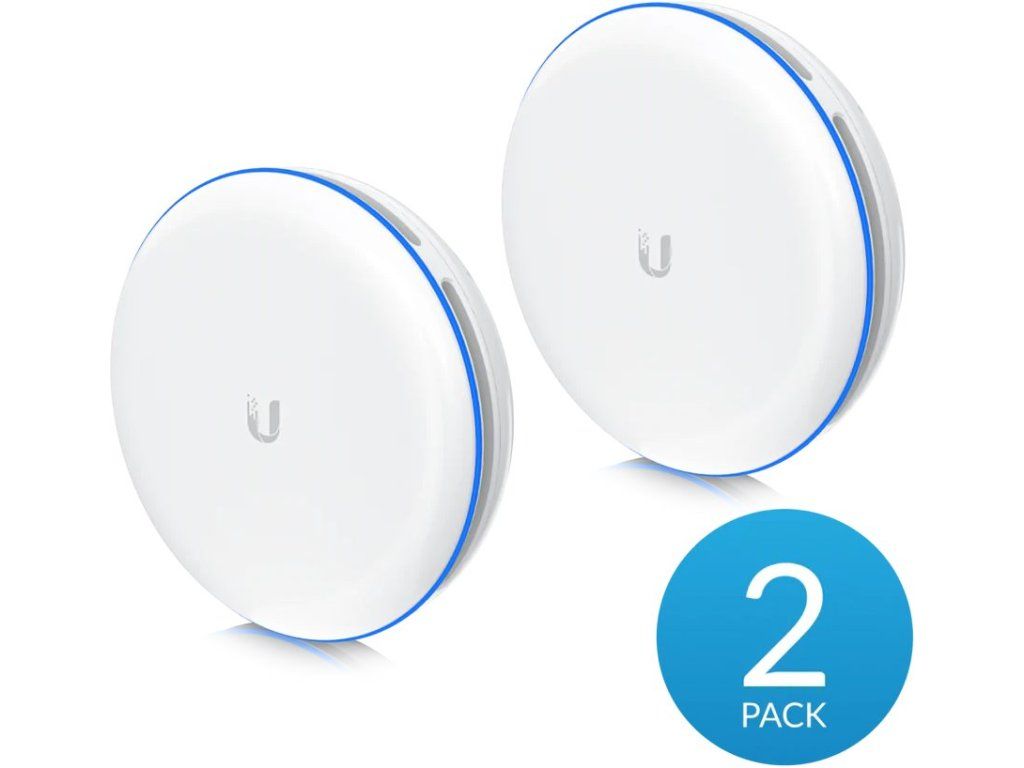

The UniFi Building to Building Bridge XG is a very compact 60 GHz point-to-point (PtP) device with 802.11ad/ay support and built-in 5 GHz backup (WiFi 5 - 802.11ac) from Ubiquiti Networks with a range of up to 500m+ is ideal for connecting two buildings over a short distance. The device is equipped with a Gigabit LAN port with PoE support, one SFP+ port and Bluetooth for easy setup from your mobile via UniFi Network apps. The device supports bridge mode only and supports both 2160 and 4320 MHz channel bandwidth in the 60GHz spectrum. The maximum throughput claimed by the manufacturer is 6 Gbps. Key Features Compact size - 192 × 192 × 59 mm Low-interference 60 GHz spectrum - 58 to 64 GHz Range of 500 m+ Antenna gain: 22 dBi (14 dBi for 5GHz antenna) Radio power (TX): 33 dBm Throughput 6 Gbps at 60 GHz, 866 Mbps at 5 GHz Supports higher bandwidth channel bonding - 2160 and 4320 MHz Supported Channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800-depends on application site Gigabit LAN port with passive PoE support (48V DC), max. power consumption 31.2W Setup via UniFi Network app from version 6.3 onwards Package contents 2x Devices 2x Fine-tuning bracket 2x 48 V/0.65 A PoE power adapter 2x Power cable
