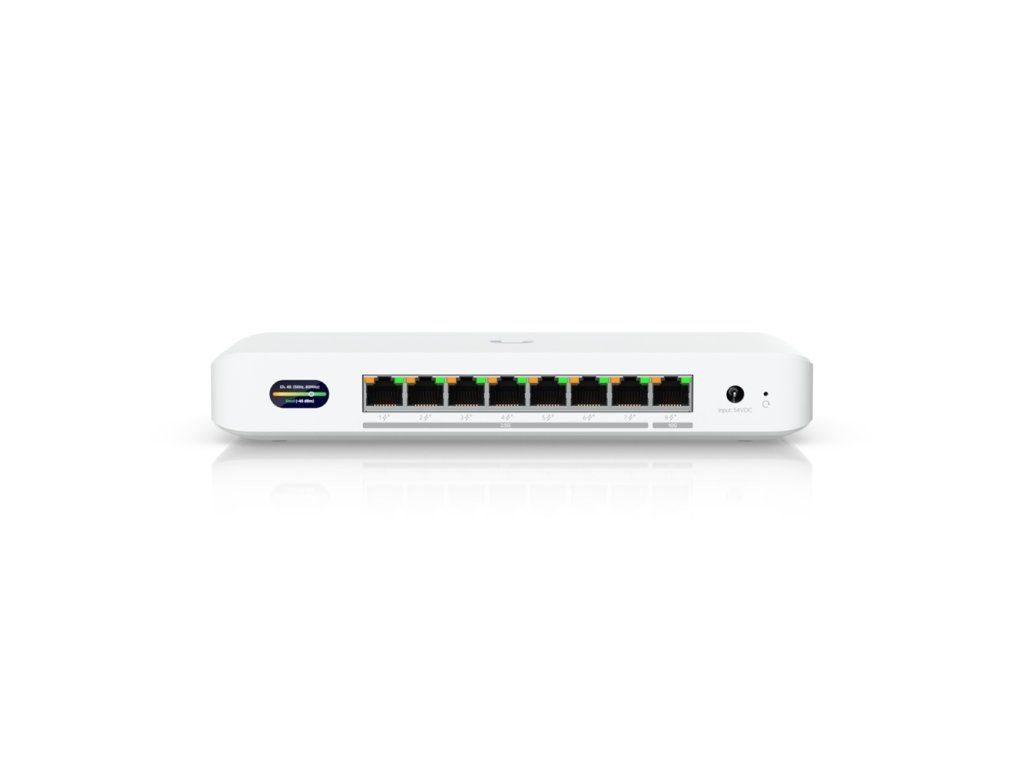

Ubiquiti UDB-Switch, UniFi 2.5G PoE switch with Wi-Fi 7 bridge

Product detailed description

The compact PoE+ switch with integrated Wi-Fi 7 bridge provides an ideal solution for fast network deployment without lengthy cabling. With UniFi WiFi Auto-Link technology, it automatically connects to UniFi access points in the 5 GHz and 6 GHz bands to provide a stable high-speed connection. Maximum data throughput of up to 5.8 Gbps in the 6 GHz band and 4.3 Gbps in the 5 GHz band enables smooth operation of modern applications, while future STR MLO support will further increase network capacity and resilience by simultaneously aggregating both bands. Fully featured PoE+ switch for modern network environments For connecting endpoint devices, the switch offers one 10GbE uplink and seven 2.5GbE ports, enabling a flexible and high-speed internal infrastructure. All eight ports support PoE+ with up to 30W per port. In the base configuration, it provides 35W of total PoE power, which can be increased to 185W with an optional 210W adapter-ideal for powering more demanding devices such as cameras, sensors, or access points. With full VLAN support and management via UniFi Network, the user gains clear control over the entire network. Wide deployment options and professional management The compact design allows for both desktop and wall mounting, and the device is complemented by a 0.96" status display for quick reference of network status. An operating range of -30 to +40 °C ensures reliability even in harsh conditions. The integrated Wi-Fi 7 bridge not only functions as a wireless link, but when connected to a wired uplink, the device can also function as a standard wired switch. The combination of high performance, advanced features and compact design makes it a solution that covers the needs of modern businesses, smart homes and professional installations. Key Features - Integrated Wi-Fi 7 bridge with UniFi WiFi Auto-Link for automatic wireless connectivity. - Future STR MLO support for simultaneous aggregation of 5GHz and 6GHz bands. - 1× 10GbE uplink and 7× 2.5GbE ports with full PoE+ support (30W per port). - Total PoE power of 35W (60W adapter) or up to 185W (optional 210W adapter). - Wi-Fi 7 speeds up to 5.8 Gbps (6 GHz) and 4.3 Gbps (5 GHz). - VLAN support and management via UniFi Network. - Compact design with desk or wall mount and 0.96" status display. - Operating temperature -30 to +40 °C. Package contents - Device - 54V DC/1.1A (60W) power adapter - Mounting bracket
