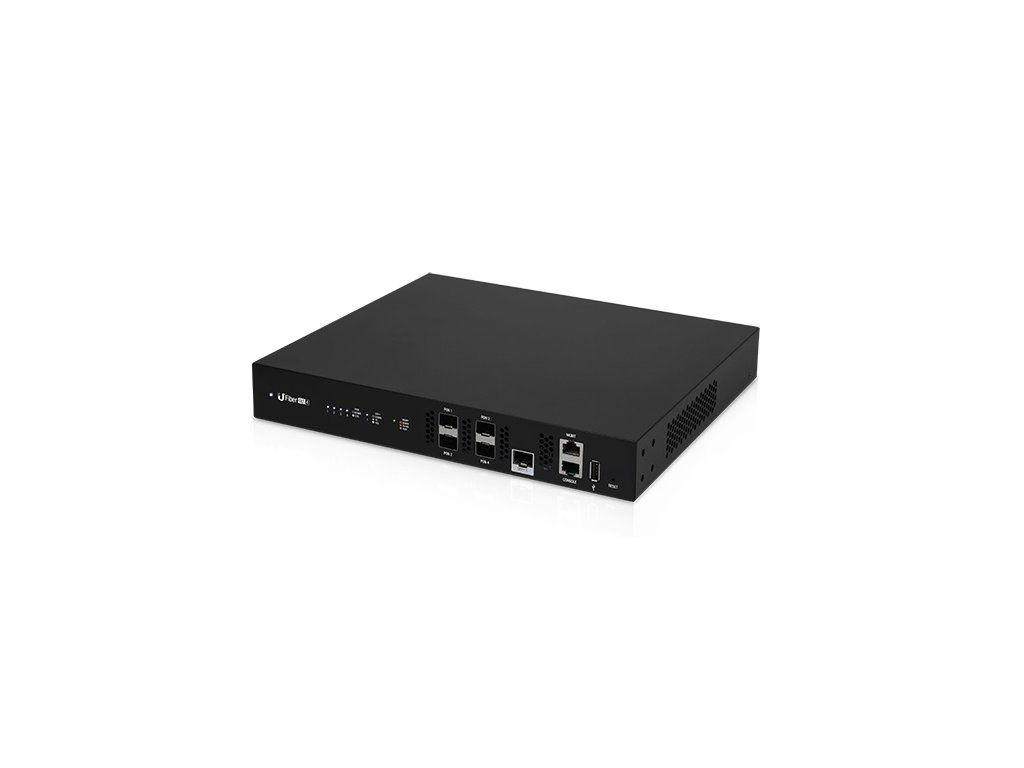

Ubiquiti UF-OLT-4 - U Fiber OLT, 4x GPON

Product detailed description

UFiber OLT 4 offers 4 GPON ports and supports up to 128 clients per port, for a total of up to 512 concurrent clients with physical links up to 20 km. In terms of connectors, in addition to 4 GPON ports, the UF-OLT-4 also has 1 SFP+ port with 1/10G speed, one management-only Ethernet port, and one console port. Management Management of OLT units has never been easier! The device itself has a web interface where you can see which units are currently connected, upgrade firmware in bulk, etc. The biggest advantage, however, is the central management using UNMS (Ubiquiti Network Management System) software. UNMS is a comprehensive management not only for OLT and their clients but also for any units from Ubiquiti Networks portfolio such as airMAX, UniFi, EdgeRouter, EdgePoint, EdgeMax and others... For more information on support, please visit unms.com. The controller can be downloaded and installed on Linux. The cloud solution is not yet supported, however it is possible to rent a hosted solution. Package contents: - Device - GPON SFP module (UF-GP-B+) - Power cable - Accessories for mounting in a 19" 1U rack Technical parameters Physical characteristics Reset buttons Operating temperature [°C]: -10 to 45 Depth [mm]: 259 Width [mm]: 300 Height [mm]: 42 Connectors and interfaces Serial port: RJ45 LAN speeds: (1) 10/100Mbps (management) Number of GPON SFP ports: 4 SFP/SFP+ speeds: (1) 1/10Gbps Power Max. power consumption [W]: 35 Power supply via plug/socket: 230V AC Optics Receiving sensitivity [dBm]: -8 to -28 Transmitting power [dBm]: 1.5 to 5 Transmission Rate: 1.244 / 2.488 Gbps Wavelength - Tx/Rx [nm]: 1490 / 1310 Range [km]: 20
