Ubiquiti Wave-AP, UISP Wave Access Point

Product detailed description

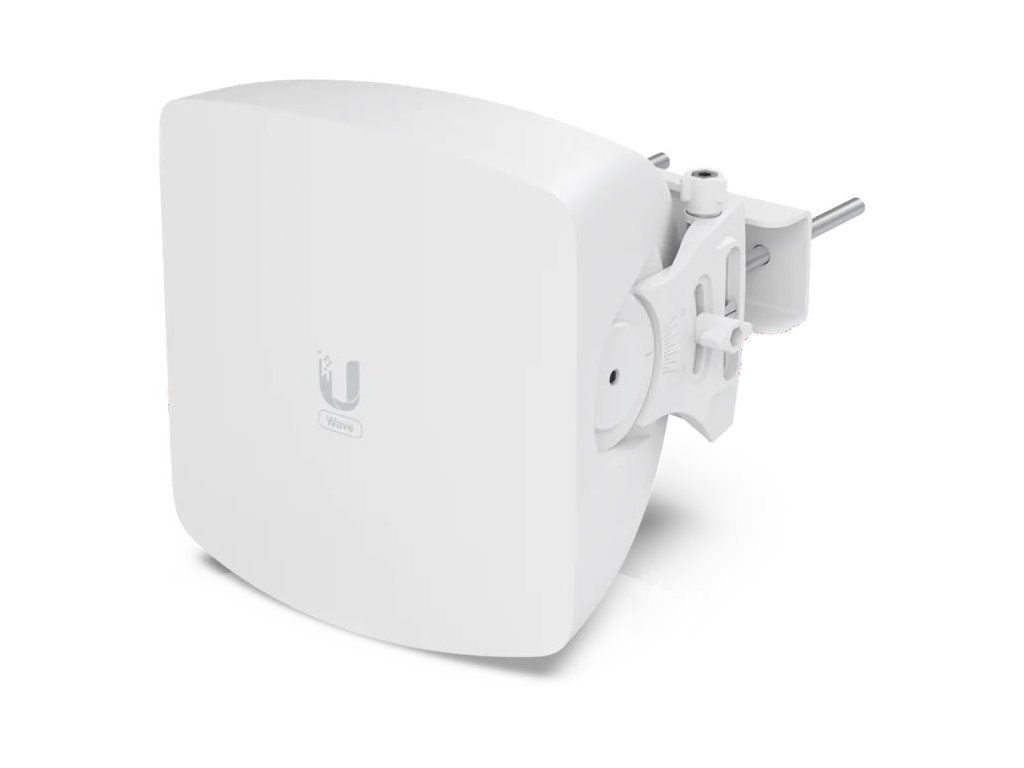

The Wave Access Point is a 60GHz point-to-multipoint (PtMP) transceiver with built-in 5 GHz backup (WiFi 6 - 802.11ax) from Ubiquiti Networks with a range of up to 8 km against the Wave LR or 5 km against the smaller Wave Nano unit, and is ideal for ISPs. The very discreet device also features integrated GPS, Bluetooth for easy initial setup from a mobile phone via the UISP mobile app, a 2.5 Gigabit LAN port with PoE support and an SFP+ port. The LAN port is only functional if the SFP+ port is not used. The device supports bridge mode only and supports both 1080 and 2160 MHz channel width in the 60GHz spectrum. The manufacturer's stated maximum throughput at 16 QAM is 5.4 Gbps (2.7 Gbps full duplex). Key Features Compact size - 212 × 205 × 187 mm Low-interference 60 GHz spectrum - 57 to 71 GHz Range up to 8 km, supporting up to 15 clients Throughput of 5.4 Gbps (2.7 Gbps FD) Supports half channel width for longer distance or higher availability in poor weather Supported Channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz-depends on application location 2.5 Gigabit LAN port with passive PoE support (24 or 48V DC) + (1) SFP+ (1/10 Gbps) Built-in GPS Setup via web management and bluetooth - UISP mobile app Legislation in the Czech Republic The installation and operation of the linker must be carried out in accordance with the applicable general authorization. The Wave-AP is certified according to ETSI EN 302 567 for outdoor use and intended as a transmitter in point-to-multipoint installations. According to the written statement of the CTU, the operation of these devices is possible according to VO-R/12, line d3 of table (b) technical characteristics of stations. The frequency band limitation for use is 57-66GHz. Before putting the link into operation, it must first be registered on the 60ghz.ctu.cz portal in accordance with VO-R/12. Contents of the package - Device - Holder with fine tuning - 48 V/0.65 A PoE power adapter - Power cable
