Ubiquiti Wave-AP-Gen2, UISP Wave Access Point Gen2

Product detailed description

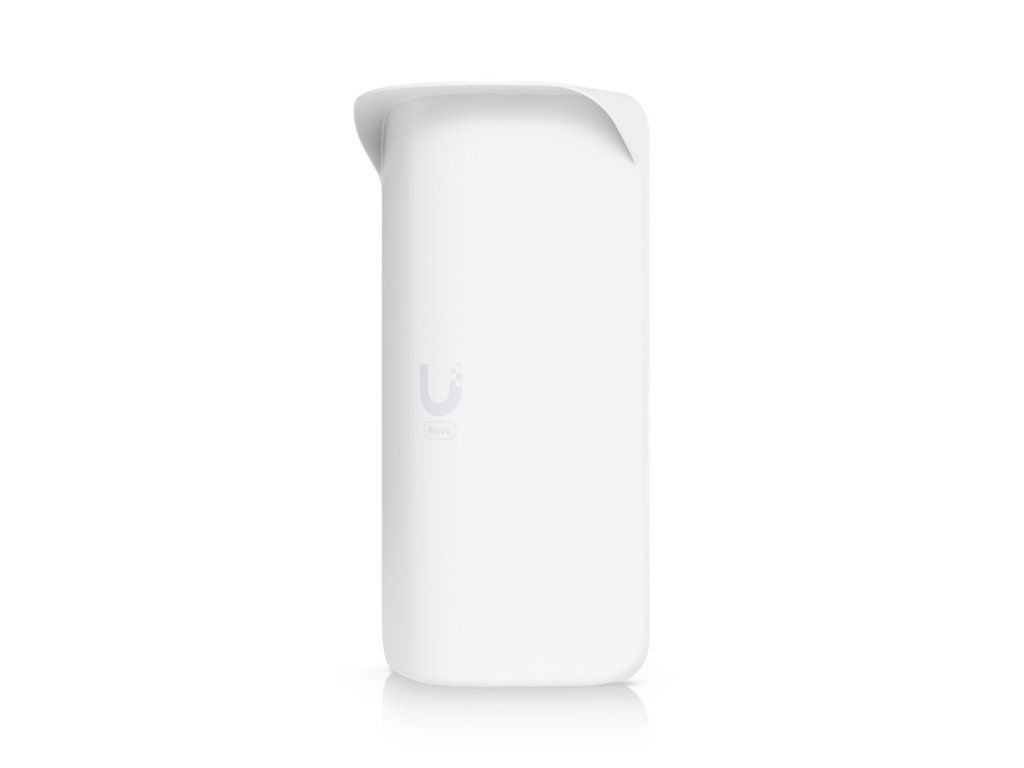

The Wave Access Point Gen2 is a 60GHz point-to-multipoint (PtMP) transceiver with built-in 5GHz backup (WiFi 6 - 802.11ax) from Ubiquiti with a range of up to 6km and is ideal for ISPs. The very discreet device also features integrated GPS, Bluetooth for easy initial setup from a mobile phone via the UISP mobile app, a 2.5 Gigabit LAN port with PoE support and an SFP+ port. The device supports bridge mode only and supports both 540. 1080 and 2160 MHz channel bandwidth in the 60GHz spectrum. The maximum total throughput claimed by the manufacturer is 5.4 Gbps (2.7 Gbps full duplex). Key Features - Compact size - 287 × 158 × 100 mm - Low-interference 60 GHz spectrum - 57 to 71 GHz - Range up to 6 km - depends on regulation in the country used, support up to 31 clients - Throughput of 5.4 Gbps (2.7 Gbps FD) - Supports both 540 and 1024 MHz channel widths for longer distance or higher availability in poor weather - Supported Channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz-depends on location of use - 2.5 Gigabit LAN port with passive PoE support (24 or 48V DC) + (1) SFP+ (1/10 Gbps) - Built-in GPS - Setup via web management and bluetooth - UISP mobile app Legislation in the Czech Republic The installation and operation of the linker must be carried out in accordance with the applicable general authorization. The Wave-AP-Gen2 is certified according to ETSI EN 302 567 and intended as an AP in point-to-multipoint installations. Operation of these devices is thus possible according to VO-R/12, line d3 of table (b) technical characteristics of stations. General authorisation No VO-R/12 Before the link can be put into operation, it must first be registered on the portal https://rlan.ctu.gov.cz/ in accordance with VO-R/12. Contents of the package - Device - Holder - 2.5G PoE adapter 48V/0.65A
