Ubiquiti Wave-Nano, UISP Wave Nano

Product detailed description

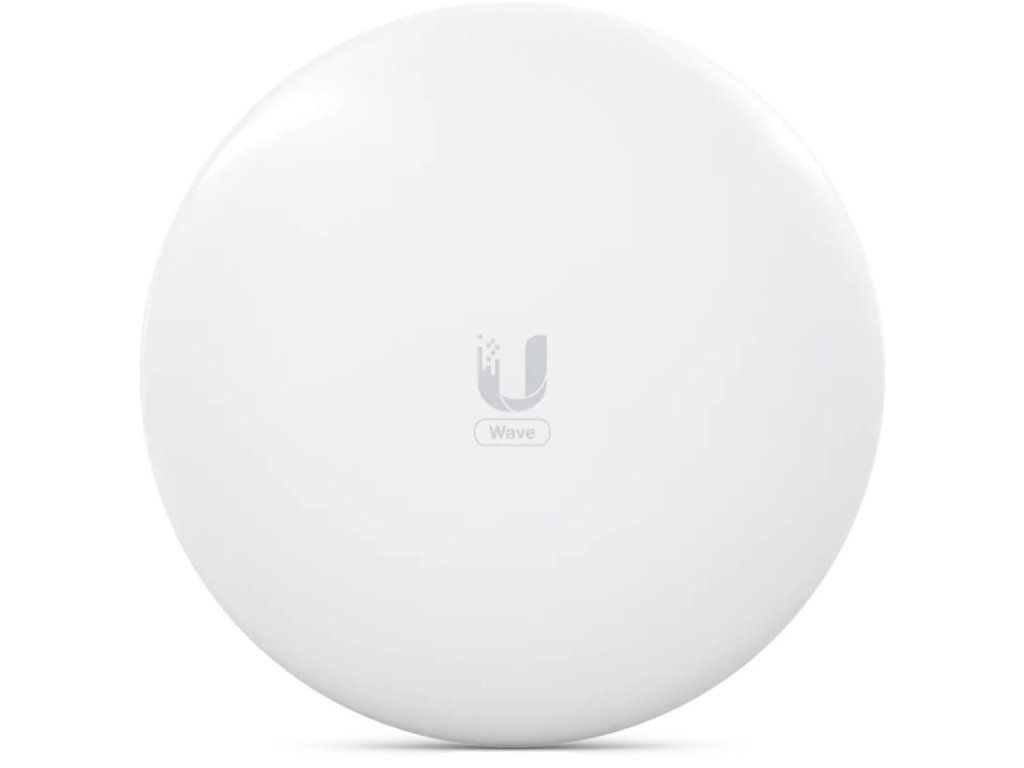

Wave-Nano is a 60 GHz point-to-multipoint (PtMP) client device with built-in 5 GHz backup (WiFi 6 - 802.11ax) from Ubiquiti Networks with a range of up to 5 km+ and is ideal for ISPs. The very compact and rugged device also features integrated GPS, Bluetooth for easy initial setup from a mobile phone via the UISP mobile app, and a Gigabit LAN port with PoE support. The device supports both bridge and NAT modes and supports both 1080 and 2160 MHz channel bandwidth in the 60GHz spectrum. The maximum throughput claimed by the manufacturer at 16 QAM is 2 Gbps (1 Gbps full duplex). Key Features Compact size - 257 × 257 × 114 mm Low-interference 60 GHz spectrum - 57 to 71 GHz Range up to 5 km+ 2 Gbps throughput (1 Gbps FD) Supports half channel width for longer distance or higher availability in poor weather Supported Channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz-depends on application location Gigabit LAN port with passive PoE support (24 or 48V DC) Built-in GPS Setup via web management and bluetooth - UISP mobile app Legislation in the Czech Republic Installation and operation of the linker must be carried out in accordance with the applicable general authorization. Wave-Nano is certified according to ETSI EN 303 722 and is intended as a client in point-to-multipoint installations. Operation of these devices is thus possible according to VO-R/12, line d4 of table b) technical characteristics of stations. Before putting the link into operation, it must first be registered on the 60ghz.ctu.cz portal in accordance with VO-R/12. Contents of the package - Device - Holder with fine tuning - 48 V/0.65 A PoE power adapter - Power cable
