Ubiquiti WM-W, WiFiMan Wizard spectrum analyzer

Product detailed description

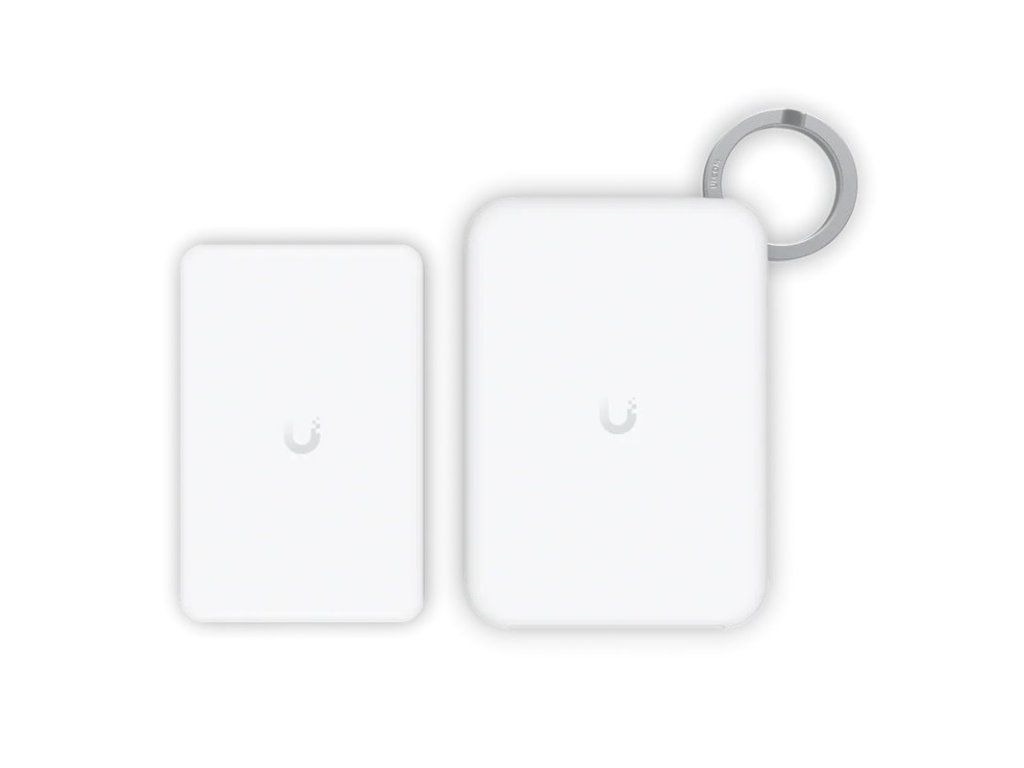

The WiFiMan Wizard is a portable spectrum analyzer designed for the WiFiMan iOS and Android mobile app with which it communicates wirelessly via Bluetooth. Together with a Lidar-equipped smartphone, it is able to project the WiFi scan onto a map generated by Lidar and your movement/walking around the building in the field. The spectrum analyzer operates in the license-free bands 2.4 - 2.5 GHz and 5.15 - 5.85 GHz with sensitivity up to -96 dBm. The device itself has an integrated 300mAh battery with a maximum battery life of 240 minutes for continuous scanning and a USB-C connector for recharging. Key Features - License-free scanning of the 2.4GHz and 5GHz bands - Battery life of 240 minutes for continuous scanning - Pairs BLE smartphone with USB-C charging port - Mag-safe iPhone support with Mag-safe cover - Works with WiFiman mobile app from version 0.18.0 for iOS and 1.15.0 for Android - Spectrum analyzer, planner and indoor frequency mapping using Lidar technology Technical parameters Wireless features Wireless frequencies: Bluetooth, 2.4 GHz, 5 GHz Power Power Type: USB-C Power supply via connector/socket: 5V/1A Physical characteristics Degree of protection: IP55 Material: Plastic Operating temperature [°C]: 0 to 40 Weight [g]: 32 Width [mm]: 51 Height [mm]: 79 Depth [mm]: 8
