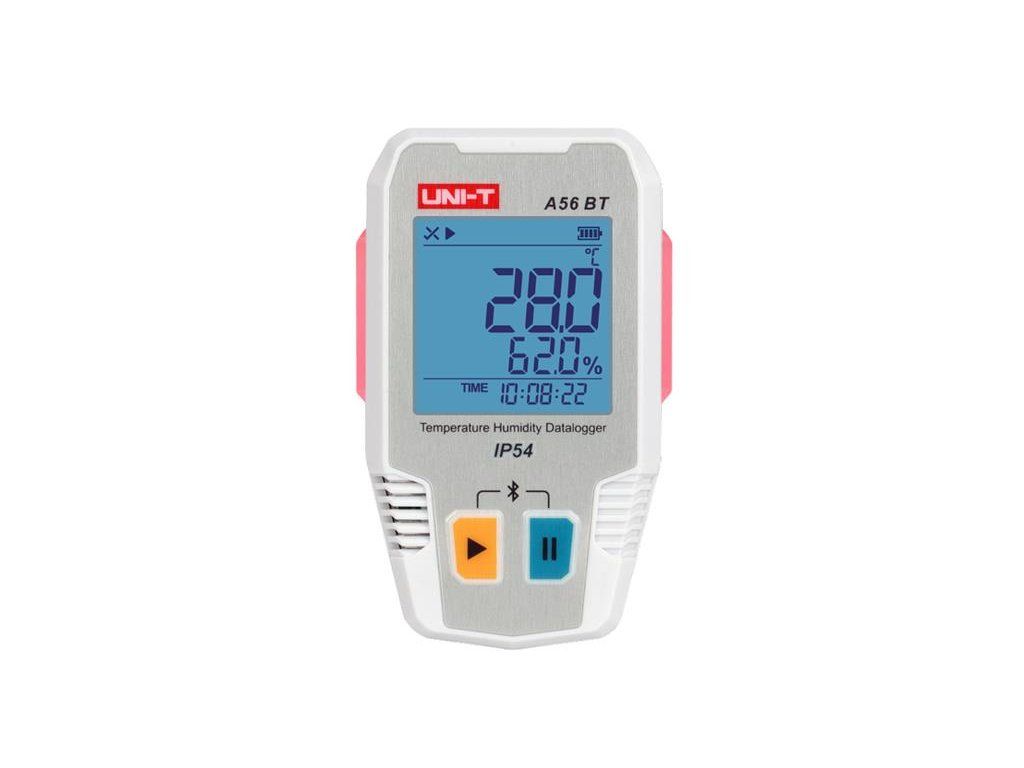

UNI-T A56 BT data logger

Product detailed description

We offer a 3-year warranty on this product.

The UNI-T A56 BT Bluetooth Temperature and Humidity Datalogger uses a high-precision digital temperature and humidity module and a low-power microprocessor as the sensor. It features high accuracy, large memory capacity, automatic recording, time display, sound and light LED alarm, very low temperature recording, etc. It also supports record editing, data viewing and PDF report export via mobile app or PC software. The datalogger meets the requirements of high-precision measurement and long-term recording of temperature and humidity under various conditions, widely used in food processing, cold chain transportation, storage, etc.


Product parameters:

- Certification:CE, RoHS
- measuring range: -40 °C ~ 85 °C
- high accuracy: ±3 °C
- bluetooth app
- pC-based analysis software
- sound and light alarm
- shorts IP54
- 64000 data storage groups
- magnetic design for wall mounting


Technical parameters:

- temperature measurement range: -40 °C ~ 85 °C
- humidity range: 0% to 100% RH

Temperature:
0 °C < t ≤ 60 °C (±0.3 °C)
-40 °C ≤ t ≤0 °C (±0.5 °C)
60 °C < t ≤ 85 °C (±0.5 °C)

Humidity:
0%≤ RH ≤90% /±2.5%RH（25℃）
90%＜ RH ≤100% /±3.5%RH（25）

- data storage: 64000 groups
- measurement : MAX, MIN, AVG
- LED indicator
- backlight
- alarm
- PC Software
- mobile apps: yes （TempLink）

- low battery indication
- recording interval: 10 s to 24h (PC/application setting)
- trigger methods: buttons / Software / Booking
- screen off time: 15 s ± 2 s (set by PC/application)
- uSB port: USB Type-C
- power supply: USB
- mounting: wall mounting or magnet
- working temperature and humidity: -40 °C to +85 °C，≤99%RH
- eMC certificate: EN 61326-1:2021, RoHSS
- iP54 protection
- power supply : Li-SOCl2 3.6V 2700mAh battery（ER14505）
- dimension: 104 × 62 × 25 mm
- weight approx. 100 g
- accessories: instructions, screws + dowels, USB cable
- standard quantity in carton: 20 pcs
