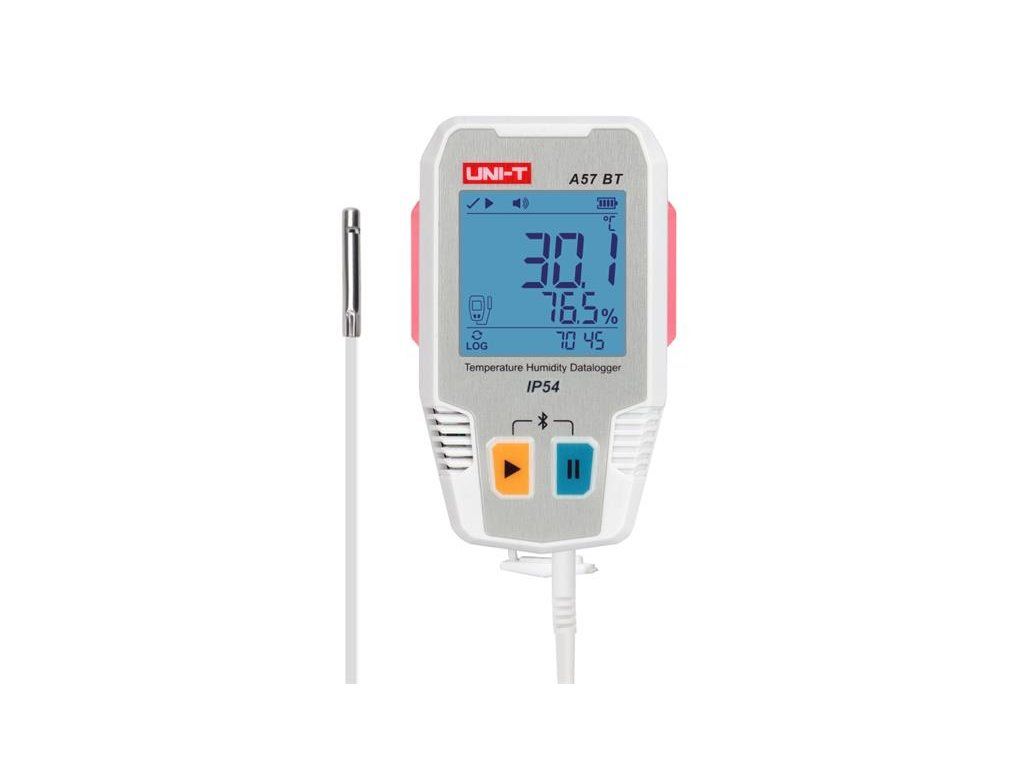

UNI-T A57 BT data logger

Product detailed description

We offer a 3-year warranty on this product.

The UNI-T A57 BT Bluetooth Temperature and Humidity Datalogger uses a high-precision digital temperature and humidity module and a low-power microprocessor as the sensor. It is equipped with an internal temperature sensor and measures temperature and humidity via external temperature probes or temperature-humidity probes. It features high accuracy, large memory capacity, automatic recording, time display, sound and light LED alarm, very low temperature recording, etc. It also supports record editing, data viewing and PDF report export via mobile app or PC software. The datalogger meets the requirements of high-precision measurement and long-term recording of temperature and humidity under various conditions, widely used in food processing, cold chain transportation, storage, etc.


Product parameters:

- Certification:CE, RoHS
- measuring range: -40 °C ~ 85 °C
- high accuracy: ±3 °C
- internal temperature sensor
- supports multiple sensors
- external temperature - humidity probe
- bluetooth app
- pC-based analysis software
- sound and light alarm
- shorts IP54
- 64000 data storage groups
- magnetic design for wall mounting


Technical parameters:

External temperature and humidity sensor:
- temperature measurement range: -40 °C ~ 85 °C
- humidity range: 0% to 100% RH
Temperature:
0°C ≤ t ≤ 60°C (±0.3°C)
-40°C ≤ t < 0°C (±0.5°C)
60°C < t ≤ 85°C (±0.5°C)
32°F ≤ t ≤ 140°F (±0.6°F)
-40°F ≤ t < 32°F (±0.9°F)
140°F < t ≤ 185°F (±0.9℉)
Humidity:
0 % ≤ RH ≤ 90 % (±2,5 % RH) (at 25 °C)
90 % < RH ≤ 100 % (±3,5 % RH) (at 25 °C)

Internal NTC temperature sensor:
- measurement range: -40°C ~ 85°C (-40°F ~ 185°F)
Temperature measurement accuracy:
0°C ≤ t ≤ 60°C (±0.4°C)
-40°C ≤ t < 0°C (±1.0°C)
60°C < t ≤ 85°C (±1.0°C)
32°F ≤ t ≤ 140°F (±0.8°F)
-40°F ≤ t < 32°F (±2.0°F)
140°F < t ≤ 185°F (±2.0°F)

External NTC temperature sensor:
- measurement range: -40°C ~ 85°C (-40°F ~ 185°F)
Temperature measurement accuracy:
-20°C ≤ t ≤ 40°C (±0.5°C)
-40°C < t <-20°C (±1.0°C)
40°C < t ≤ 85°C (±1.0°C)
-4°F ≤ t ≤ 104°F (±0.9°F)
-40°F < t <-4°F (±2.0°F)
104°F < t ≤ 185°F (±2.0°F)


Temperature/Humidity Resolution: 0.1°C (0.1°F)/0.1% RH
- data storage: 64000 groups
- measurement : MAX, MIN, AVG
- LED indicator
- backlight
- alarm
- PC Software
- mobile app support: yes
- low battery indication
- switching units: °C / °F
- adjustable recording interval: 10 s - 24 h (set via PC/App)
- triggering methods: buttons / Software / Timer
- automatic display shutdown: 15 s ±2 s (adjustable via PC/App)
- uSB port: USB Type-C
- power supply: USB
- mounting: wall mounting or magnet
- working temperature and humidity: -40 °C to +85 °C，≤99%RH
- storage temperature: -40°C ~ +85°C (without battery)
- iP54 protection
- power supply : Li-SOCl2 3.6V 2700mAh battery（ER14505）
- dimension: 104 × 62 × 25 mm
- weight approx. 110 g
- accessories: instructions, screws + dowels, USB cable
- standard quantity in carton: 20 pcs
